  • Page 1 Kit Instructions Basket Shelf (Scantop) 7360-K501 Issue A...
  • Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
  • Page 3 Revision Record Issue Date Remarks Mar 2022 First issue.

  • Page 4: Kit Contents

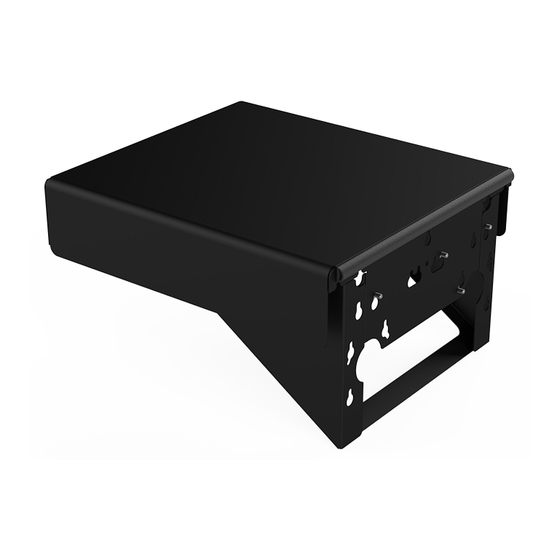

    This publication provides procedures for installing the Basket Shelf (Scantop) to a SCO 6 Modular Full Function (7360) unit. Kit Contents Part Number Description 497-0532731 7360-K501 Input Shelf (Scantop) 006-8628189 Modular Full Function Input Shelf Filler Gasket 006-8626419 Screw, M6 x 1 x 10 mm, Phillips Pan Head, Zinc Plated (4 pcs)

  • Page 5: Installation Procedures

    7360-K501 Basket Shelf (Scantop) Installation Procedures The Basket Shelf (Scantop) can be installed on a SCO 6 Modular Full Function (7360) unit with or without a Power Pole Cover. For more information, refer to either of the following sections: •...
  • Page 6 7360-K501 Basket Shelf (Scantop) Installing the Basket Shelf (Scantop) on unit (no Power Pole Cover) To install the Basket Shelf (Scantop) on the SelfServ Checkout unit without a Power Pole Cover, follow these steps: Note: The Basket Shelf can be installed on either a Left-hand (LH) unit or a Right-hand (RH) unit.
  • Page 7 7360-K501 Basket Shelf (Scantop) 2. Insert three (3) M6 screws into the side of the Core Cabinet as an alignment guide. Leave at least ¼ inch of the screw threads visible. 3. Align the Basket Shelf over the alignment screws and then slide the shelf down onto...
  • Page 8 7360-K501 Basket Shelf (Scantop) 4. Insert one (1) screw as shown in the image below. 5. Tighten all four (4) M6 screws to secure the Basket Shelf to the unit.
  • Page 9 7360-K501 Basket Shelf (Scantop) Installing the Basket Shelf (Scantop) on unit (with Power Pole Cover) To install the Basket Shelf (Scantop) on the SelfServ Checkout unit with a Power Pole Cover, follow these steps: Note: The Basket Shelf can be installed on either a Left-hand (LH) unit or a Right-hand (RH) unit.
  • Page 10 7360-K501 Basket Shelf (Scantop) 2. Insert two (2) M6 screws into the side of the Core Cabinet as an alignment guide. Leave at least ¼ inch of the screw threads visible. 3. Align the Basket Shelf over the alignment screws and then slide the shelf down onto...
  • Page 11 7360-K501 Basket Shelf (Scantop) 4. Insert two (2) M6 screws as shown in the image below. 5. Tighten all four (4) M6 screws to secure the Basket Shelf to the unit.
