KIT  INSTRUCTIONS

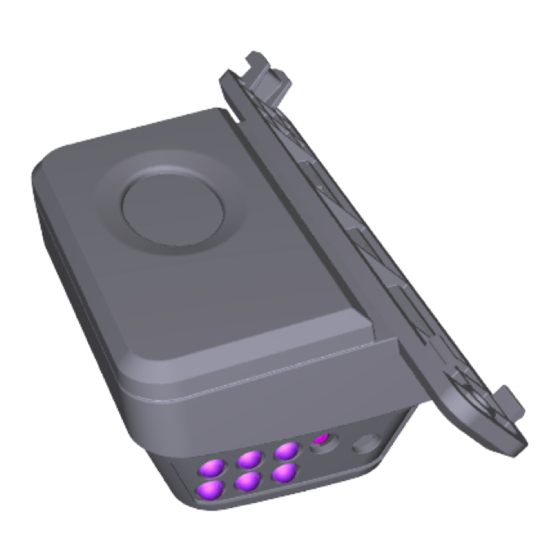

UV  Light with Top Blank
Release 1.0
7761-K153
Issue A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7761-K153 and is the answer not in the manual?

Questions and answers

Summary of Contents for NCR 7761-K153

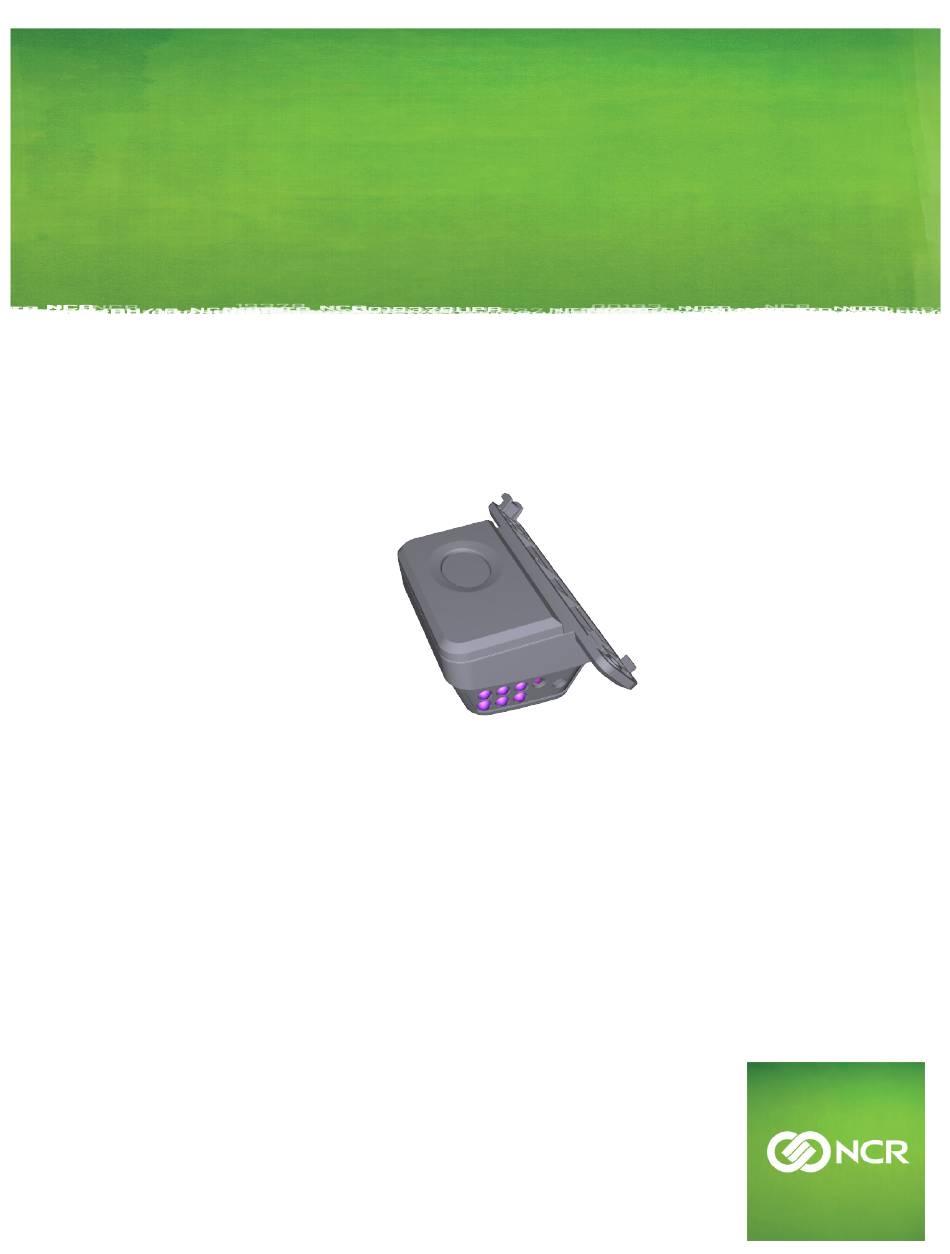

  • Page 1 KIT  INSTRUCTIONS UV  Light with Top Blank Release 1.0 7761-K153 Issue A...
  • Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
  • Page 3 Revision Record Issue Date Remarks Jun 2016 First Issue...
  • Page 4 UV  Light with Top Blank Introduction This kit provides the components to add a UV Light with Top Blank.
  • Page 5 7761-K153 (UV Light with Top Blank) Installation Procedure 1. Remove the Blank Plate from the back housing. 2. Plug in the UV light cable into the extension cable. Gently push cables into rear housing.
  • Page 6 7761-K153 (UV Light with Top Blank) 3. Hook the UV light module into housing and snap into place. 4. Secure module with screw (1).
