Assembly Instruction
ITEM# L-GZ288PST-4D

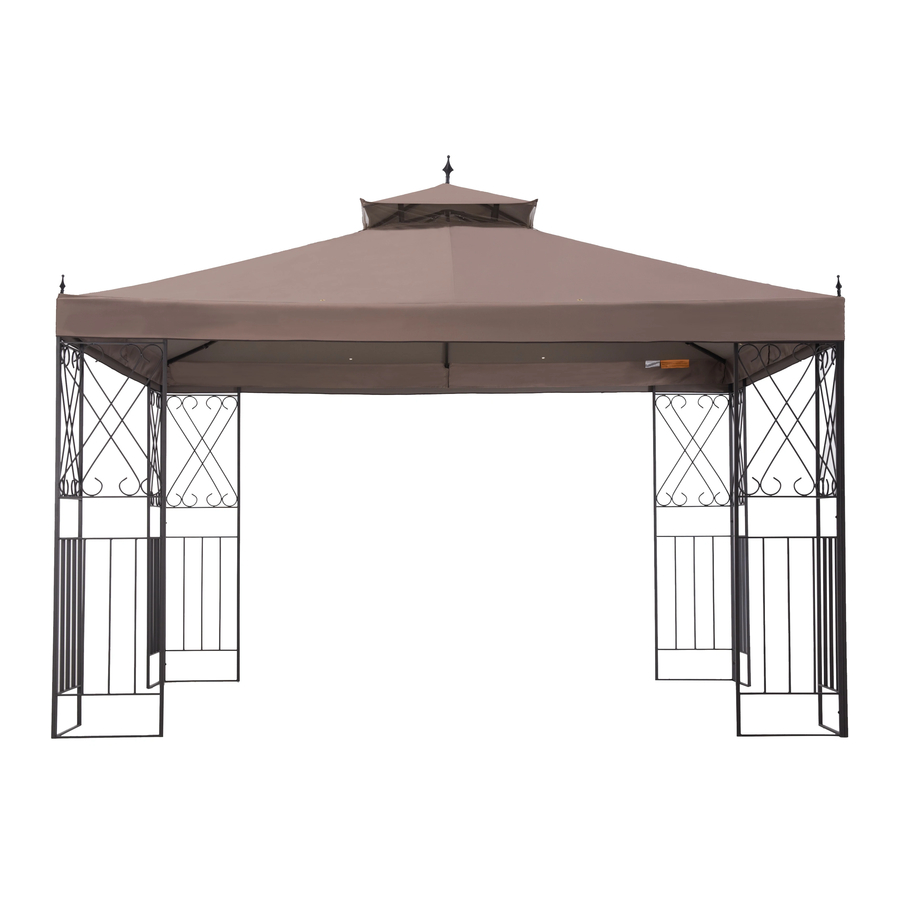

Classic Scroll Gazebo
IMPORTANT:
Please read and follow all safety statements, warnings, assembly instructions, use & care directions, before
attempting to assemble.
WARNINGS:
1. Assembly Instructions must be followed.
2. Pegs supplied must be used to hold this gazebo in place when upright.
3. Warranty does not cover damage due to extreme weather conditions.
4. Do not use candles, matches or open flames of any kind in or near a tent.
5. Do not cook inside the tent.
6. Build campfires downwind and several meters away from a tent and be sure to fully extinguish campfires
before leaving a campsite or before retiring for the night.
Advertisement
Table of Contents
Related Manuals for Sunjoy L-GZ288PST-4D
Summary of Contents for Sunjoy L-GZ288PST-4D
- Page 1 Assembly Instruction ITEM# L-GZ288PST-4D Classic Scroll Gazebo IMPORTANT: Please read and follow all safety statements, warnings, assembly instructions, use & care directions, before attempting to assemble. WARNINGS: 1. Assembly Instructions must be followed. 2. Pegs supplied must be used to hold this gazebo in place when upright.
- Page 2 7. Exercise extreme caution when using fuel-powered lanterns or heaters inside a tent and use battery-operated lanterns whenever possible. 8. Do not refuel lamps, heaters or stoves inside a tent. 9. Extinguish or turn off all lanterns before going to sleep. 10.

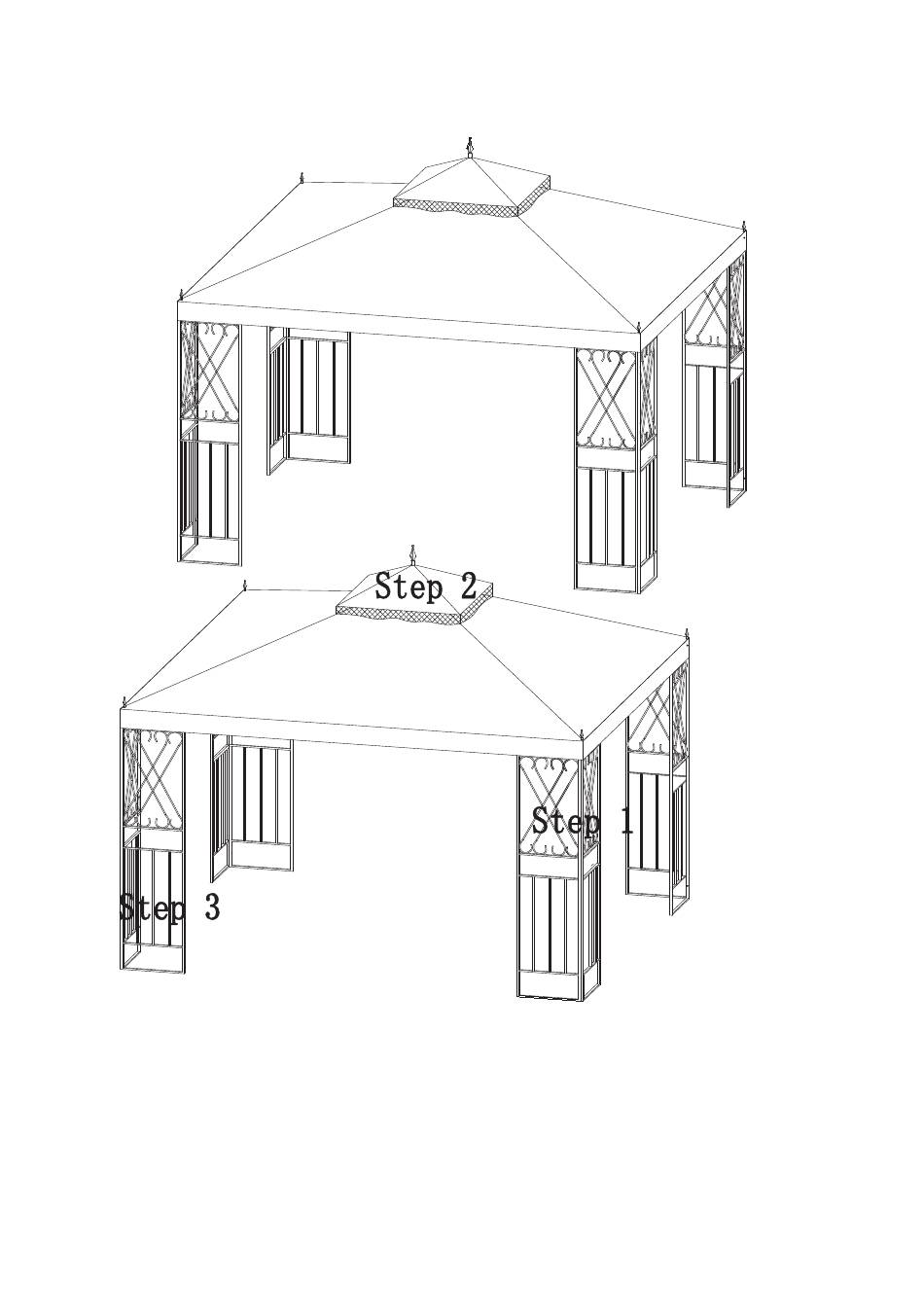

- Page 3 Hardware Pack used in Step 1 M6X15 Bolt 8PCS M6X32 Bolt 28PCS M6 Flat Washer 52PCS M6 Wrench 2PCS M6 Nut 16PCS...
- Page 4 Fig.1： Use Bolt (BB) and Flat Washer (CC) to fix Panel (B) and Panel (A). Fig.2： Insert Long side support pole (D) into pole (E), attach pole (D) and (E) by using Bolt (AA) and Flat Washer (CC). Fig.3： Attach Pole C&D&E to Panel (A) and Panel (B) by using Bolt (BB) and Flat Washer (CC). Hardware Pack used in Step 2 M6X15 Bolt 4 PCS...
- Page 5 Fig.7：Insert Pole (G&H) into Center connector (J). Fig.8：Fix Pole (G) to Short side Support Pole (C) and Fix Pole (H) to Long side Support Poles (D&E). Put Big Canopy (Q) onto the Big Top, do not fully spread. Fig.9：Insert Pole (I) into Center Connector (K). Fig.10：Fix Pole (I) to Pole (F) by using by Bolt (BB), Flat Washer (CC) and Nut (HH) Hardware Pack used in Step 3 16 PCS...
- Page 6 Fig.11：Put Small Canopy (R) to small top, put Centre Finial (O) to small top connector. Put fully spread Big Canopy (Q) to the big top, screw Corner Finial (P) into four corner on the big top. Fig.12： Fix the completely assembled gazebo by Stake (EE). USE &...
