IMPORTANT:
Please read and follow all safety statements, warnings, assembly instructions, use & care directions, before
attempting to assemble
1. When installing and assembling your gazebo, it is recommended that 4 or more adults are involved.
2. Do not use the unit during an electrical storm, as there is a remote chance of getting struck by lightning.
3. Do not climb on top of the gazebo. Falling off the gazebo can result in serious injury, possibly even death.
4. Do not leave the gazebo assembled when there is a risk of high wind, as possible damage will occur to the
structure.
5. Never barbecue under this gazebo or use lanterns that contain open flames.
6. This package contains small items and plastic bags that should be kept away from children.
7. Insure that all connectors & poles are firmly secured in position fully. It is important to do so before use so
as to avoid collapsing or damage to the item, which could result in injury.
Tools required: ladder, hammer screwdriver (not included).
Assembly Instructions
ITEM# L-GZ215PST-1E

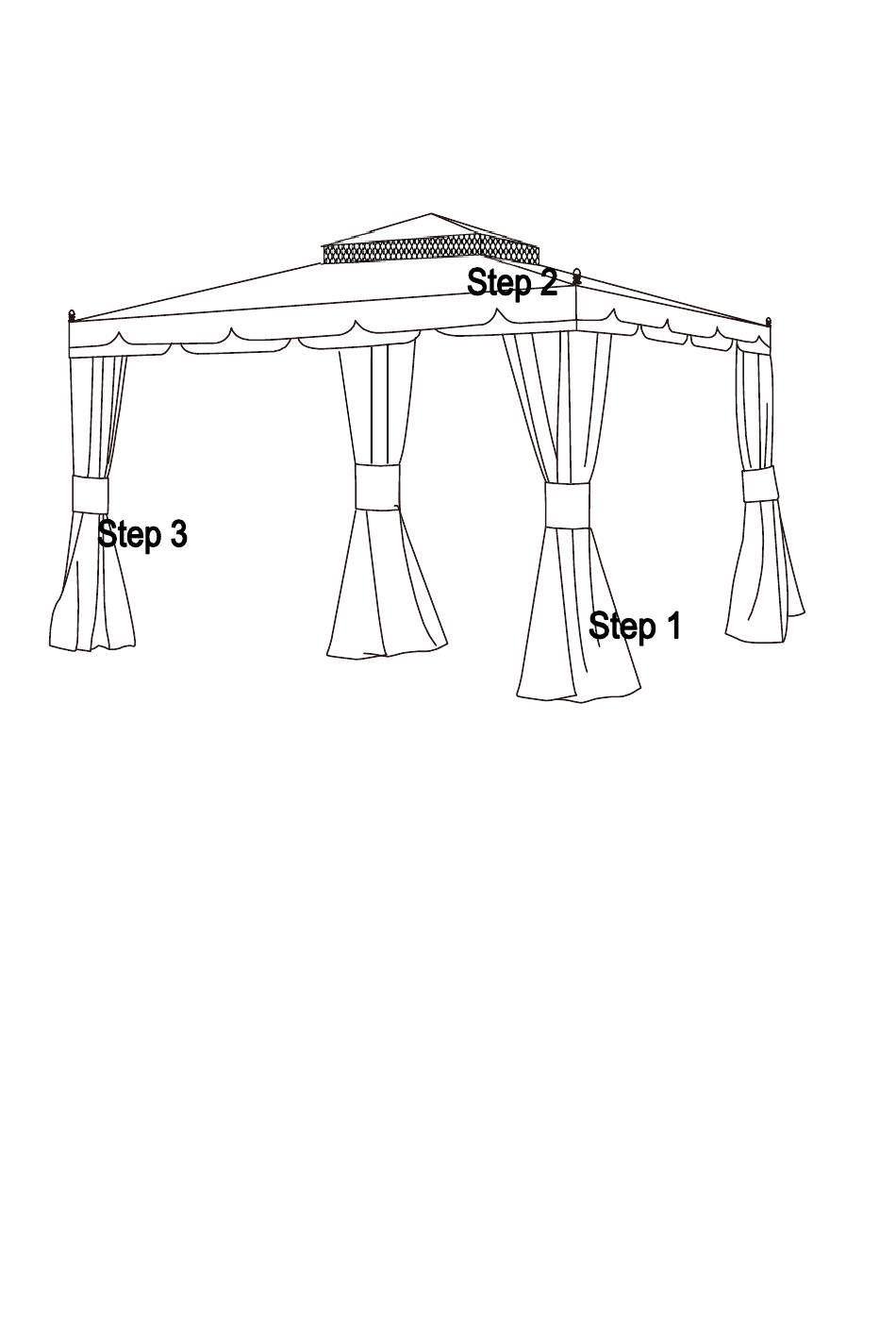

10'x12' Benen Gazebo
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the L-GZ215PST-1E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sunjoy L-GZ215PST-1E

  • Page 1 Assembly Instructions ITEM# L-GZ215PST-1E 10’x12’ Benen Gazebo IMPORTANT: Please read and follow all safety statements, warnings, assembly instructions, use & care directions, before attempting to assemble 1. When installing and assembling your gazebo, it is recommended that 4 or more adults are involved.
  • Page 2 Parts List Post Base Base cover Short beam (1) Short beam (2) Long beam (1) Long beam (2) Connecting slice Corner Connector Short side connector Long side connector Big top pole Short side pole Long side pole Long mosquito pipe Short mosquito pipe Big top connector Small top connector...
  • Page 3: Parts List

    Parts List Small top canopy Big top canopy Wall Hardware Used in Step 1 M6X15 (Bolt) 48 PCS M6 (Washer) 72 PCS M6X15 (Bolt) 24 PCS M6 (Wrench) 1 PC...
  • Page 4 Fig.1: Put the base cover C on the top of post A, then use bolt (AA) and wash (BB) to connect the base (B) and post A. Note: Make sure the slots on C and A are at the same side. Fig.2: Connect the beam F (D)and beam G(E), by using the bolt (CC) and washer (BB).
  • Page 5 Fig.6: Fix the corner connector (I ) on the top of the post (A), tighten with bolt (AA) and washer (BB). Fig.7: Fix the hook (U) onto the big top connector (Q), then insert the big top beam (L), long side beam (N), short side beam (M) into Big top connector (Q).
  • Page 6 Fig.11: Install the small canopy (V) and tie up the strap. spread the big canopy (W) and fix the hooks on the canopy. Fig.12: Put the decor (T) onto top of post. Fig.13: Use plastic ring (GG) to hang the wall (X) onto pipes which under the beam.
  • Page 7: Extra Parts

    Extra Parts Electrical cord tie 6 PCS Note: Please keep these extra parts since they are not covered in product warranty. Use these extra parts to fasten the electrical cord with the top beam if a light is used. USE & CARE: 1.
  • Page 8: Instructions De Montage

    Instructions de Montage Article numéro L-GZ215PST-1E Belvédère Benen de 10’x12’ AVERTISSEMENT: Veuillez lire et suivre tous les avis de sécurité, les avertissements, les instructions de montage, les indications d’emploi et d’entretien, avant d’essayer de monter. 1. Pendant l’installation et le montage de votre belvédère, nous recommandons l’aide de 4 adultes ou plus.
  • Page 9: Liste De Pièces

    Liste de Pièces Poteau Base Couvercle de Base Barre courte (1) Barre courte (2) Barre longue (1) Barre longue (2) Tringle de connexion Connexion de coin Connexion du coté court Connexion du coté long Poteau grand Supérieur Poteau du coté court Poteau du coté...
  • Page 10 Liste de Pièces Auvent du petit toit Auvent du grand toit Paroi Quincaillerie utilisé à l'étape 1 (Vis) M6X15 48 Pieces (Rondelle) M6 72 Pieces (Boulon) M6X15 24 Pieces (Clé) M6 1 Piece ÉTAPE 1...
  • Page 11 Fig.1: Places le couvercle de la base C sur le Poteau A, ensuite utilisez la vis (AA) et la rondelle (BB) pour connecter la base (B) et le poteau A. Note: Assurez-vous que les rainures de C1, A1 sont du même côté. Fig.2: Connectez la barre F (D) et la barre G(E), avec le boulon (CC) et la rondelle (BB).
  • Page 12 Fig.6: Fixez la connexion centrale (I) sur le poteau supérieur (A), avec la vis (AA) et la rondelle (BB). Fig.7: Fixez le crochet du pot (U) sur la connexion du grand toit (Q), ensuite introduisez la barre du toit grand (L), la barre latérale longue (N), la barre latérale courte (M) dans la connexion du grand toit (Q).
  • Page 13 Fig.11: Étendez le grand auvent (W) et fixez les crochets sur l’auvent. Fig.12: Placez l’ornement (T) sur l’extrémité du poteau. Fig.13: Utilisez l’anneau en plastique (GG) pour l’accrocher aux parois (X) sur les tubes qui sont sous la barre. Fig.14: Élevez la base C, avec les clous (FF) pour fixer le belvédère.
  • Page 14 Pièces supplémentaires Fixation du câble électrique 6 Pièces Note: Veuillez gardez ces pièces supplémentaires puisqu’elles ne sont pas couvertes par la garantie du produit. Utilisez ces pièces supplémentaires pour attacher le câble électrique au poteau si vous utilisez une lampe. EMPLOI ET ENTRETIEN: 1.
