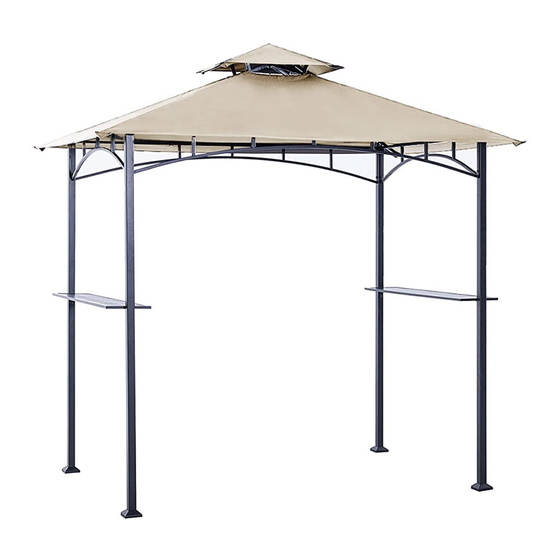

Sunjoy L-GZ238PST-11C Sylvan Grill Gazebo
Owner's Manual
IMPORTANT
Thank you very much for choosing Sunjoy Industries.
Please take time to read these instructions thoroughly and follow each step carefully for safe and easy
operation. Keep this manual for future reference.
We would like to hear from you with any comments or suggestions. You can call us toll-free at
1-866-578-6569
from 8:00 a.m. EST to 8:00 p.m. PST. You can also send the email to
amazon@sunjoygroup.com
or visit
www.sunjoyonline.com
to get tech. assistance or to place your
replacement part order form.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L-GZ238PST-11C and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunjoy L-GZ238PST-11C

  • Page 1 Sunjoy L-GZ238PST-11C Sylvan Grill Gazebo Owner’s Manual IMPORTANT Thank you very much for choosing Sunjoy Industries. Please take time to read these instructions thoroughly and follow each step carefully for safe and easy operation. Keep this manual for future reference.
  • Page 2 Cautions: 1. Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area of gazebo construction. 2. Do not assemble this item alone. Two people are recommended for safe assembly. 3.
  • Page 3 Parts List Name Image Post 1 Post 2 Base Base Cover Big Top Beam Small Top Connector Big Top Connector Small Top Beam Long Screen Short Screen Table Top Hook Tooling Hook Small Top Canopy Big Top Canopy...
  • Page 4 Hardware Pack 1 M6x15 Bolt 8 PCS M6 Flat Washer 32 PCS M6x20 Bolt 16 PCS M6x35 Bolt 4 PCS M6 Nut 4 PCS M6 Wrench 1 PC...
  • Page 5 Fig.1: Cover the Base Cover (C) to Post 1&2 (A1&A2). Assemble Base (B) to Post 1&2 (A1&A2) by Bolt (AA) and Flat Washer (BB). Fig.2: Assemble Long Screen (H) and Short Screen (I) to Post 1&2 (A1&A2) by Bolt (CC) and Flat Washer (BB).
  • Page 6 Fig.8: Spread Big Top Canopy (N), buckle the 4 corners of Big Top Beam (D). Fig.9: Insert the connection strap of Table Top (J) to the “U” shape slice of Post, use Bolt (CC) and Flat Washer (BB) to lock tightly. Fig.10: Assemble Tooling Hook (L) to Table top (J) by Bolt (AA) and Flat Washer (BB).
  • Page 7 Care & Maintenance: Our steel components for garden accessories and furniture are treated with rust inhibiting paint that protects it from rusting. However, due to the nature of steel, surface oxidation (rusting) will occur once these protective coatings are scratched. This is not a defect and thus not covered by the warranty. To minimize this condition, we recommend care when assembling &...
