Assembly Intruction

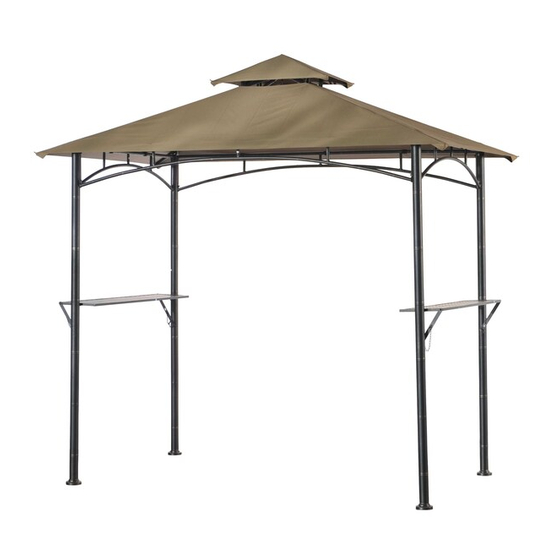

Item: L-GZ238PST-11A
IMPORTANT:
Please read and follow all safety statements, warnings, assembly instructions, use & care directions before
attempting to assemble.
1. When installing and assembling your gazebo, it is recommended that 2 or more adults are involved.
2. Do not use the unit during an electrical storm, as there is a remote chance of getting struck by lightening.
3. Do not climb on top of the gazebo. Falling off the gazebo can result in serious injury, possibly even death.
4. Do not leave the gazebo assembled when there is a risk of high wind, as possible damage will occur to the
structure.
5. Never barbecue under this gazebo or use lanterns that contain naked flames.
6. This package contains small items and plastic bags that should be kept away from children.
7. Ensure that all connectors & poles are firmly secured in position fully. It is important to do so before use so
as to avoid collapsing or damage to the item, which could result in injury.
8. WARNING: Keep flame and heat sources away from the gazebo fabric. The fabric may burn if it is exposed
Advertisement
Table of Contents
Related Manuals for Sunjoy L-GZ238PST-11A
Summary of Contents for Sunjoy L-GZ238PST-11A
- Page 1 Assembly Intruction Item: L-GZ238PST-11A IMPORTANT: Please read and follow all safety statements, warnings, assembly instructions, use & care directions before attempting to assemble. 1. When installing and assembling your gazebo, it is recommended that 2 or more adults are involved.
- Page 2 to prolonged contact with a source of heat. The application of any foreign substance to the gazebo fabric may render the flame-resistant properties ineffective. Tools required: Ladder, Hammer Screwdriver (not included)
- Page 3 Parts List Pole 1 Pole 2 Long screen Small screen Corner top beam Big top connector Small top connector Small top bar Shelf Supporter Hook Small canopy Big canopy...
- Page 4 Hardware Pack 1 M6X20 Bolt 16 PCS M6 Flat washer 28 PCS M6X40 Bolt 8 PCS M6 Nut 8 PCS M6 Wrench 1 PC Fig.1: Attach Screen C (B) to Pole A1 (A2) by Bolt (AA) and Flat washer (BB). Fig.2: Attach Hook (J) to Big top connector (E).
- Page 5 Hardware Pack 2 M6X20 Bolt 8 PCS M6 Flat washer 8 PCS Φ8X180MM Stake 12 PCS Touch-paint 1PCS Fig.6: Attach Supporter (I) to Shelf (H) by Bolt (EE) and Flat washer (BB). Fig.7: Attach Shelf (H to Pole A1 (A2) by EE and Flat washer (BB). Fig.8: Fix Supporter (I) to Pole A1 (A2), then insert the pin on the pole into the hole at the end of the Supporter (I).
- Page 6 3. Warranty does not cover damage due to extreme weather conditions. CUSTOMER SERVICE Sunjoy Industries warrants to the original purchaser that this item is free from defects in workmanship and materials of your item provided the item was factory-sealed at the time of purchase and is maintained with care and used only for personal, residential purposes.
