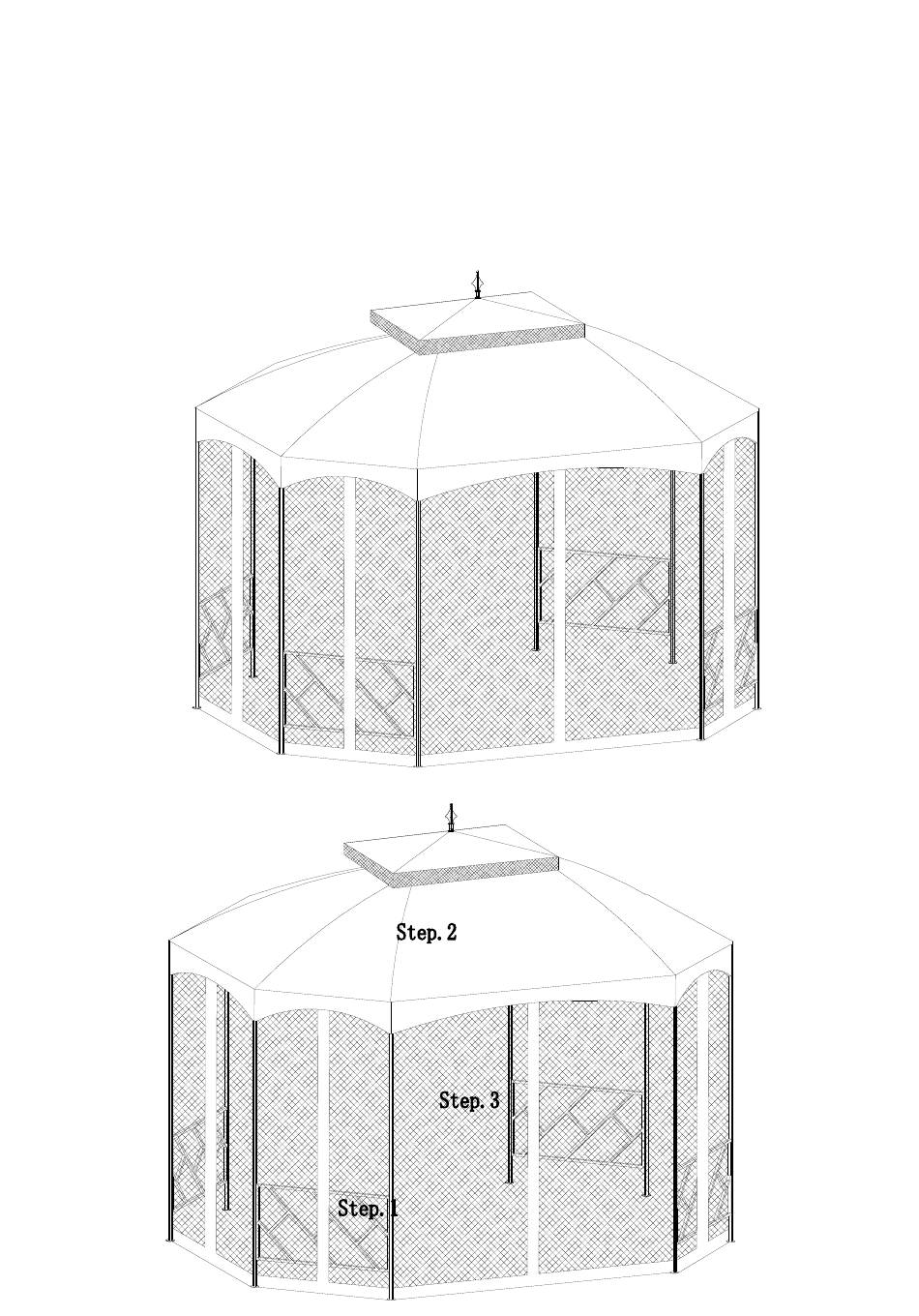

- Page 1 Assembly Instruction ITEM# L-GZ240PST-C 10'x12' Soft Top Gazebo...
- Page 2 IMPORTANT: Please read and follow all safety statements, warnings, assembly instructions, use & care directions, before attempting to assemble. WARNINGS: 1. Assembly Instructions must be followed. 2. Pegs supplied must be used to hold this gazebo in place when upright. 3.
- Page 3 Parts List Small top connector Top connector Finial Hook Top cant beam connector 1 Top cant beam connector 2 Arch beam 1 Arch beam 2 Horizontal beam 1 Horizontal beam 2 Horizontal beam 3 Post 1 Post 2 Fence Small canopy Big canopy Mosquito netting Netting Tube1...
- Page 4 Hardware Pack 1 M6*15 Bolt 32 PCS M6 Flat washer 64 PCS M6*35 Bolt 16 PCS M6 Wrench 1 PCS M6*15 Screw 16PCS...
- Page 5 Fig.1: Connect horizontal beam 1 (F) to post 1 (I) or post 2 (J) with bolt (AA) and flat washer (BB). (Note: Put canopy hook hole outwards when attach horizontal beam1 (F).) Fig.2: Connect fence (K) to post 1 (I) or post 2 (J) with bolt (CC) and flat washer (BB). Fig.3: Connect horizontal beam 3 (H) to post 1 (I) or post 2 (J) with bolt (AA) and flat washer (BB).
- Page 6 Fig.6: Insert top cant beam connector 2 (C2) into top connector (A2), at the same time, insert hook (B2) into top connector (A2). Fig.7: Insert arch beam 1(D) and arch beam 2(E) into top cant beam connector 2 (C2). Sort order of arch beam 1(D) and arch beam 2(E) is as below figure shows.
