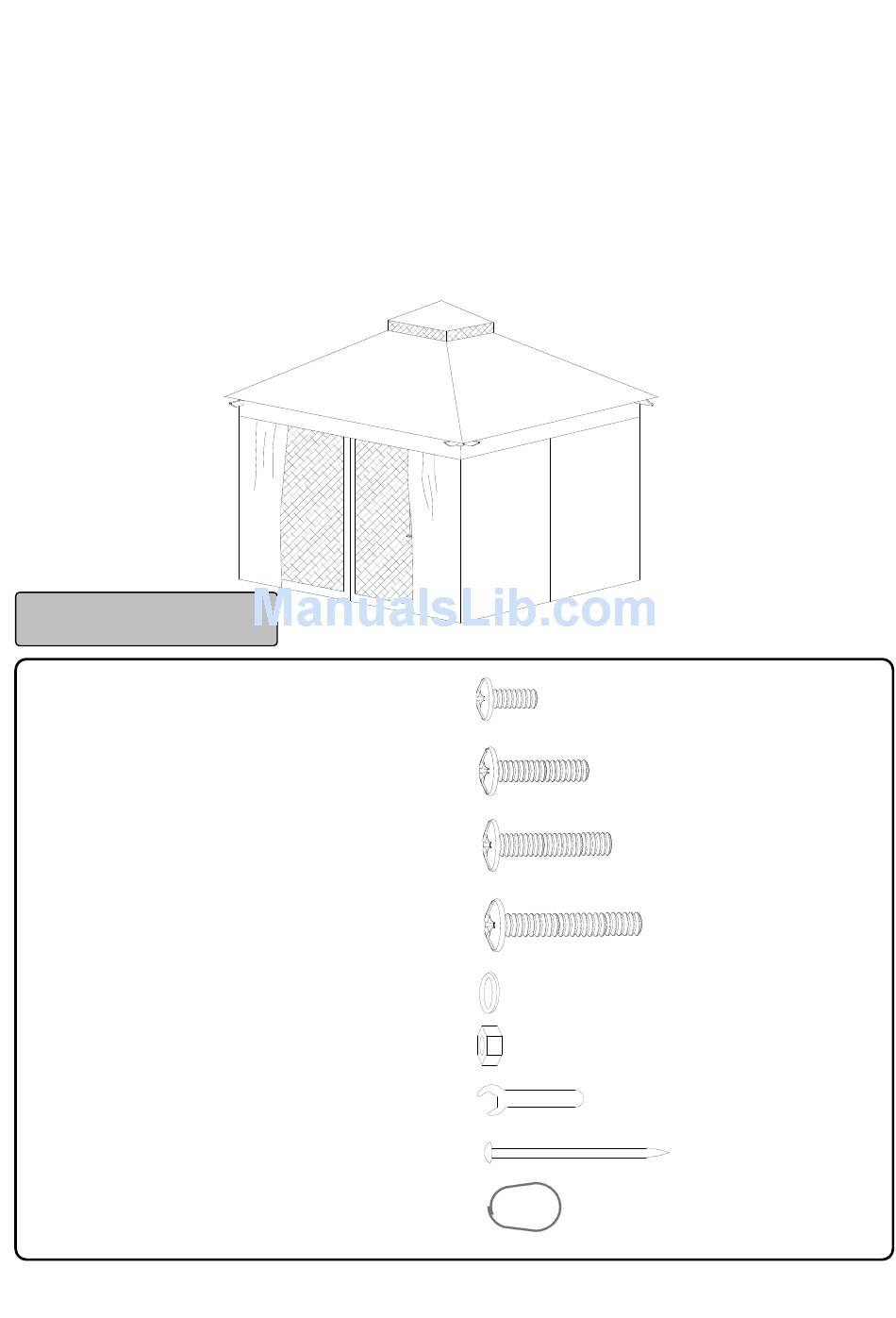

Hardware Pack 1
60 pieces
32 pieces
8 pieces
8 pieces
124 pieces
(DD)1/4＂ Flat washer
16 pieces
(EE)1/4＂-20 Nut
1 piece
(FF)1/4＂ Wrench
16 pieces
(GG)）5/16"*7 Stake
96 pieces
(HH) Mosquito netting hook

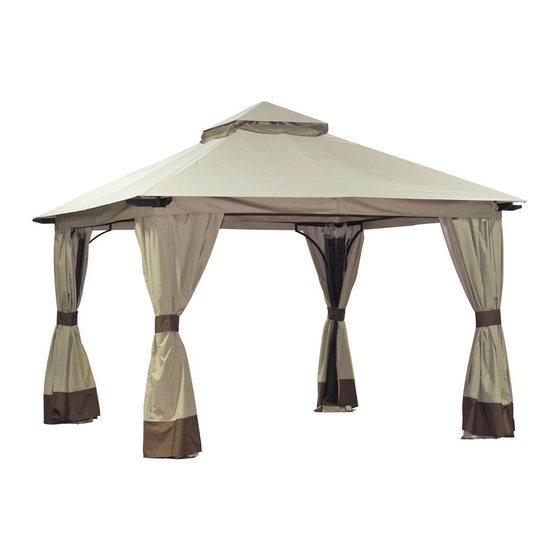

ASSEMBLY INSTRUCTIONS
Item:
(AA) 1/4＂-20*0.6 Bolt
(BB) 1/4＂-20*1.2
Bolt
(CC) 1/4＂-20*1.4
Bolt
(II) 1/4＂-20*1.75
Bolt
L-GZ224PAL-1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sunjoy L-GZ224PAL-1
Summary of Contents for Sunjoy L-GZ224PAL-1
- Page 1 ASSEMBLY INSTRUCTIONS Item: L-GZ224PAL-1 Hardware Pack 1 60 pieces (AA) 1/4＂-20*0.6 Bolt 32 pieces (BB) 1/4＂-20*1.2 Bolt 8 pieces (CC) 1/4＂-20*1.4 Bolt 8 pieces (II) 1/4＂-20*1.75 Bolt 124 pieces (DD)1/4＂ Flat washer 16 pieces (EE)1/4＂-20 Nut 1 piece (FF)1/4＂ Wrench 16 pieces (GG)）5/16"*7 Stake...
- Page 2 Parts List Top connector Long beam with small roof bar Short oblique beam Long oblique beam Top long beam Top short beam Oblique beam connector Long round pole Short round pole Long support beam Short support beam Column Support triangle Column base Base cover Small canopy...
- Page 3 Step1 Fig.5 Fig.3 Fig.2 Fig.4 N(O) N(O) N(O) N(O) Fig.1 Fig.1 Fig.2 Fig.3 Fig.5 J(K) Fig.4 Step1 Slide base cover (O) onto column (L), connect column base (N) to column (L) using bolt (AA), flat washer (DD) and tighten. (Fig.1) Repeat for each column. Insert side of long support beam (J) into short support beam (K), then connect using bolt (AA) and flat washer (DD) and tighten.
- Page 4 Fig.12 Step2 Fig.6 Fig.14 Fig.13 Fig.8 Fig.7 Fig.9 Fig.10 Fig.11 N(O) Fig.8 Fig.9 Fig.10 Fig.11 DD EE CC DD Fig.14 Fig.13 Fig.12...
- Page 5 Step2 Connect top short beam (F), long support beam (J), top long beam (E) and short support beam (K) using bolt (AA), flat washer (DD), and assemble all corners before tightening. (Fig.6) Repeat on all sides. Connect top short beam (F), top long beam (E) and long support beam (J), using bolt (AA) and flat washer (DD), assemble all corners before tightening.
- Page 6 Step3 Cover roof with big canopy (Q), do not fully extend. (Fig.15) Cover top with small canopy (P). (Fig.16) Hang mosquito netting (R) onto long round pole (H) and short round pole (I), using mosquito netting hooks (HH)). (Fig.17) Hang wall (S) onto top long beam (E) and top short beam (F), using mosquito netting hooks (HH). (Fig.18).
- Page 7 Important: Please do not return this product to the store. For technical assistance on assembly or replacement parts. Please call Sunjoy Industries at 1-866-578-6569 from 8:00 am EST to 8:00 pm PST or fax the replacement part form which is in the box to 1-740-283-3549 or Email customer.care@sunjoygroup.com for assistance.
Need help?
Do you have a question about the L-GZ224PAL-1 and is the answer not in the manual?
Questions and answers
have canopy l-gz224pal-1, looking for plastic triangular end cap on oblique beam that inserts into the canopy pocket, looking to replace all the plastic angular end caps, as some of the tips have broken off and will tear canopy if not installed, part # and how to order them would be apppreciated thank you
