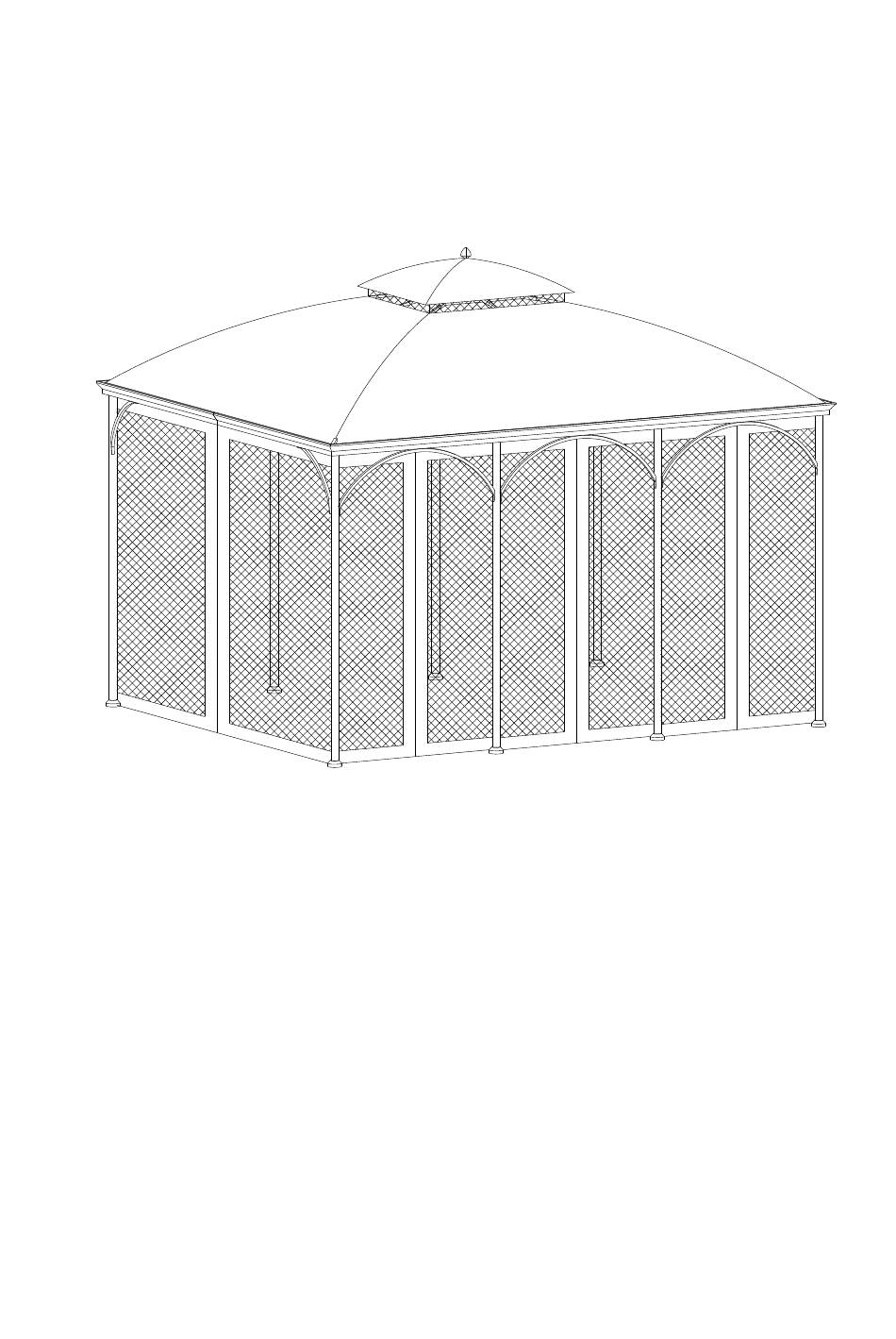

10x12 ft Somerset Gazebo-Canopy
Assembly Instruction
Item no# L-GZ212PCO-B-PK
SAFETY INFORMATION
Please read and understand this entire manual before attempting to
assemble or install the product.
WARNING
Keep all children and pets away from assembly area. Children and
pets should be supervised when they are in the area.
Keep all flame and heat sources away from the tent fabric. This tent
is made with fabric that meets CPAI-84 specification for flame
resistance. It is not fireproof. The fabric will burn if left in continuous
contact with any flame sources. The application of any foreign
substance to the tent fabric may render the flame-resistant
properties ineffective.
PREPARATION
Before beginning assembly of product, make sure all parts are
present. Compare parts with package contents list. If any part is
missing or damaged, do not attempt to assemble the product.
