Quick Installation Guide
x86 Rackmount Embedded Computers
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
DA-682C Series
Version 1.0, February 2020
Technical Support Contact Information
www.moxa.com/support
2020 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802006821011
*1802006821011*
Advertisement
Table of Contents
Related Manuals for Moxa Technologies DA-682C Series
Summary of Contents for Moxa Technologies DA-682C Series

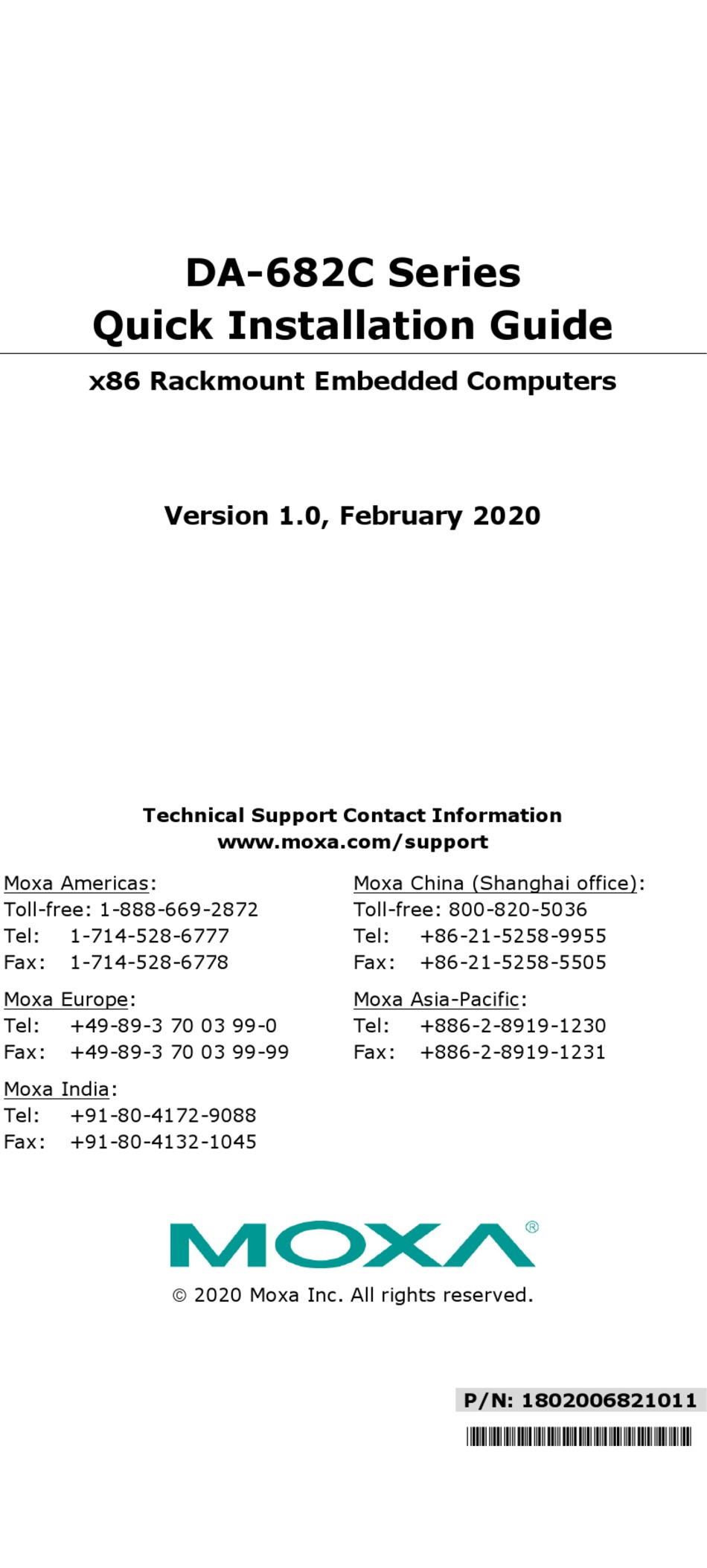

- Page 1 DA-682C Series Quick Installation Guide x86 Rackmount Embedded Computers Version 1.0, February 2020 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific:...

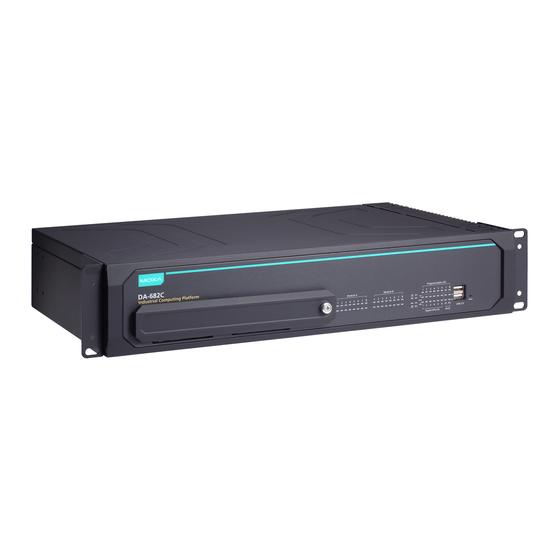

- Page 2 Overview The DA-682C Series is built around a Intel® Celeron, Intel® Core™ i3, i5 or i7 CPU and comes with dual display ports (2 x HDMI), 5 USB ports, 6 gigabit LAN ports, 2 3-in-1 RS-232/422/485 serial ports, 6 digital Input ports, and 2 digital output ports.
- Page 3 Rear View Connecting the Power The DA-682C provides single or dual power inputs using a terminal block, which is located on the rear panel. Connect the power cord wires to the screws, and then tighten the screws. The Power LED will light up to indicate that power is being supplied to the DA-682C, after which the BIOS will initialize the flash disk module, causing the Storage LED to blink.
- Page 4 In addition, a power button on the rear panel allows users to power on the computer when it is in the sleep or hibernate mode. For detailed power connection and surge protection information, refer to the DA-682C Hardware User’s Manual. Front-panel LEDs There are 60 LED indicators on the front panel.
- Page 5 USB Ports The DA-682C comes with two USB 2.0 ports on the front panel and three USB 3.0 ports on the rear panel. The USB ports can be used to connect peripherals, such as flash drives, to expand the systems storage capacity. Ethernet Ports The DA-682C has 6 100/1000 Mbps RJ45 Ethernet ports on the rear panel.
- Page 6 There are two slots for installing two SSD disks. The installation sequence of the disks is indicated in the diagram on the right. Installing Expansion Modules The DA-682C comes with two expansion module sockets on the rear panel. You can install Moxa’s LAN or serial connectivity expansion module using this socket.
