Moxa Technologies DA-682 Brochure & Specs

Embedded Computing Solutions
DA-682 Series
x86-based rackmount computers with VGA, 4 Gigabit Ethernet
ports, 2 peripheral expansion slots, CompactFlash, USB
15
The certifi cation logos shown here apply to some or all of the
products in this section. For details, see "Regulatory Approvals"
under "Specifi cations" below.
Overview
The DA-682 computers are based on the Intel x86 processor and
support VGA, 4 Gigabit Ethernet ports, 8 RS-232/422/485 serial ports
with optical isolation, CompactFlash, and USB. The DA-682 comes in a
standard 19-inch, 2U high form factor.
With their robust design, the DA-682 computers are suitable for
industrial automation applications that require standard 19-inch
rackmount solutions, such as power automation, transportation, and
oil and gas. Another plus is that the serial ports come with 2 KV optical
isolation protection to guarantee communication reliability in harsh
industrial environments.
The DA-682 computers run Linux, WinCE 6.0, or Windows XP

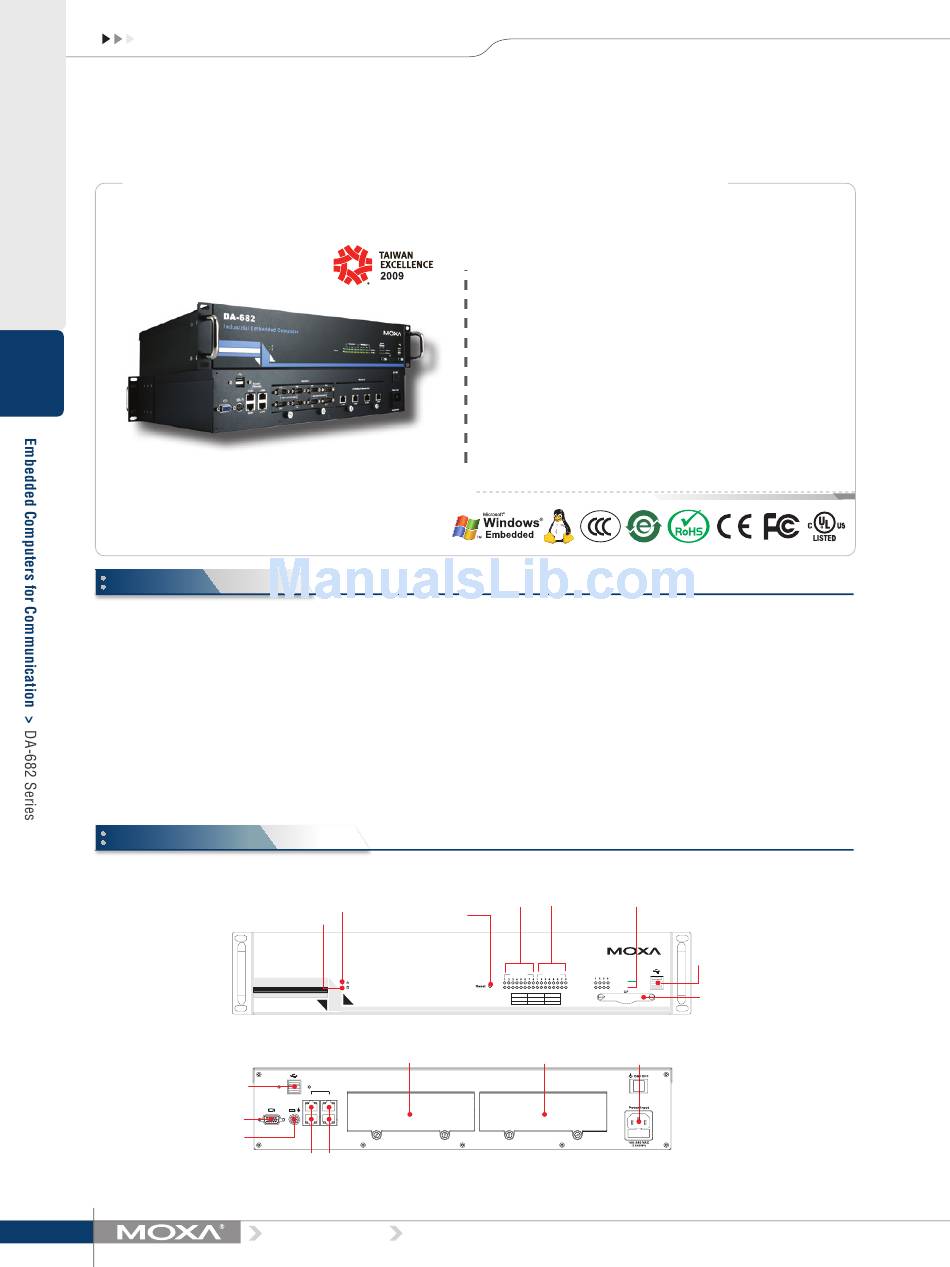

Appearance
Front View
Rear View
15-52
Power LED
Storage LED
DA-682
Industrial Embedded Computer
Module Slot A
USB 2.0
Gigabit
Host x 2
Ethernet
LAN2 LAN4
VGA
LAN1 LAN3
PS/2
10/100/1000 Mbps
Ethernet x 4
w w w. m o x a . c o m
› ›
Intel Celeron M 1 GHz processor with 400 MHz FSB
› ›
Built-in DDR2 SDRAM and industrial fl ash disk module
› ›
Quad Gigabit Ethernet ports for network redundancy
› ›
Software selectable RS-232/422/485 with 2 KV isolation protection
› ›
PCI expansion slots for inserting expansion modules
› ›
1 CompactFlash socket for storage expansion
› ›
USB 2.0 ports for high speed peripherals, supporting system bootup
› ›
19-inch rackmount, 2U high form factor
› ›
100/240 VAC/VDC power inputs
› ›
Ready-to-Run Linux, WinCE 6.0, or Windows XP Embedded platform
› ›
Fanless design
Embedded (pre-installed), providing a friendly environment for
developing sophisticated application software. The great software
support that Moxa provides makes the programmer's job easier, and
helps programmers develop bug-free code quickly and at a lower cost.
The DA-682 comes with 2 PCI slots for inserting expansion modules.
Moxa provides a variety of communication modules, including an
8-port RS-232/422/485 module, a 4-port 10/100 Mbps LAN module,
and a universal PCI expansion module. The friendly design gives users
the advantage of being able to swap out modules quickly and easily.
These features make the DA-682 an ideal solution for use with a wide
array of industrial automation applications.
Module B Module A
LED x 16
LED x 16
(Serial/LAN)
(Serial/LAN)
Reset Button
Module B Module A
Serial Port LAN Port
Green TX 100 Mbps
Orange RX 10 Mbps
Module Slot B
Slot A Slot B
i n f o @ m o x a . c o m
Ethernet LED x 4
USB 2.0
Host x 2
Gigabit
Ethernet
100 Mbps
1000 Mbps
CF Card
Socket
Power Input
100-240 VAC
