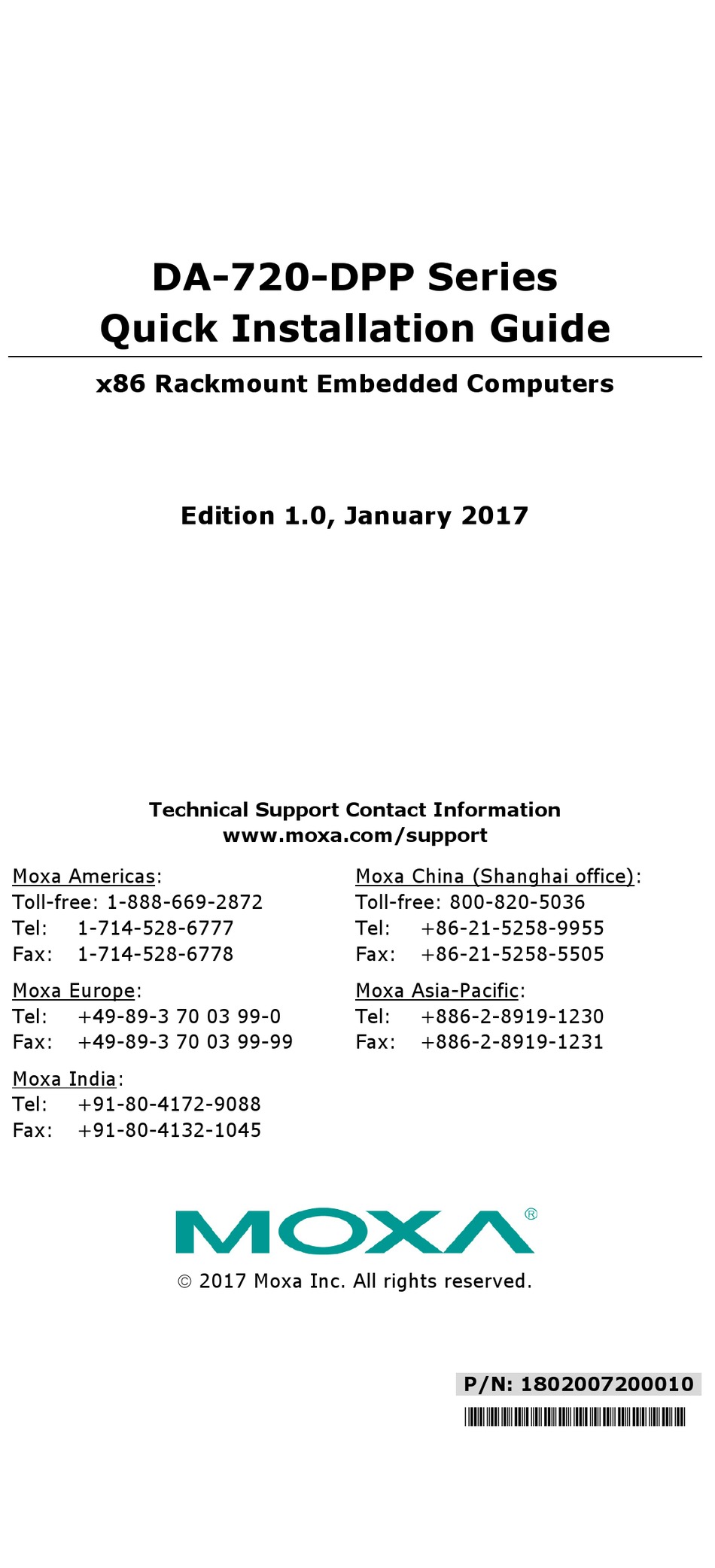

Quick Installation Guide
x86 Rackmount Embedded Computers
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
DA-720-DPP Series
Edition 1.0, January 2017
Technical Support Contact Information
www.moxa.com/support
2017 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802007200010
*1802007200010*
Advertisement
Table of Contents
Related Manuals for Moxa Technologies DA-720-C5-DPP
Summary of Contents for Moxa Technologies DA-720-C5-DPP
-
Page 1: Quick Installation Guide

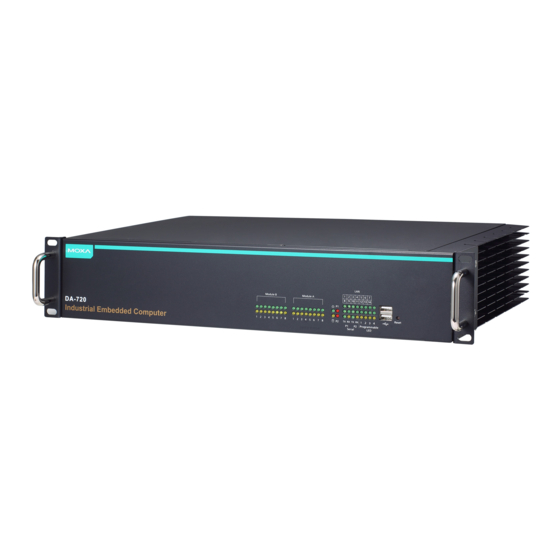

DA-720-DPP Series Quick Installation Guide x86 Rackmount Embedded Computers Edition 1.0, January 2017 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0 Tel:... - Page 2 18 serial ports, making it an ideal solution for a wide range of industrial automation applications. Model Names and Package Checklist The DA-720-DPP series includes the following models: DA-720-C5-DPP: Rackmount computer with Core i5-6300U, • 2.4 GHz, dual-core CPU, without mSATA/RAM/OS, 14 gigabit Ethernet ports, 2 isolated RS-232/422/485 ports, 2 PCIe expansion slots, VGA x 1, DVI-D x 1, 4 USB hosts, IEC 61850-3 compliant, -25 to 55°C operating temperature...
-
Page 3: Hardware Installation
NOTE To order a DA-720 system with a pre-installed Windows 10 Enterprise LTSB 64 Bit OS, please contact a Moxa sales representative. Each basic system model is shipped with following standard items: • DA-720-DPP embedded computer • Rackmount kit • Documentation and software CD or DVD •... - Page 4 AC Terminal DC Terminal Power Terminal Block Pin Assignment Terminal Description Note Number PWR1 PWR1 Line/DC+ is connected to the positive Line/DC+ (+) terminal if the power source is DC, or to the Line terminal if the power source is AC. PWR1 Neutral/DC- is connected to the PWR1 Neutral/DC-...
- Page 5 Color Description Power Input 2 Power Input 2 has failed Status Power is being properly supplied to Power Input 2 Gigabit Ethernet Green Ethernet link is up LEDs 1-14 Blinking Ethernet is transmitting or receiving data No connection Serial Port TX 1-2 Green/Blinking Serial port is transmitting data No operation on the serial TX ports Serial Port RX 1-2...
-
Page 6: Configuring The Ethernet Interface
NOTE The Windows 7E and Windows 10 models use DHCP for IP address assignment. Installing Expansion Modules The DA-720-DPP is provided with two expansion slots, which can be used to connect Moxa’s DE Series expansion modules. Slot A is available for both serial and LAN modules while slot B is for serial module only. - Page 7 auto eth1 iface eth1 inet static address 192.168.4.127 netmask 255.255.255.0 broadcast 192.168.4.255 Each interface must be configured with separate entries in the network/interfaces file. LAN1 corresponds to eth0, LAN 2 corresponds to eth1, and so forth for the remaining interfaces. STEP 4: Exit the text editor.
