A. Technical appendix
Conveyor and test output
Conveyed parts
Length
Diameter
Supply rate (examples for belt speed 300 mm/s)
The supply rate depends on the size of the part, the number of orientations and the belt speed
M3x25 screws, in correct position for mounting
@
Axes 18x25 mm for quality check
@
Bolts 5x50 mm tested and in correct position

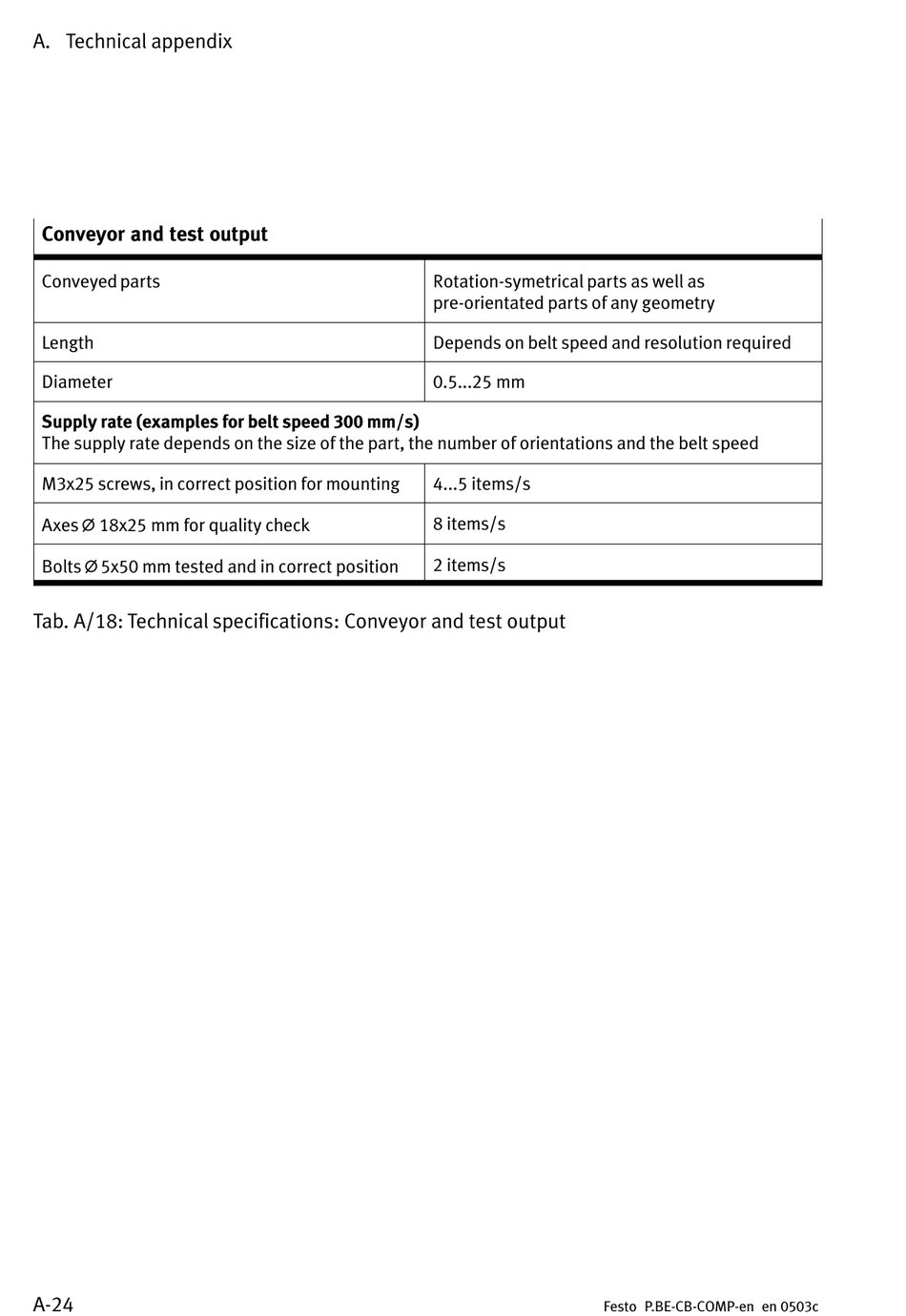

Tab. A/18: Technical specifications: Conveyor and test output
A−24
Rotation−symetrical parts as well as
pre−orientated parts of any geometry
Depends on belt speed and resolution required
0.5...25 mm
4...5 items/s
8 items/s
2 items/s
