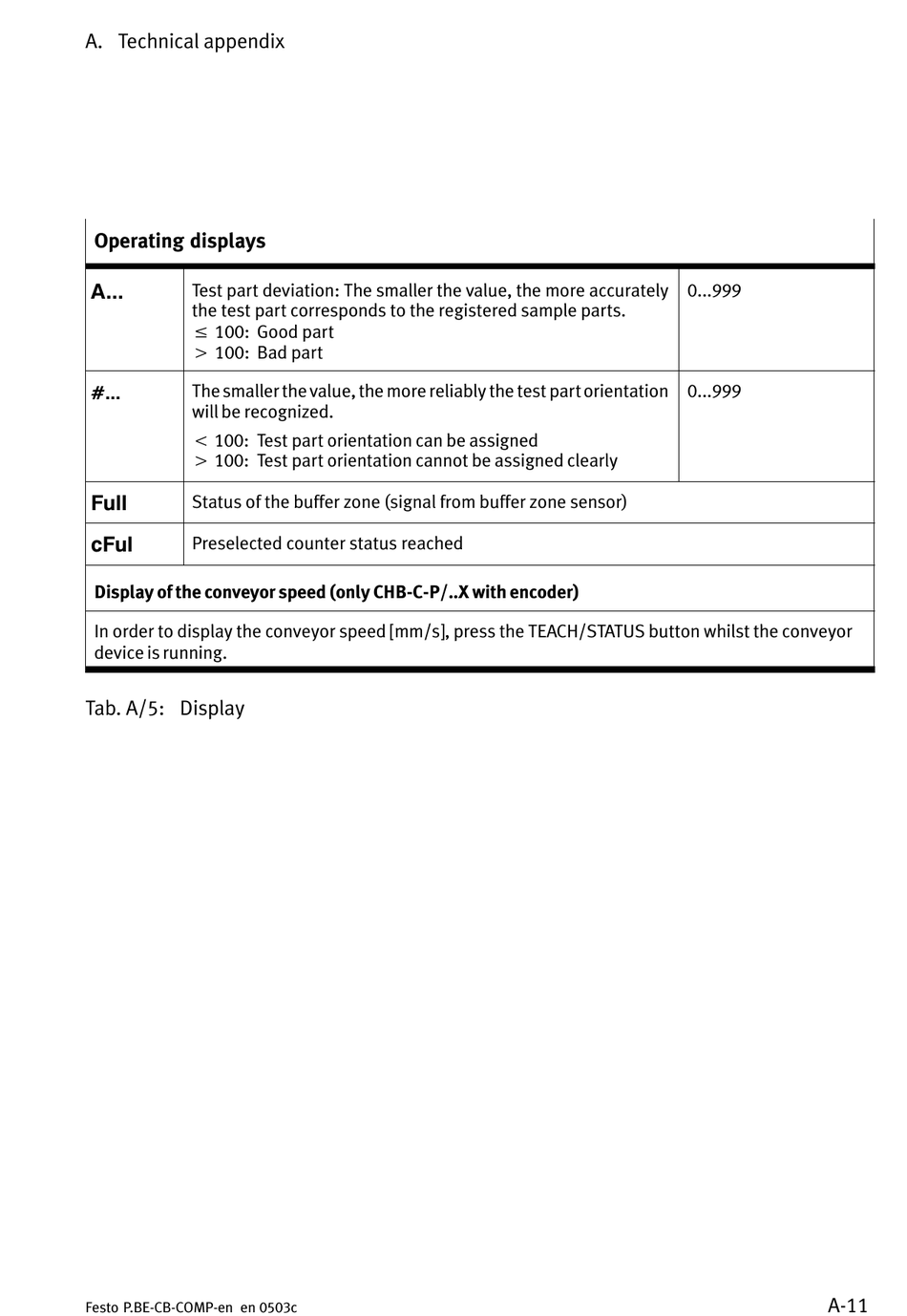

A. Technical appendix
Operating displays
Test part deviation: The smaller the value, the more accurately
A...
the test part corresponds to the registered sample parts.
v 100: Good part
u 100: Bad part
The smaller the value, the more reliably the test part orientation
#...
will be recognized.
t 100: Test part orientation can be assigned
u 100: Test part orientation cannot be assigned clearly
Full Status of the buffer zone (signal from buffer zone sensor)
cFul Preselected counter status reached
Display of the conveyor speed (only CHB−C−P/..X with encoder)
In order to display the conveyor speed [mm/s], press the TEACH/STATUS button whilst the conveyor
device is running.
Tab. A/5: Display
Festo P.BE−CB−COMP−en en 0503c
0...999
0...999
A−11
