Do not attempt to install this product on any vehicle other than the one it is designed for and listed above!
PART NO.
Qty
8
8
8
152050
2
6
6

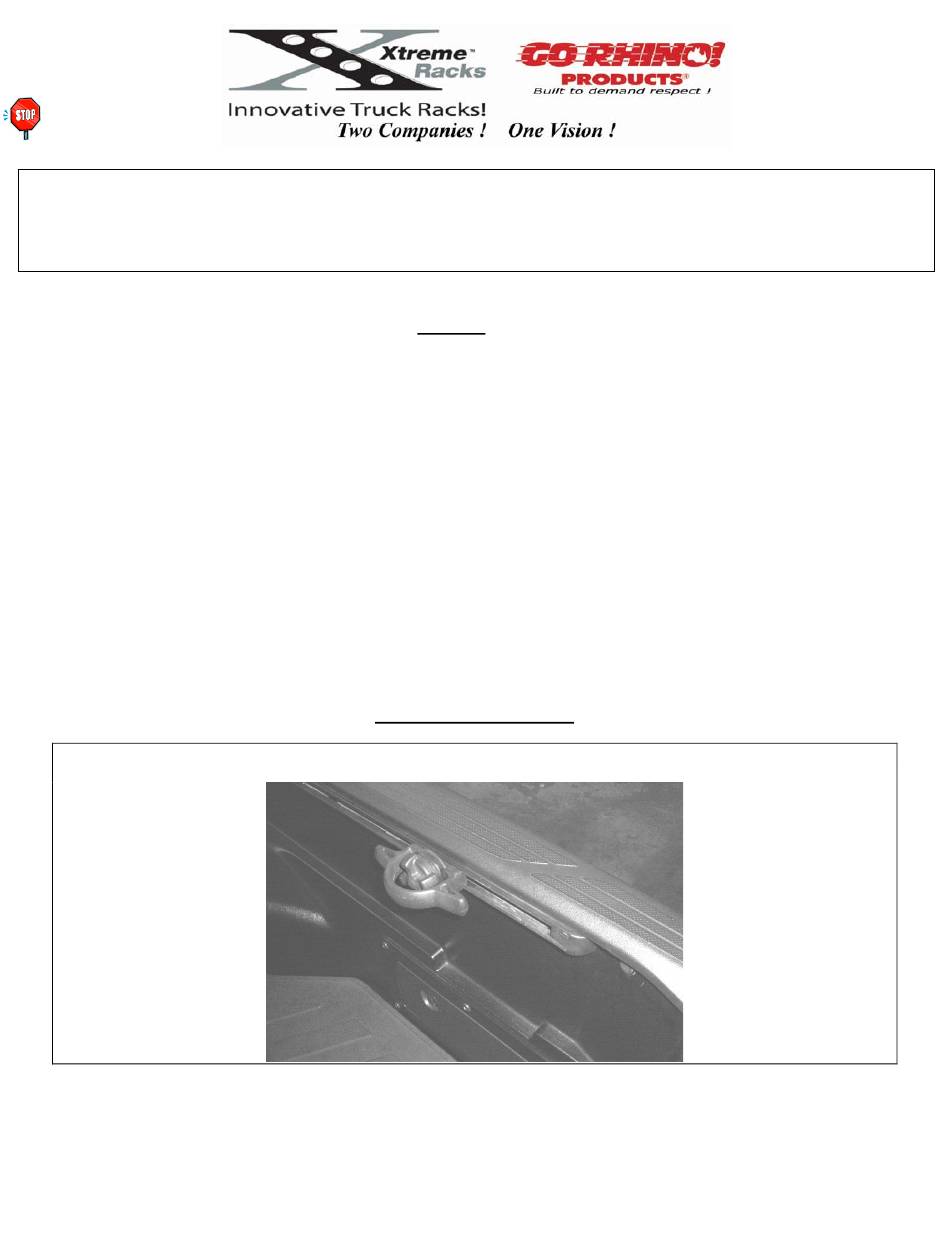

Step 1. Locate and remove the rail track plastic end plugs and tie downs.
Step 2. Loosen the torx screws securing rail tracks to the side of the bed.
LIGHTNING SERIES SPORT BAR
ASSEMBLY & INSTALLATION INSTRUCTIONS
PART NO. 555000 2004-08 TOYOTA TACOMA
DESCRIPTION
3/8" x 1" HEX BOLTS
3/8" FLAT WASHERS
3/8" LOCK WASHERS
BOLT PLATES
5/16" x 1 ¼" CAR BOLTS
5/16" FLAT WASHERS
Assembly and Installation
Parts list
PART NO.
517340S
517341S
201400
323600
Qty
DESCRIPTION
6
5/16" LOCK WASHERS
6
5/16" HEX NUTS
1
17 3/4" UPRIGHT
1
17 3/4" UPRIGHT
4
TUBULAR CORNERS
1
36" CROSS BAR
1
Advertisement
Related Manuals for Go Rhino Lightning Series
Summary of Contents for Go Rhino Lightning Series
- Page 1 LIGHTNING SERIES SPORT BAR ASSEMBLY & INSTALLATION INSTRUCTIONS PART NO. 555000 2004-08 TOYOTA TACOMA Do not attempt to install this product on any vehicle other than the one it is designed for and listed above! Parts list PART NO. DESCRIPTION PART NO.
- Page 2 Step 3. Slide the bolt plates into rail tracks and position them toward the front of the bed. Step 4. Secure the rail tracks and reinstall the tie downs and rail end plugs Step 5. Loosely attach the uprights to the bolt plates using the 5/16” flat washers, lock washers and hex nuts.
- Page 3 Step 6. Attach the corner tubes and crossbar to the uprights using the 3/8” x 1” hex bolts and washers. Step 7. Secure the sport rack assembly nuts and bolts.
