Mounting Instruction - R82 Combi Frame Mounting Instruction

Mounting instruction

Mounting transport fitting on Combi Frame with Panda Futura seat
This mounting instruction applies only to transport fitting
for the Panda Futura seat. The Combi Frame also has
to be secured separately depending on the foot support
mounted - see separate mounting instructions.
The fitting MUST be mounted for transportation.
On Combi Frame size 3 with Panda Futura size 4, the
fitting is placed above the back brace. Skip step 1 and 2,
and go to step 3 on next page.
Any adjustments and addition of accessories must be
placed and fitted correctly and checked before every use.

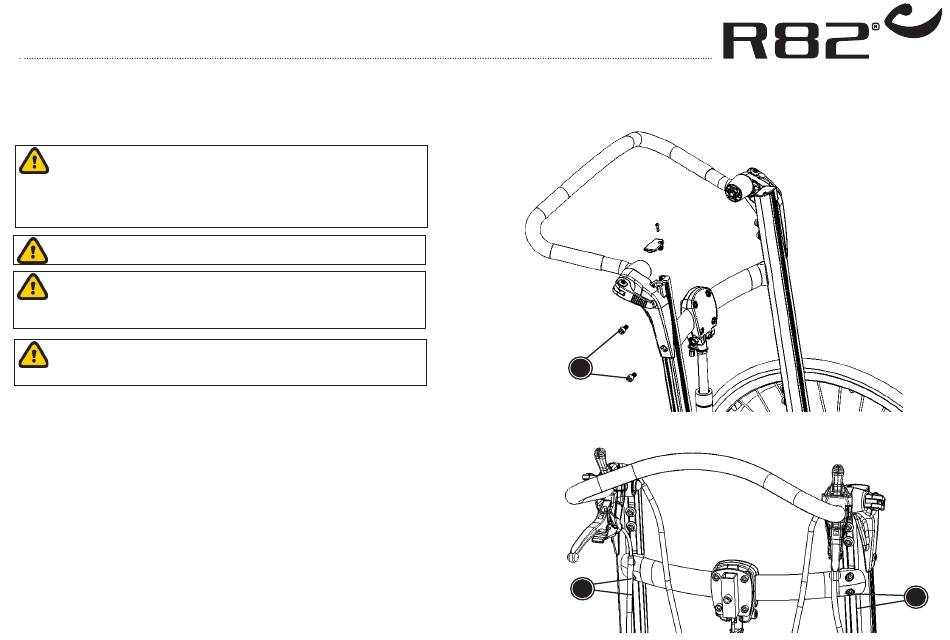

1. Remove the push brace by loosening the 2 bolts (A) on
each side.
* Pull up the push brace.
2. Remove the top back brace by loosening the 4 screws (B).
* Tilt back the vertical bars.
* Slide up the back brace.
A
B
B
