- Page 1 English user manual © 2010 R82 A/S. All rights reserved. The R82 logo and the Combi Frame are trademarks of R82 A/S. 06.2011 - rev. 005...
-
Page 2: Table Of Contents

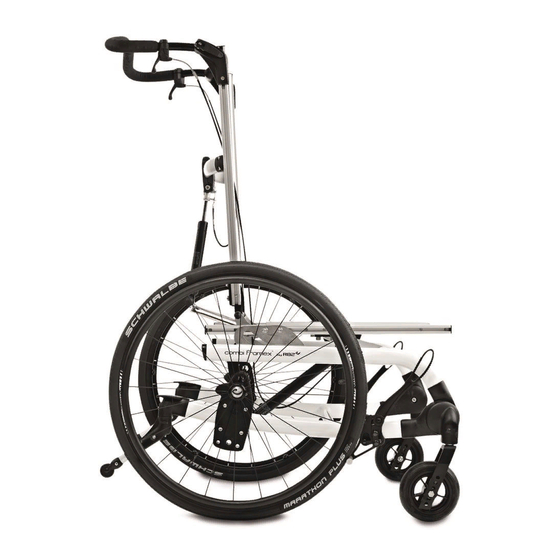

Warranty ................5 Maintenance ..............5 Preparation for use ............6 T-tool.................. 6 Sitting and Transferring from the Combi Frame ....6 Negotiating obstacles 1/3 ..........7 Negotiating obstacles 2/3 ..........8 Negotiating obstacles 3/3 ..........9 Angling the seat & back ........... 10 Adjustment of back ............ - Page 3 Norwegian Design Reg. No. 80196 COMBI FRAME The Combi Frame is a unique wheelchair frame for customized seating systems. The Combi Frame is ideal for both indoor and outdoor use. The frame comes in either blue, red or silver with either 12 ”, 20”, 22”...
-
Page 4: Safety
SAFETY The Combi Frame has earned the CE-mark. This certifies that it meets all relevant European safety requirements. The Combi Frame is approved ac- cording to ISO 7176-19 and the manual according to ISO 7176-15. The durability of this product is 5 years when it is used on a daily basis. -
Page 5: Warranty
R82 homepage/download. The warranty can only be sustained if the R82 product is in use in the same country where it was purchased and if the product can be identified by the serial number. The warranty does not cover accidental damage, including damage caused by misuse or neglect. -
Page 6: Preparation For Use
Place the user into the Combi Frame and adjust the accessories to achieve the optimal seating for the user. It is not necessary to remove the leg rests if the user is transferred in or out of the Combi Frame using a sling. -
Page 7: Negotiating Obstacles 1/3
NEGOTIATING OBSTACLES 1/3 Driving UP kerbs (max. 10 cm) Forwards This technique is recommended for experienced users. * Make sure the anti-tip device is deactivated * Drive forward towards the kerb * Balance on the rear wheels and lift the front wheels from the ground. -
Page 8: Negotiating Obstacles 2/3
NEGOTIATING OBSTACLES 2/3 Driving DOWN kerbs (max. 10 cm) Forwards This technique is recommended for experienced users. * Make sure the anti-tip device is deactivated * Drive forward towards the kerb * Push hard on the hand rims and drive forward. All wheels should touch the ground at the same time. -
Page 9: Negotiating Obstacles 3/3
NEGOTIATING OBSTACLES 3/3 Driving UP stairs Always ask for help. Never enter an escalator even with help from others. Do not lift ONLY in the push handle! Backwards, with assistance: * Make sure the anti-tip device is deactivated and the handles is tightned securely. * Drive backwards toward the first step. -
Page 10: Angling The Seat & Back
Once the desired angle has been reached release the lever to lock back into place The Combi Frame can be ordered with or without a gasspring for reclining the back. Please follow the description below to angle the back on your... -
Page 11: Adjustment Of Back
ADJUSTMENT OF BACK It is possible to adjust the back unit independent- ly of the seat. At delivery the back can be moved up to 10 cm backwards. The back profiles are mounted with fittings beneath the seat profiles. * Loosen the two screws (A) beneath the seat profile. -
Page 12: How To Mount A Seat
Panda Futura or an x: panda seat from R82. Follow the below descrip- tion to mount the seat on the Combi Frame. * Place the interface on the seat base and mount the enclosed bolts, washers and nuts (A). -
Page 13: Gas Spring Adjustment
GAS SPRING ADJUSTMENT Occasionally the gas spring may need to be adjusted. Try adjusting by the cable tightener. If this does not work, proceed as follows: The adjustment is only necessary when: - the gas spring releases itself slowly - the gas spring can not be released at all If the gas spring releases itself;... -
Page 14: Quick Release Wheels
QUICK RELEASE WHEELS Quick Release axle pins on the rear wheels is a standard feature of the Combi Frame - This aids in quick and easy removal (A): Push the release mechanism in the middle of the wheel and pull to remove the wheel. -
Page 15: Adjustment Of The Push Brace
ADJUSTMENT OF THE PUSH BRACE The angle of the push brace is easy to adjust so that it can be used by carers of different heights. * Press down the locking pin (A) and pull the handle to release the push brace. * Adjust the angle. -
Page 16: Anti-Tip Device
MUST step on the pedal (B) on the anti-tip device. The anti-tip device must be activated when the frame is tilted and if the Combi Frame is parked on roads with a gradient higher than 10°. We recommend periodically checking the anti-tip devices to make sure they are in proper working condition. -
Page 17: Seat Height Adjustment
SEAT HEIGHT ADJUSTMENT Follow the directions below to adjust the seat height of the Combi Frame: * Remove the bolts (A) from the frame. * Adjust the height to the required position. * Replace the bolt and fasten. Make sure that the seat height is the same at both sides of the frame. -
Page 18: Wheel Lock
WHEEL LOCK Wheel locks are mounted on the lower frame and can be operated by either user or helper. * Push the handle forward to lock the wheel * Pull the handle backward to loosen the wheel lock The wheel locks are installed on the frame and can be moved forward and backward, depending on wheel size and brake efficiency. -
Page 19: Wheel Combinations
WHEEL COMBINATIONS The recommended wheel combinations on the Combi Frame are described below. If another seat height is desired, use the seat height adjustment described elsewhere in this manual. Possible wheel combinations: 12½" 20" 22" 24" 6" √ √ √... -
Page 20: Changing The Centre Of Gravity
7) Remount the gas cylinder, so that the seat is located at the correct angle. The Combi Frame is ready for use. Remember that the wheel locks also need to be moved forwards or backwards. -
Page 21: Wooden Back
WOODEN BACK The Combi Frame can be equipped with a wooden back plate. Mount the fittings in the rails on the back and mount the back plate with the enclosed screws and bolts. Fittings for curved wooden back can be ordered seperately and can be used for other manufac- turers curved backs. -
Page 22: Head Support Fitting
HEAD SUPPORT FITTING Mount the head support fitting on the gasspring fitting on the back. * Remove the four screws (A) from the fitting * Place the head support fitting (B) and fasten with the new longer screws. Remember the distance bush between the 2 mountings. -
Page 23: Leg Rests And Foot Plates
LEG RESTS AND FOOT PLATES These leg rests and foot plates cannot be used on Combi Frame size 1. See next page. Follow the directions below to install leg rests on the Combi Frame: 1) Installation of the leg rests: Remove the end-piece (A) by using a screw- driver. -
Page 24: Mounting Of Foot Support
MOUNTING OF FOOT SUPPORT The Combi Frame can be equipped with various foot supports and foot support bars. Follow the description below for correct mounting: * Dismount the fittings (A) under the seat and mount the new fittings (B). * Place the footrest mounting i the tubes on the fittings (B). -
Page 25: G Transportation In Motor Vehicles 1/3
The Combi Frame must be placed in a forward-facing position, when used as a seat in a motor vehicle. Use an approved 4-point strap-type tiedown system acoor- ding to ISO 10542-2. -
Page 26: B Transportation In Motor Vehicles 2/3
* Mount fitting (A) on the Panda Futura back, as shown on the drawing. * Mount fitting (B) on the Combi Frame pro- file. * The fingerscrew (C) is screwed into the fitting (A). -
Page 27: Transportation In Motor Vehicles 3/3
TRANSPORTATION IN MOTOR VEHICLES 3/3 Placing the Combi Frame in the vehicle: 1. By use of a 4-point strap system, the frame is secured in the vehicle. (Follow instructions from the manufacturer of the vehicle). A 4-point strap-system, approved according to ISO 10542-2, must be used. -
Page 28: Product Identification
PRODUCT IDENTIFICATION A) Serial number The label is placed left on the front cross bar beneath the seat. B) Manufacturer The label is placed far left on the front cross bar beneath the seat. Dato: 31-01-02 Belast: 0840-01-111878-001 Varenr: 880003 5707292 134158 Parallelvej 3... -
Page 29: Measurements
Different settings may result in different measurements. * The height and length may vary according to the choice of seat and back rails. The Combi Frame is measured with the following combinations; size 1 and 2 chair with size 2 seat and back rails, size 3 chair with size 3 seat and back rails, size 4 chair with size 4 seat and back rails. -
Page 30: Technical Data
TECHNICAL DATA Frame: Powder painted aluminium tubes Plastic parts: Glass fibre strengthened Nylon MANUFACTURER DEALER R82 A/S Parallelvej 3 8751 Gedved Denmark Den Vertreiber finden Sie unter www.R82.com... -
Page 31: Care And Maintenance
Accessories or available spare parts which are broken can be forwarded to R82 for repair. If there is a problem with any basic parts, the whole chair must be returned to R82 for repair. R82 will not be held responsible for damage or injury caused by use of non-original parts... -
Page 32: Troubleshooting
Seat/back seems bent - Make sure the cross bar on the back is horizontal. The point of gravity function - Contact an authorized R82 dealer. Do NOT try to separate anything does not run smoothly without guidance . * The user may experience several of these problems in a wheelchair that is incorrectly adjusted...
