Mounting instruction
Mounting transport fitting on Combi Frame with Panda Futura seat
3. Make sure that the seat back and the back of the frame runs
parallel in a vertical position.

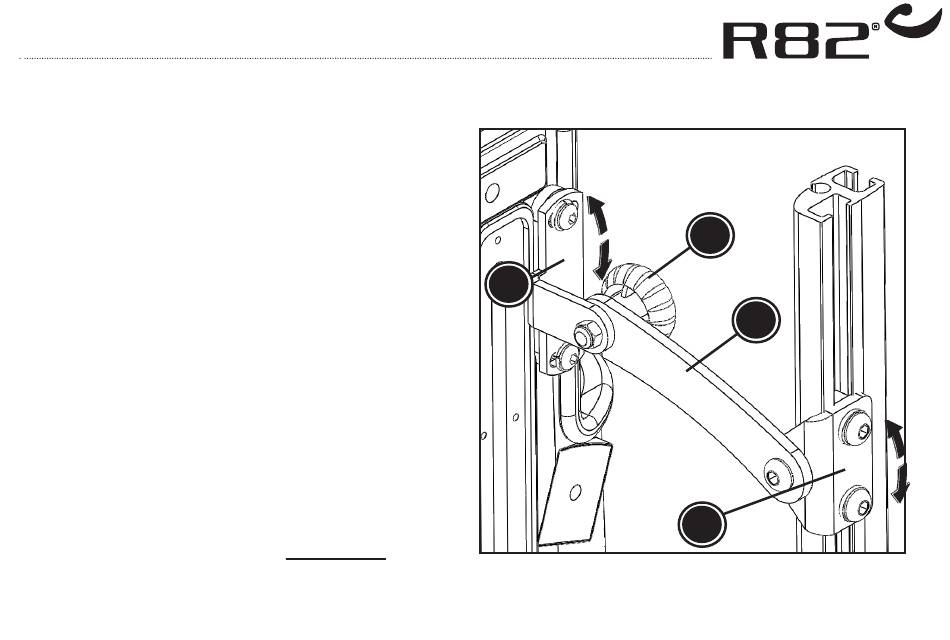

* Mount fitting (A) on the Combi Frame profile. Please note that
the fitting is 180˚ reversible depending on the combination
of the seat and frame size.
* Mount fitting (B) on the Panda Futura back, as shown on
the drawing. Please note that the fitting is 180˚ reversible
depending on the combination of the seat and frame size.
* The fingerscrew (C) is screwed into the fitting (B). Fasten
the nut at the end of the fingerscrew.
* The brace (D) mounted on the fitting (A) is brought over the
fingerscrew (C).
* Tighten the fingerscrew.
* The fitting (A) can be loosened for final adjustments.
The seat can easily be removed by loosening the fingerscrew
(C) and lifting the brace (D) mounted on the fitting (A).
Please find the Combi Frame manual on www.R82.com
