Mounting instruction

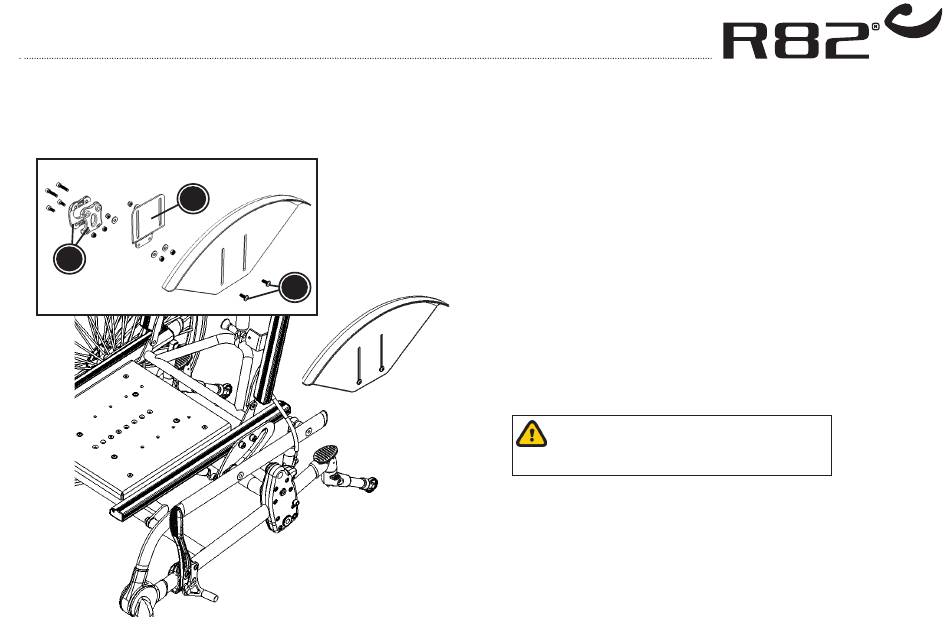

Mounting of mudguards on the Combi Frame
B
A
C
Mudguards can be mounted on the Combi
Frame. Follow the below description to mount
the mudguards correctly:
* Mount the fitting (A) on each side of the frame
bar and mount with the enclosed screws.
Make sure the fitting (B) is mounted in the
top holes.
* Place the mudguard on the fitting (B) and
fasten with the screws (C).
* Place the mudguard correctly over the wheel
and tighten the screws.
Any adjustments and addition of acces-
sories must be placed and fitted correctly
and checked before every use.
