Independent modes

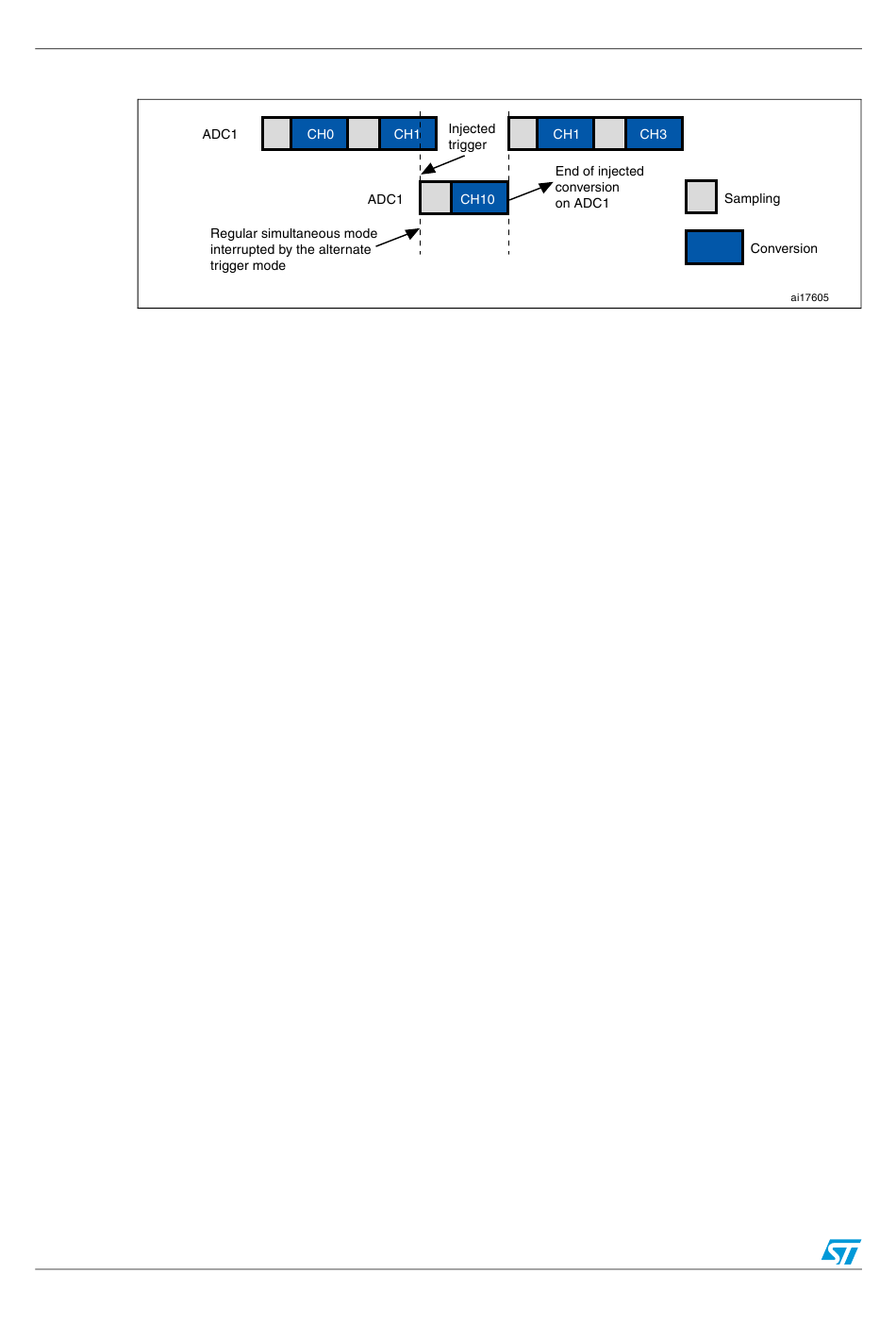

Figure 6.
1.5.2
Example of application
This mode can be used to synchronize the conversion of channels to an event. It is
interesting in motor control applications where transistor switching generates noise that
impacts ADC measurements and results in wrong conversions. Using a timer, the injected
conversion mode can thus be implemented to delay the ADC measurements to after the
transistor switching.
8/18
Injected conversion mode
Doc ID 16840 Rev 1
AN3116
