AN3116
Note:
This application note is not delivered with a firmware example of this mode.

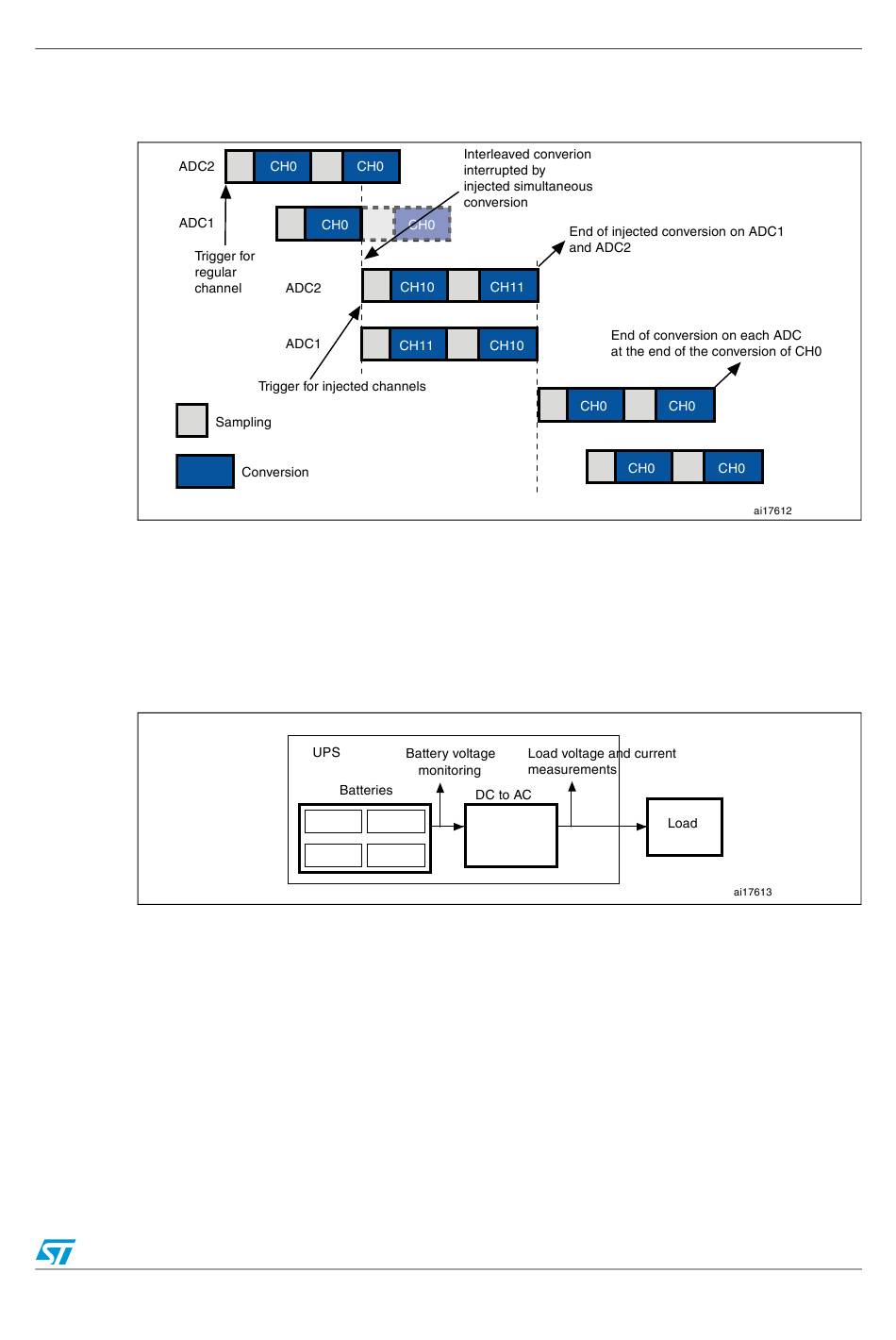

Figure 13. Dual combined: injected simultaneous + interleaved mode
2.6.2
Example of application
You can use this dual combined mode in a UPS system (uninterruptible power supply). The
battery voltage is monitored with the ADC watchdog converted in dual interleaved mode.
The ADC also monitors the power consumed by the load by measuring the voltage and the
current in dual injected simultaneous mode.
Figure 14. UPS system
Doc ID 16840 Rev 1
Dual modes
15/18
