Software

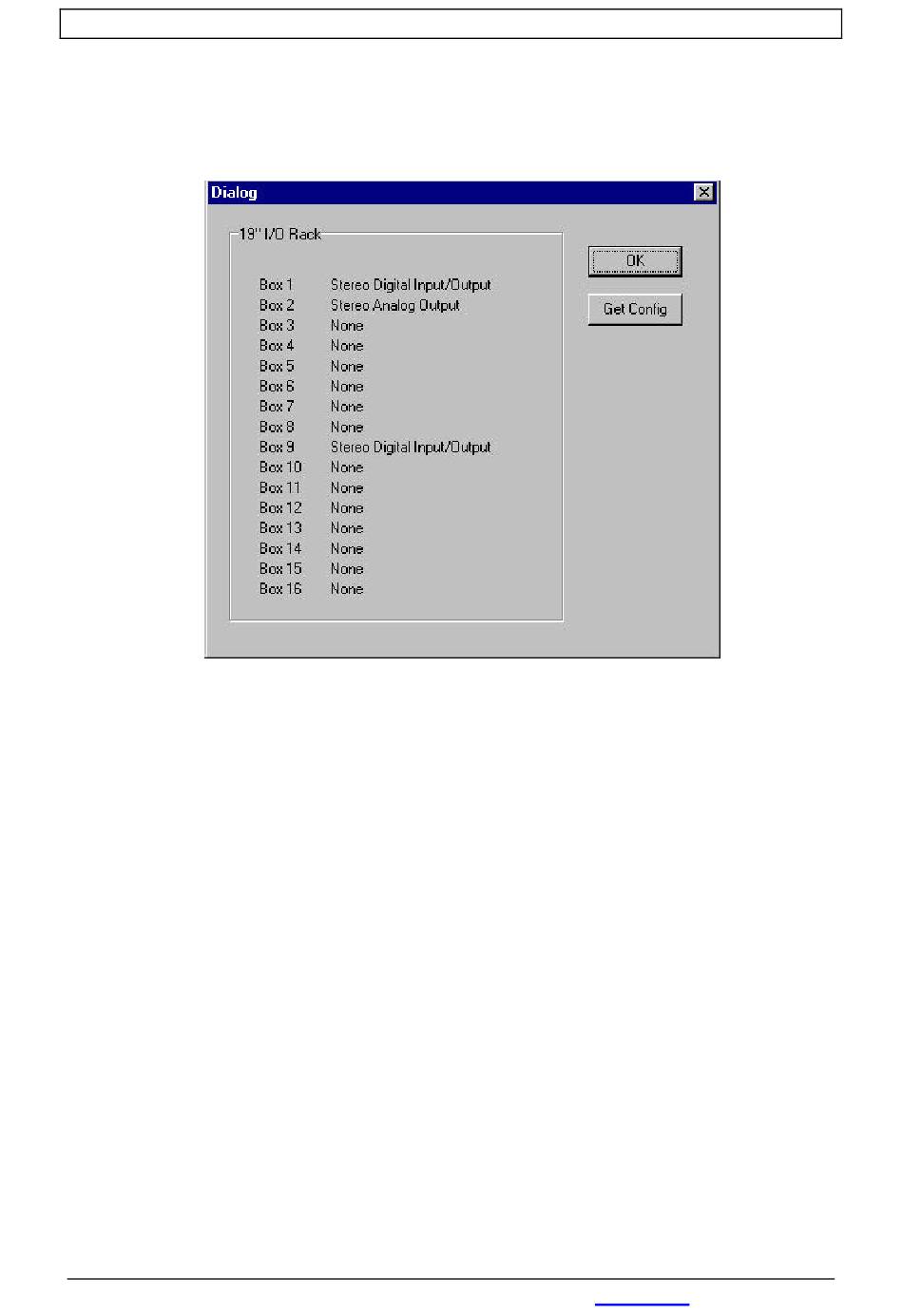

With the menu option '19" rack' you get a visual representation of the I/O rack. Shown will
be all connected I/O racks. The Unit Nr is the same as the connector number in the MUX
unit.
With the button 'Get Config' you can request the actual configuration.

7.7.3 Update embedded software

The menu option 'Update embedded software' shall implement new (or present) software
on all I/O units and the MUX unit, (program files are located in the directory 'Firmware' in
the install directory normally located in C:\Program Files\D&R Electronica B.V.\Sirius
Digital is).
NOTE: This option could cause malfunctioning of the system when applied, be careful!
If the Sirius starts replacing its own software the mixer will be put in an 'idle' mode. It
means that noise could become present on outputs. Switch off any connected speaker to
avoid possible damage to amps and or voice coils.
