5.5 Send modules and output routing

When you have assigned a signal to several busses no audio is to be
heard yet until you have decided which outputs you are going to use for
these assigned signals.

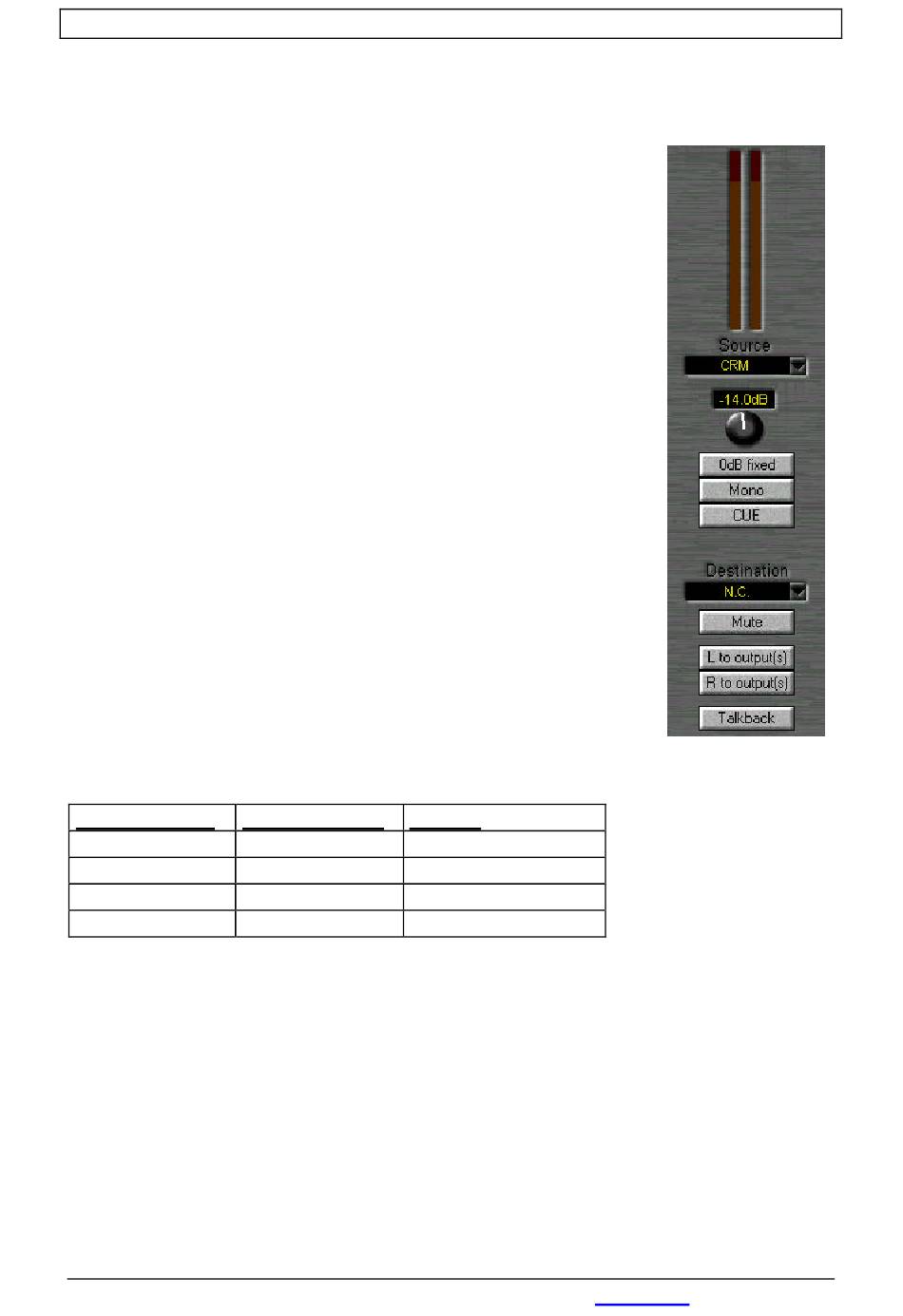

In the send module you can select which audio Source you want to use,
for instance "Prog. 1" (you can make a selection from all output busses,
these busses are considered to be stereo)
Further you have the possibility to adjust the level of the total buss with
the knob in the software, or the hardware motor-pot on the send
modules in your frame.
To have a fixed level on your buss-outputs (eg. for Prog.1) you have the
button '0dB fixed'. This Button doesn't set the hardware knob, but
disables it and make's the audio path unity gain.
The Mono switch makes the buss mono (summing left and right audio).
The CUE button on the send panels gives you the ability to listen to the
audio signal present on these busses.
In the "Destination" section you can select which output can be used for
the selected buss. This type of output matrix/router provides you with
nearly unlimited possibilities for your routing needs. The associated
mute function kills the sound on this dedicated output.
With the 'L to output' and 'R to output' buttons you are able to use the
busses as mono channels. Below you can see the results of different settings:
'L to L+R'-knob
Off
On
Off
On
NOTE:
To avoid any level problem it is possible to fix the output level to 0dB. The associated level pot
becomes inactive then. You are certain now that the output buss level is exactly the same as
the audio level on the buss.
Sirius digital Mixer from D&R Phone +31 294 418014, email:
'R to L+R'-knob Function
Off Stereo
Off Left to left and right
On Right to left and right
On Not possible
