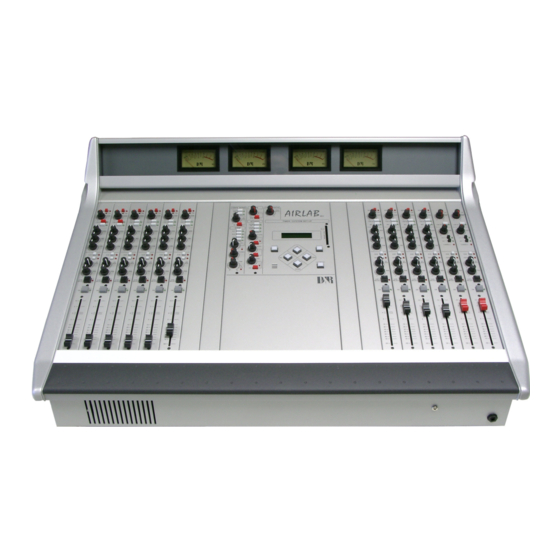

AIRLAB

User Manual

Mixing consoles
Version 2.03
D&R ELECTRONICA WEESP BV
Rijnkade 15B
1382 GS Weesp
The Netherlands
Phone: +31 (294) 418014
Fax: +31 (294) 416987
Website: http://www.d-r.nl
E-mail: info@d-r.nl

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Airlab and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for D&R Airlab

Summary of Contents for D&R Airlab

  • Page 1: User Manual

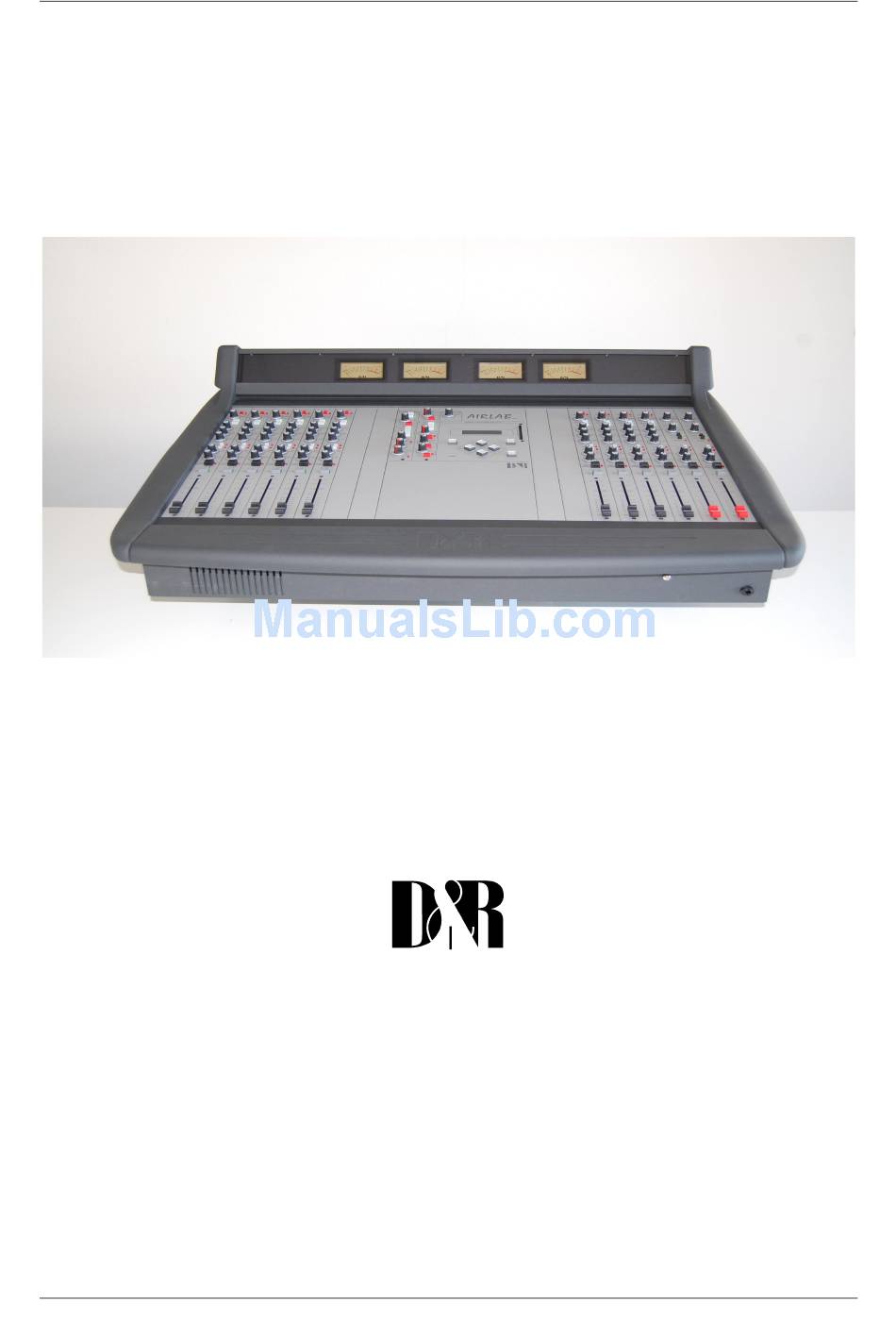

    AIRLAB User Manual Mixing consoles Version 2.03 D&R ELECTRONICA WEESP BV Rijnkade 15B 1382 GS Weesp The Netherlands Phone: +31 (294) 418014 Fax: +31 (294) 416987 Website: http://www.d-r.nl E-mail: info@d-r.nl...

  • Page 2: Table Of Contents

    MASTER SECTION............................29 TIMER AND SYSTEM-SETUP........................32 CUE RESET ............................32 AIRLAB METERING ..........................33 BACK PANEL CONNECTORS......................... 34 AIRLAB MASTER BACK PANEL WIRING ....................37 AIRLAB JUMPER SETTINGS ........................39 12.1 TRIPLE INPUT MODULE........................39 12.2 TRIPLE DIG INPUT MODULE........................ 41 12.3...

  • Page 3: Introduction

    Dear client, Thank you for choosing the Airlab console. The Airlab is designed by specialists in the field of radio broadcast and is intended to be used as a 24 hour "On-Air" console as well as a production console. We are confident that you will be using the Airlab for many years to come, and wish you much success.

  • Page 4: Package Contents

    Package Contents 2 PACKAGE CONTENTS The Airlab package comes with the following parts inside. • 1x Airlab • 1x This manual • 1x Airlab Control Center supporting Win98SE/Win2000/WinXP/WinNT4.0 • 1x Chip card • 1x Power cable...

  • Page 5: System Description

    Airlab Quality The high standard of quality of the Airlab is demonstrated by the welded steel RF screening and sturdy housing, the heavy duty power supply, its modular approach and locking IDC connectors mounted on high quality double sided, plated through, glass epoxy printed circuit boards.
  • Page 6 System Description The Airlab is a complete and self-contained piece of hardware, requiring no additional items in order to be operated. All relevant functions are built-in, such as fader start/stop (pulse or continuously selectable). There is also no need for complex mic-on/cough switching to the announcer booth. A stereo jack, a LED and a simple push-button switch complete this task.
  • Page 7 In this situation, the Airlab is capable of being the main On-Air console due to the two main outputs it contains. These main outputs can be fully transformer balanced as an option.

  • Page 8: Triple Line Input Stereo Module

    Transmits a stereo signal to the AUX master post fader. A jumper on the board determines whether this is pre or post VCA. The channel 'ON' switch also affects the aux send (only when set to post fader). Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 8...
  • Page 9 The CUE switch also acts as a SELECT switch for the programming of the modules functions. Channel on/off switch. The Airlab is capable of sending out a pulse by ON switch as well as by fader. This is software programmable. In any case the adjacent LED will lit when the ON switch is activated.

  • Page 10: Short Overview Of Triple Line Module Functions

    NOTE: Polarity is not important with reed relays! DO NOT CONNECT 115/230VOLT AC TO THIS CONNECTOR!!! Pulse or Continuous Signal: Software programmable between active or not and between pulse or continue Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 10...
  • Page 11 The front end of this module is designed to amplify balanced microphone signals. A +48 Volt phantom power supply is available for condenser microphones. The Airlab has the ultimate in mic amplification with a wide dynamic range and extremely low noise.
  • Page 12 0 dB position in the master VU meter is reached. When the fader is in its 0 dB position, the signal has a nominal level in the Airlab. This way of alignment will give enough headroom to compensate for signal losses of up to 10 dB, whilst the noise floor remains well below the nominal level.
  • Page 13 0 dB reading is achieved. If the `ON' switch is now activated, the signal level will be nominal. When the fader is opened, the CUE signal will be automatically reset, and its associated LED will switch off. Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 13...
  • Page 14 This setup makes production work possible during ON-AIR broadcast due to extremely good cross talk figures achieved in the Airlab console by careful usage of high-end CAD design systems in the initial design stage of the console.
  • Page 15 When the fader is closed, the signal is automatically muted, providing a cut-off in excess of 100 dB. This high dB cut-off value ensures that the main output is protected from cross talk from announcers. Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 15...

  • Page 16: Triple Dig Input Module

    Transmits a stereo signal to the AUX master post fader. A jumper on the board determines whether this is pre or post VCA. The channel 'ON' switch also affects the aux send (only when set to post fader). Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 16...
  • Page 17 The CUE switch also acts as a SELECT switch for the programming of the modules functions. Channel on/off switch. The Airlab is capable of sending out a pulse by ON switch as well as by fader. This is software programmable. In any case the adjacent LED will lit when the ON switch is activated.

  • Page 18: Short Overview Of Triple Dig Input Functions

    NOTE: Polarity is not important with reed relays! DO NOT CONNECT 115/230VOLT AC TO THIS CONNECTOR!!! Pulse or Continuous Signal: Software programmable between active or not and between pulse or continue Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 18...
  • Page 19 The front end of this module is designed to amplify balanced microphone signals. A +48 Volt phantom power supply is available for condenser microphones. The Airlab has the ultimate in mic amplification with a wide dynamic range and extremely low noise.
  • Page 20 0 dB position in the master VU meter is reached. When the fader is in its 0 dB position, the signal has a nominal level in the Airlab. This way of alignment will give enough headroom to compensate for signal losses of up to 10 dB, whilst the noise floor remains well below the nominal level.
  • Page 21 0 dB reading is achieved. If the `ON' switch is now activated, the signal level will be nominal. When the fader is opened, the CUE signal will be automatically reset, and its associated LED will switch off. Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 21...
  • Page 22 This setup makes production work possible during ON-AIR broadcast due to extremely good cross talk figures achieved in the Airlab console by careful usage of high-end CAD design systems in the initial design stage of the console.
  • Page 23 Digital Output: The Airlab Triple digital input has 2 digital outputs. AES3 on the XLR and S/P-dif on de black cinch. Dependent on the jumper setting the output is giving the stereo PROG signal or the stereo SUB-signal. Normal the output level is -9dBFS but the level (headroom) can be adjusted (see also chapter 12).

  • Page 24: Telco Module

    Channel on/off switch. While in closed fader stand-by mode, i.e. when green LED is off incoming calls can be connected by pressing the "ON" switch. FADER Channel VCA volume-control adjusts overall channel level. Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 24...
  • Page 25 The stereo auxiliary sends a post fader signal, dependent upon the 'ON' switch of the input channel, to the master auxiliary busses. The PAN control creates a stereo image in the Aux masters. This setup makes production work possible during ON-AIR broadcast. Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 25...
  • Page 26 ON. FADER The Airlab is fitted with a modern ultra-smooth linear fader controlling a high quality VCA and the Airlab internal logic circuitry. This system eliminates any noise from disturbing the audio signal path. When the fader is closed, the signal will be automatically muted, which provides excellent fader attenuation in excess of 100dB.

  • Page 27: Communication With Telco Module

    (Telco module). There are several software programmable functions available here. In chapter 14 you can find detailed information about the programmable options of the Airlab. ALIGNMENT OF THE CHANNEL With the fader closed (or muted channel) the CUE switch will be activated; the CUE to CRM function in the master section must be activated.

  • Page 28: Module Connectors

    Connector type is jack: REED RELAY MAX VOLTAGE 24VOLT/50mA Center contact Ring Normally open Sleeve = Normally closed MIC INSERT Connector type is jack: Channel SEND Ring Channel RETURN Sleeve = Ground Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 28...

  • Page 29: Master Section

    This input source switch lets you listen to the stereo Aux. outputs. (FROM) AIR This is the input select for the CRM/phones output. Either the program mix is heard in the CRM/phones or the 'from air' signal. Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 29...
  • Page 30 The control room monitor controls the outgoing level to the control room monitors. The level is +6dBu on a cinch connector. A mute LED indicates when the CRM is muted. This is the case when the Airlab is used as “self op” mixer. The DJ channel forces the CRM to mute when the Microphone is active in the control room itself.
  • Page 31 A COM(munication) LED is placed nearby the Announcer control to indicate that the talk back is activated. This is accomplished by pressing the Cough switch on the SiCo remote box, when installed. Airlab from D&R Phone +31 294 418014, email: info@d-r.nl...

  • Page 32: Timer And System-Setup

    • Auto CUE on/off The exact programming will be dealt with in a separate chapter. 9.1 CUE RESET Pressing this large switch resets all activated CUEs in all channels. Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 32...

  • Page 33: Airlab Metering

    Timer and System-setup 9.2 AIRLAB METERING The Airlab is shipped with 4 VU meters. The 2 meters on the left always follow the main program material and the 2 meters on the right side of the meter hood follow the CRM selectors.

  • Page 34: Back Panel Connectors

    Figure 3: The connections on the Master Section ================================================== The mains input is set for 230 volt 50/60 Hz. The Airlab can be set to 115 volt only by qualified technicians ================================================== Airlab from D&R Phone +31 294 418014, email: info@d-r.nl...
  • Page 35 12-volt DC power supply. Connector: Center contact (maximum 24V/50mA) Ring Normally open Sleeve = Normally closed NOTE: These signaling outputs are only to be used for low voltage applications! Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 35...
  • Page 36 Output level is +6 dBu at 47 Ohm. (Transformers are optional) RS232 This computer type connector is the interface between the Airlab and a PC. Through this connector and the delivered software it is possible to program the Airlab on your PC.

  • Page 37: Airlab Master Back Panel Wiring

    Connector type: Cinch, Unbalanced Level: +6dBu / 47 Ohm SUB OUTPUTS Connector type: Male XLR Pin1 = ground Level: +6dBu Pin2 = in phase Pin3 = out of phase Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 37...
  • Page 38 Level is: +6 dBu Pin 2 = in phase Pin 3 = out of phase PHONES OUT STEREO Connector type: Jack Left Level: +20dBu/330 Ohm Ring Right Sleeve = Ground Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 38...

  • Page 39: Airlab Jumper Settings

    1+2 / 3+4 = ON 2+3 / 4+5 = OFF Table 1: Airlab Triple Module Jumper settings Figure 5: Triple Module AUX Jumper settings Figure 6: Triple Module MIC LC Jumpersettings Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 39...
  • Page 40 NOTE: An optional R.I.A.A. phono pre amp can be plugged in here. The 'B' input of the channel can thus be connected directly to a phono cartridge. Jumpers should be removed from the channel completely. Figure 9: R.I.A.A connection on Triple module Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 40...
  • Page 41 Airlab Jumper Settings 12.2 TRIPLE DIG INPUT MODULE Figure 10: Airlab Triple Dig Module Jumper Locations Options Jumpers Settings Settings Default AUX PRE/POST J8 and J9 1 + 2 = POST 3 + 4 = PRE POST LC MIC only...
  • Page 42 ATTENTION: In the ‘PLL’ mode the digital output signal will be muted shortly if you change the digital input selection (‘Line B’ switch) or if the digital input loses its lock. Airlab from D&R Phone +31 294 418014, email: info@d-r.nl...
  • Page 43 Figure 18: Telco Module C-Balance Setting OPTIONAL It's optional to install High quality transformers on the PROGRAM outputs and on the SUB outputs. Please contact your dealer for further information. Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 43...

  • Page 44: Installing/Servicing The Airlab

    Please check that the local mains supply corresponds with the voltage selected on the Airlab mains inlet. The Airlab can be factory set for voltages between 100 - 120 Volts or 220 - 240 Volts. The Airlab is fused with a 2 Amp slow blow fuse for 110 Volt or 1.0 Amp slow blow fuse for 220 Volt. DO NOT use any other value, as this would be hazardous and the Airlab guarantee will be voided.
  • Page 45 Ask your dealer or any radio shop for details. *IMPORTANT* SAFETY PRECAUTION - All 'outside' connections to the Airlab, even from the same building, must be connected via a transformer. This avoids the possibility of ground loops and 'hums'. The shielding must be connected to the source side.
  • Page 46 NOTE: This alignment has already taken place at the factory, however if you later on extend the AIRLAB with another TELCO module you need to follow the next steps for a correct alignment of the N-1 signal for every new installed TELCO module.
  • Page 47 A direct connection with the incoming phone company gives best results. NOTE: INSTALLATION OF NEW (EXTRA) MODULES When installing new (extra) modules in your Airlab it's necessary to re-adjust the internal power supply voltages to guarantee a stable performance at all times.

  • Page 48: How To Program The Airlab

    This is the menu that's normally active. But before we go into this menu we need to program the Airlab conform to your requirements. This can be done without opening the frame. Very convenient, isn't it? BEFORE YOU START TAKE NOTICE OF THE FOLLOWING INFORMATION To save all the work you've done you simply hit the ENTER switch and all settings are stored in the internal memory of the Airlab.
  • Page 49 If you have already programmed several modules, the moment you enter this menu again the LED’s located near the SELECT switch will light up on the modules that are enabled to trigger the fader start. Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 49...
  • Page 50 If you have already programmed several modules, the moment you enter this menu again the LED’s located near the SELECT switch will light up on the modules that are enabled to generate a fader start. Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 50...
  • Page 51 If you have already programmed several modules, the moment you enter this menu again the LED’s located near the SELECT switch will light up on the modules that are giving a Pulse on the start jack. Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 51...
  • Page 52 LED’s located near the SELECT switch will go on, on those modules that are capable of activating the CUE by a remote switch when the MIC input is selected. Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 52...
  • Page 53 If you have already programmed several modules, the moment you enter this menu again the LED’s located near the SELECT switch will light up on the modules that are programmed to handle the Studio MIC input. Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 53...
  • Page 54 If you had already programmed several modules, the moment you enter this menu again the LED’s located near the SELECT switch will go on, on those modules that are toggling the ON-AIR 1 relay when MIC is selected. Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 54...
  • Page 55 LED’s located near the SELECT switch will light up on the modules that are toggling the ON-AIR 2 relay when MIC is selected. Airlab from D&R Phone +31 294 418014, email: info@d-r.nl...
  • Page 56 If you have already programmed several modules, the moment you enter this menu again the LED’s located near the SELECT switch will light up on the modules that are assigned for MIC-mode in LINE B. Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 56...
  • Page 57 If you have already programmed several modules, the moment you enter this menu again the LED’s located near the SELECT switch will light up on the modules that are capable of Switch Start. Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 57...
  • Page 58 Pressing the ESC switch instead will discard all the changed settings in the last session. You have now completed the modules set-up and it is now time to go to the Master settings. Airlab from D&R Phone +31 294 418014, email: info@d-r.nl...

  • Page 59: Master Settings

    RS232 Enable RS 232? The RS232 option enables you to connect the Airlab to a PC. Basically The Airlab software is a graphical user interface version of the software structure inside the Airlab.

  • Page 60: System Setup

    CONFIGURATION Config The first item in the System menu is the configuration screen. This screen displays the current configuration of the Airlab. XX represents the number of Stereo modules available on the StMod:XX Telco:YY console and YY represent the number of Telco modules available on the console.
  • Page 61 All the above explained programming and storing of data can be performed on a Windows PC. You need to connect the RS232 SubD9 connector of the Airlab to the RS232 connector of your PC and load the Airlab software. All module and master programming can be dealt with on one PC screen. In this way you will have a total view of your settings on one screen.

  • Page 62: Timer

    14.4 TIMER As earlier mentioned the Airlab has a built in Timer, which is practical and easy to use.The Timer menu is the basic menu that the Airlab always shows. To activate the timer it is necessary to first program the modules and make up your mind which modules and in which mode they should trigger the Timer.

  • Page 63: Menu Diagram

    How to program the Airlab 14.5 MENU DIAGRAM The menu diagram displays the menu structure as it is programmed in the Airlab. Timer Module Settings Master Settings System LineA Timerstrt? Auto Cue Reset? Config LineB Timerstrt? CUE to CRM? Recall Mic.

  • Page 64: Windows Software

    15.2 GETTING STARTED Before you run the software be sure to connect the Airlab to the PC correctly. If this isn't the case you'll see the following error message: Clicking the OK button continues to startup the Airlab application but without any software control.
  • Page 65 Figure 22: Status bar As you can see we can have a total of 16 modules in the Airlab. The configuration, as shown in the second column, consists from 12 triple line modules and 2 Telco modules. The last two slots aren't used in this case.
  • Page 66 For a detailed overview off all module settings you can read section 14.1 of this manual. The Master settings in the application are nearly identical to the Master setting of the Airlab. The main difference is the fourth option.

  • Page 67: Specifications

    590 mm Depth When inserting the Airlab in its mounting hole first position the armrest side in the hole and slowly lower the back side holding the wood ends on either side of the console. Mount the back panel after installation to finish the job neatly.

  • Page 68: Sico Remote Unit

    AIR signaling outputs 1 and 2 offer the option of driving external red light indicators in the studio by way of a relay. The input jack of the Sico Remote unit needs to be wired to the master of the Airlab, Guest or Announcer outputs or whatever suits your purpose mostly.

  • Page 69: Director Unit (Discontinued)

    XLR connector is provided for the headset. A separate Mic input and headphone output is also available. Figure 30: Director Two large On-Air LEDS are indicating that the Airlab console is ON-Air. Level control for Headphone, Mic input and internal speaker are provided for. The back panel has 4 adjustments for the Telco levels and all interfacing with the Airlab.

  • Page 70: List Of Figures

    Figure 2: The Master Section ........................ 29 Figure 3: The connections on the Master Section ................. 34 Figure 4: Airlab Triple Module Jumper Locations .................. 39 Figure 5: Triple Module AUX Jumpersettings..................39 Figure 6: Triple Module MIC LC Jumpersettings ................... 39 Figure 7: Triple Module Phantom Power Jumper settings..............

  • Page 71: List Of Tables

    List of tables 20 LIST OF TABLES Table 1: Airlab Triple Module Jumper settings ..................39 Table 2: Airlab Triple Dig Module Jumper settings................41 Table 3: Airlab Telco Module Jumper settings ..................43 Airlab from D&R Phone +31 294 418014, email: info@d-r.nl...

  • Page 72: Airlab User Questionnaire

    (Dealer / Advertisement / Exhibition / Other user / Other) WHAT JOURNALS DO YOU TAKE ON A REGULAR BASIS? .............................. WHAT IS YOUR OPINION OF THE PRICE/QUALITY OF THE 'AIRLAB'? .............................. WHAT PRICE WOULD YOU CONSIDER SUITABLE FOR THE 'AIRLAB'? ..............................

  • Page 73: Product Safety

    And last but not least be careful not to touch a person being shocked as you, yourself could also be shocked. Once removed from the shock, have someone send for medical help immediately Airlab from D&R Phone +31 294 418014, email: info@d-r.nl...
  • Page 74 D&R ELECTRONICA B.V. WEESP HEAD OFFICE D&R Electronica Weesp b.v. Rijnkade 15B 1382 GS WEESP THE NETHERLANDS Phone: +31 (294) 418 014* Fax: +31 (294) 416 987 Website: http//www.d-r.nl E-mail: info@d-r.nl Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 74...

  • Page 75: Declaration Of Conformity

    CE Marking Directive 93/68/EEC (1993). D&R Electronica Weesp b.v. Rijnkade 15 B 1382 GS WEESP The Netherlands President of Engineering May 8, 2008 Duco de Rijk Compliance Program Manager Signature Date Name Title Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 75...

  • Page 76: Disclaimer

    (collectively "Indemnified Parties") from and against any and all liability incurred by or made against the Indemnified Parties in connection with any claim arising from or related to your use. Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 76...
  • Page 77 Airlab.sch-1 - Fri Aug 20 14:30:15 1999...
  • Page 87 Airlb20p.sch-1 - Thu Feb 07 13:52:55 2002...
  • Page 96 airlb8p.sch-1 - Thu Feb 07 13:09:57 2002...
  • Page 97 airlb8p.sch-1 - Thu Feb 07 13:09:03 2002...
  • Page 98 Airlb7p.sch-1 - Fri Aug 20 15:09:31 1999...
  • Page 99 2.0000 .10300408 Potm.97 10OKBx2 CC 3.0000 .10300400 Potm.97 10KAx2 1.0000 .10300403 Potm.97 l0KBx2 CC 2.0000 .10201418 Print Airlab 10A (channel 1/0) 1.0000 .10201411 Print Airlab 1A (channel) 1.0000 .10550001 Relais DlC121000 lxchnge minid 1.0000 .10550395 Schakelaar Alps 2p-ns (moment) 2.0000 .10550414...
  • Page 101 Led 3mm red SLR-03A510-020 4.0000 10700690 Platstaf 25 x 10 x 10mm 1.0000 10700611 Popnagel 3.0 x 6.5 blank 2.0000 20851418 Printb Airlab 10 (channel 1/0) 1.0000 20851411 Printb Airlabl (channel) 1.0000 10700616 Taptite M3x10 bolkoppozidr/zw. 1.0000 10700786 Taptite M3x5 verzkop/pozidr/zw 2.0000...
  • Page 102 Potm.97 10OKBx2 CC 1.0000 .10300400 Potm.97 10KAx2 1.0000 .10300403 Potm.97 loKBx2 CC 1.0000 .10201418 Print Airlab 10A (channel 1/0) 1.0000 .10201412 Print Airlab 2A (telco) 1.0000 .10550001 Relais DlC121000 lxchnge minid 2.0000 .10550010 Relais MR62 DIP 12V (2 x om) 1.0000...
  • Page 104 Led 3mm red SLR-03A510-020 4.0000 10700690 Platstaf 25 x 10 x 10mm 1.0000 10700611 Popnagel 3.0 x 6.5 blank 2.0000 20851418 Printb Airlab 10 (channel 1/0) 1.0000 20851412 Printb Airlab2 (telco ch) 1.0000 10700616 Taptite M3xl0 bolkoppozidr/zw. 1.0000 10700786 Taptite M3x5 verzkop/pozidr/zw 2.0000...
  • Page 105 0.3000 .10100008 Montageplaat 9.511 2.0000 .10700603 Parker 2.9 x 9 zwart 8.0000 .10200610 Print Aircom- 9d (powersupply) 1.0000 .10201416 Print Airlab 6a (cpu/mux) 1.0000 .10700011 Schuimrubberstr 2000xl2Oxl2mm 0.4000 .10700012 Skai SPARTA Donker grijs 112 0.2000 .10250333 Transistor BC-327/25 (pnp) 1.0000 .10250332...
  • Page 107 10800966 Schuimblok 8Oxl4Ox280mm 2.0000 10700677 Soldeerlip klein 1.0000 10700787 Taptite M3x6 bolkoppozidr/zwrt 16.0000 10700681 Tywrap kort 94 mm blank 1.0000 10700679 Tywrap plakzadel 21 x 21 mm 1.0000 10990703 Zekering 500mA slow 5x2Omm 1.0000 10750758 Zijkant Airlab-A Ral 7042(L+R) 1.0000...
  • Page 108 .10600530 Jack chass. slimline S253-84 4.0000 .10300400 Potm.97 10KAx2 6.0000 .10300403 Potm.97 l0KBx2 CC 2.0000 .10201419 Print Airlab 30a (master 1/01) 1.0000 .10201413 Print Airlab 3a (ctr/aux/tape) 1.0000 .10201420 Print Airlab 40a (master 1/02) 1.0000 .10201414 Print Airlab 4a (studio/tb) 1.0000...
  • Page 109 .10350776 Weerstand 10MO 5% 1/4W 11.0000...
  • Page 110 Platstaf 25 x 10 x 10mm 2.0000 10101230 Plexiglas 16x2 display 1.0000 10700611 Popnagel 3.0 x 6.5 blank 4.0000 20851419 Printb Airlab 30 (master 1/01) 1.0000 20851420 Printb Airlab 40 (master 1/02) 1.0000 20851415 Printb Airlab 5 (lcd/keyb) 1.0000 20851421 Printb Airlab 50 (chipcard) 1.0000...
  • Page 112 Knob SiF Rub/Red TPN110 006/13 24-04-03 1.0000 50/ 1 10300094 Fader ALPS-Klin 100mm 10kB 8mm 01-04-00 1.0000 60/ 1 10101251 Front Airlab-1c (Input Chan.) 01-04-00 1.0000 70/ 2 10450009 Knob TAK12x12-107 A3.3 GREY 23-02-01 1.0000 80/ 2 10450010 Knob TAK12x12-107 A3.3 Black 23-02-01 1.0000...
  • Page 113 Resistor 47K 5% 1/4W 27-09-06 2.0000 820/ 1 10350735 Resistor 5% 1/4W 27-09-06 2.0000 830/ 1 10250382 Led 3mm Bi-Colour Airlab dig 27-09-06 1.0000 170/ 1 20851418 PCB ins Airlab10 channel I/O 01-04-00 1.0000 10/ 1 10250342 Diode 1N4148 (signal) 01-04-00 1.0000...
  • Page 114 Datum : 22-11-06 [11:26] PRODUKTIESTUKLIJSTSTRUCTUREN R&D Blad D&R Electronica Weesp B.V. Bedrijf : 100 Maakartikel 60881703 Airlab Digital channel Vrd.eenh.: st Revisie Niveau Positie Artikel Omschrijving Ingangs- Verval- Netto datum datum hoeveelheid 80/ 1 10600534 Stacking Jack NSJ12HC 29-03-06 1.0000...
