EVAL-ADIS Mounting
Use the M2x0.4x6mm machine screws (provided in pink bag ANALOGKIT2) for mounting the
ADIS16COM1/PCBZ to the

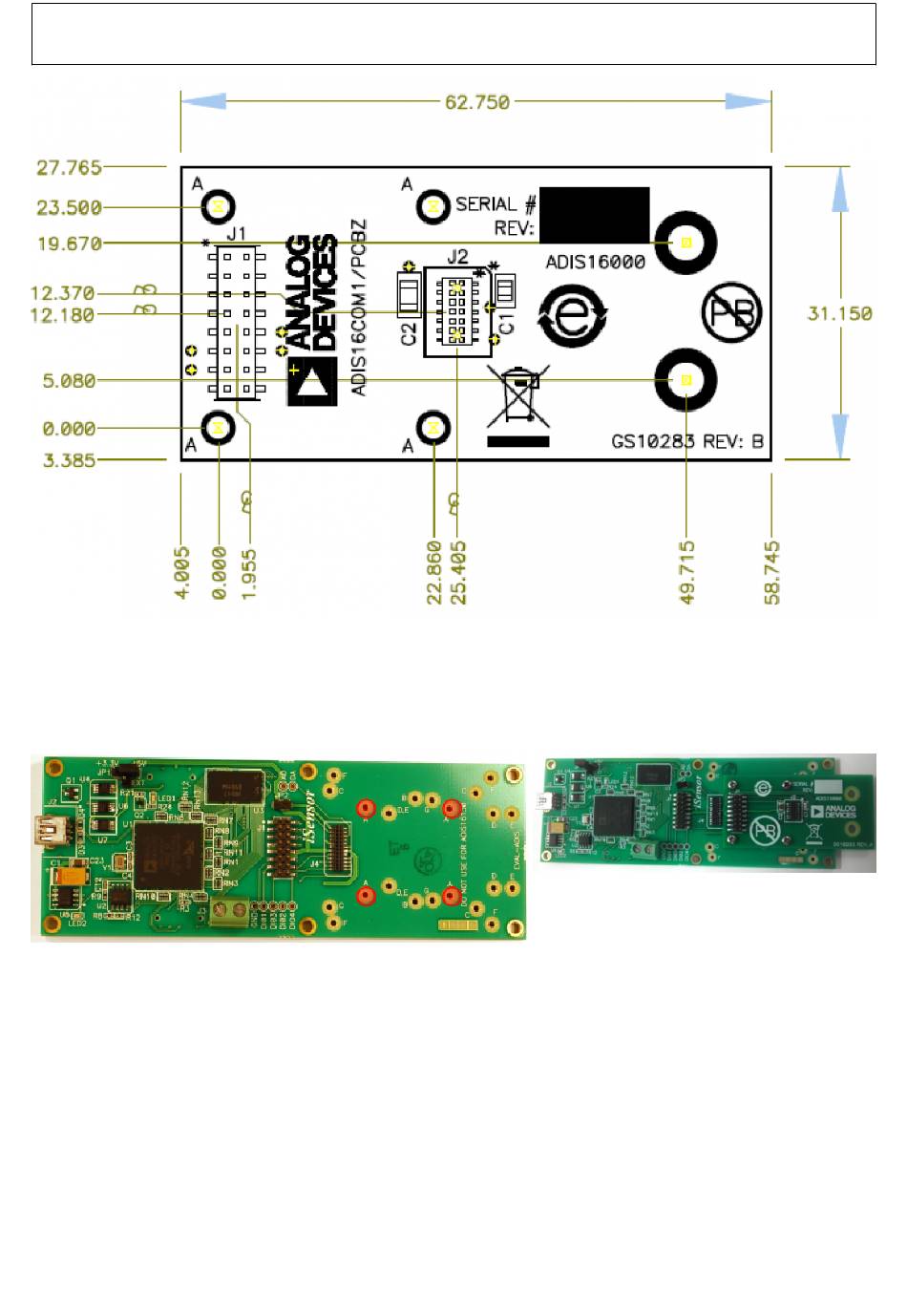

top-view picture illustrate the location of the mounting holes.
ADIS16000 Mounting on ADIS16COM1/PCBZ
Use the M3x0.5x12mm machine screws and M3x.5x Hex nuts with the M3 washers optional(provided
in pink bag ANALOGKIT2) for mounting
their torque for 20 inch-ounces. The red-highlights in the top-view picture illustrate the location of the
mounting holes for these products. Attach the 16 pin ribbon cable included with the
connect the J1 connectors. For high-vibration environments, consider using more than 2 screws, per
AN-1045
EVAL-ADIS
and set their torque for 20 inch-ounces. The red-highlights in the
ADIS16000AMLZ
Rev 29 Aug 2013 21:21 | Page 2
product to the ADIS16COM1/PCBZ and set
EVAL-ADIS
to
