Optional Inputs - Dynojet PCV F/I Installation Instructions Manual

FIG.K
12v, BLK/RED
FIG.L
22-035 www.powercommander.com

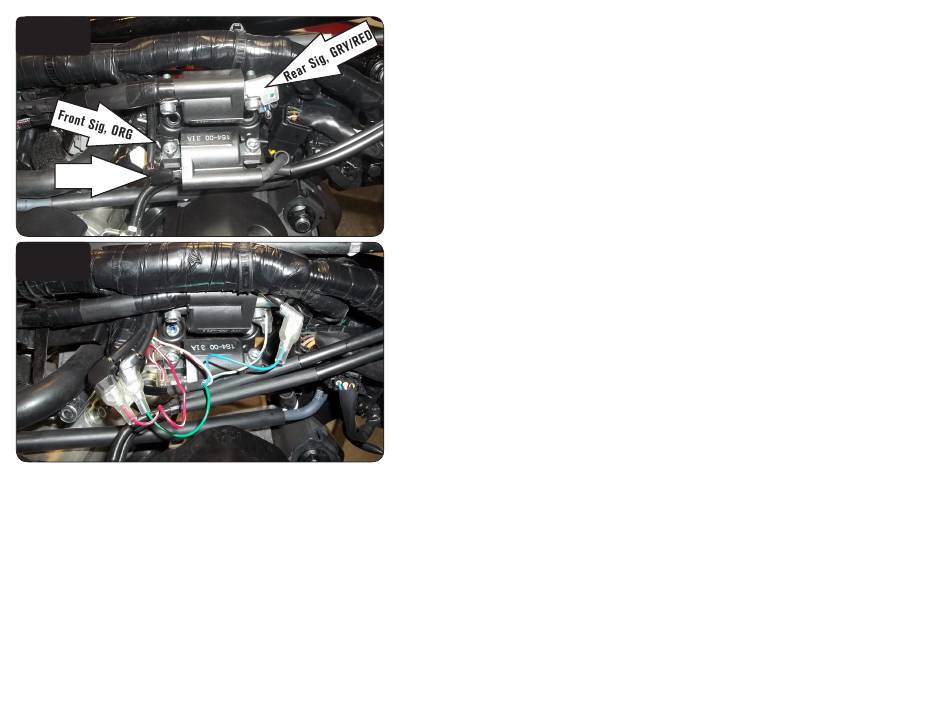

16 Locate and unplug the 12 volt wire (BLACK/RED) from the Front Cylinder
Ignition Coil, the signal wire (GREY/RED) from the Rear Cylinder Ignition Coil,
and the signal wire (ORANGE) from the Front Cylinder Ignition Coil (Fig. K).
17 Plug the pair of RED/WHITE wires with spade terminals of the PCV in-line of
the Front Ignition Coil spade and the stock BLACK/RED wire.
18 Plug the pair of BLUE & WHITE/BLUE leads with spade terminals of the PCV
in-line of the Rear Ignition Coil spade and the stock GREY/RED wire.
19 Plug the pair of GREEN & WHITE/GREEN leads with spade terminals of the
PCV in-line of the Front Ignition Coil spade and the stock ORANGE wire
(Fig. L).

Optional Inputs:

Speed input location - WHITE/YELLOW wire of vehicle speed sensor rear
of the front drive sprocket
12v for Auto-tune - BLUE wire of 3-pin connector for tail light
2014-2017 Yamaha Bolt 950 & SCR950 - PCV F/I - 6
