Parts List
1

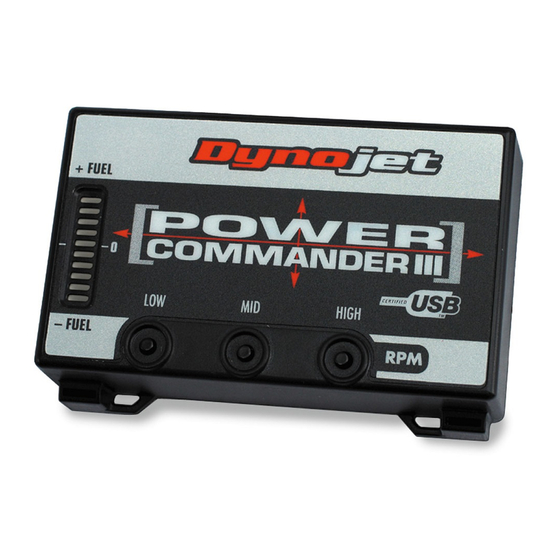

Power Commander
1
USB Cable
1
CD-ROM
1
Installation Guide
1
Power Adapter
2
Power Commander Decals
2
Dynojet Decals
2
Velcro
Strip
®
1
Alcohol Swab
The ignition MUST be turned
OFF before installation!
You can also download the Power
Commander software and latest maps
from our web site at:
www.powercommander.com
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89031 (800) 992-4993 www.powercommander.com
i415-411
www.powercommander.com
2005 Yamaha YZF 600 R6
Installation Instructions
Button Adjustment Display
Faceplate Buttons
Expansion Port
USB Port
2005 Yamaha YZF 600 R6 - PCIII USB - 1
Advertisement
Table of Contents
Related Manuals for Dynojet Power Commander 3
Summary of Contents for Dynojet Power Commander 3
-
Page 1: Parts List
Commander software and latest maps from our web site at: www.powercommander.com PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89031 (800) 992-4993 www.powercommander.com i415-411 www.powercommander.com 2005 Yamaha YZF 600 R6 - PCIII USB - 1... - Page 2 Remove the main seat and passenger seat. Lift the front of the fuel tank up and use something to keep it propped up. Remove the plug shown in Fig. A Rest the PCIII in tail section temporarily. Remove this plug Route the connectors from the PCIII thru the opening in the inner fender one at a time.
- Page 3 Locate the black and the white 6 pin connectors under the fuel tank. Stock connectors Unplug these connectors. Plug the connectors from PCIII in line of the stock connectors. Plug in PCIII connectors the black connectors from the PCIII to the black connectors of the stock wiring harness.
