Dynojet PCV F/I Installation Instructions Manual page 3

FIG.A
FIG.B
FIG.C
PCV harness
22-035 www.powercommander.com
Ground
1 Remove the seat.
2 Remove the fuel tank.
3 Remove both side covers beneath the seat.
4 Loosen the ECM strap and lift the ECM out of place to access the battery.

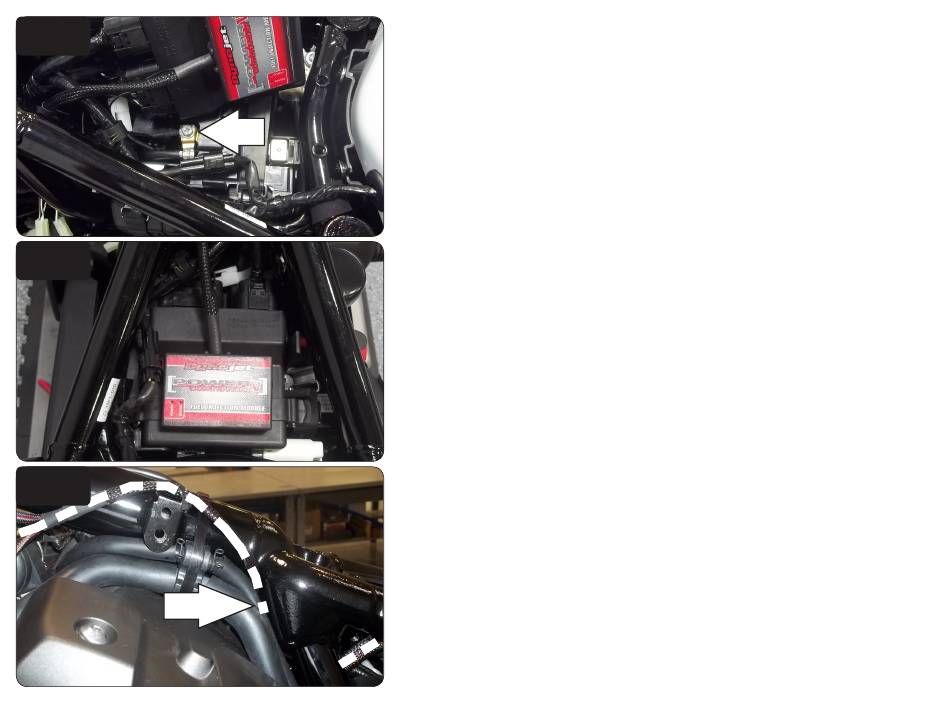

5 Attach the ground wire of the PCV to the negative side of the battery (Fig. A).
6 Reinstall the ECM back into place.
7 Secure the PCV module to the top of the ECM (Fig. B).
You can secure the PCV module under the stock ECM strap or use the
supplied Velcro to secure the module to the top of the ECM. If using the
Velcro, clean the surface with the supplied alcohol swab prior to applying the
Velcro.
8 Route the PCV harness forward going under the frame tubes directly under
the seat, and then upward along the backbone of the frame and towards the
engine (Fig. C).
2014-2017 Yamaha Bolt 950 & SCR950 - PCV F/I - 3
