Dynojet PCV F/I Installation Instructions Manual page 5

FIG.G
FIG.H
TPS
FIG.J
22-035 www.powercommander.com

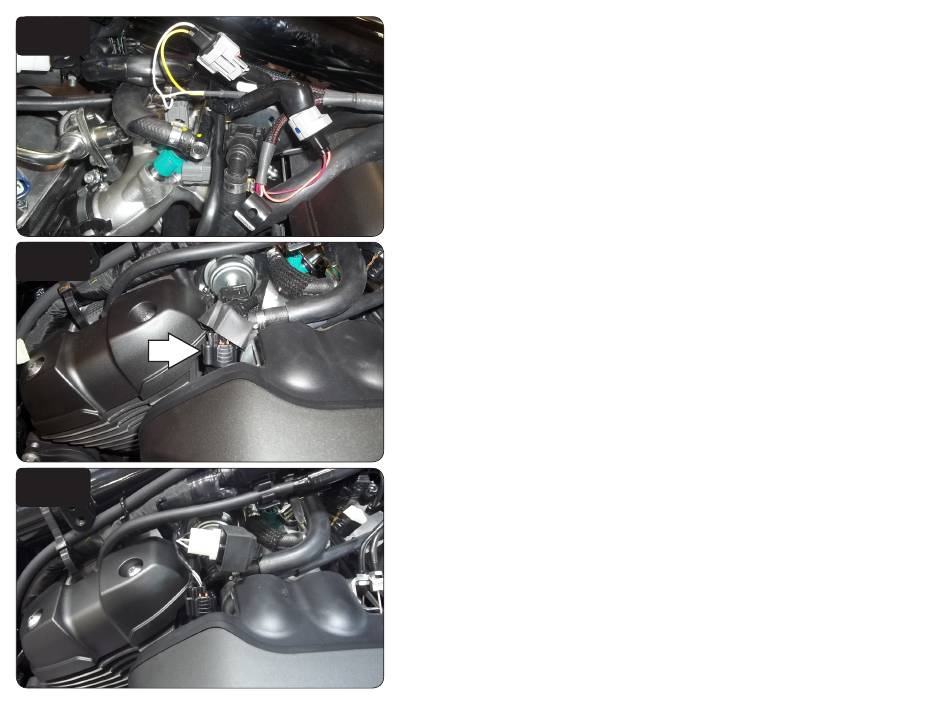

12 Plug the matching pair of PCV Injector leads with the ORANGE colored wires
in-line of the FRONT Cylinder Fuel Injector and stock wiring harness.
13 Plug the matching pair of PCV Injector leads with the YELLOW colored wires
in-line of the REAR Cylinder Fuel Injector and stock wiring harness (Fig. G).
14 Locate and unplug the Throttle Position Sensor connector (Fig. H).
This connector is located on the rear of the throttle bodies.
15 Plug the matching pair of connectors from the PCV in-line of the stock wiring
harness the bike's TPS (Fig. J).
2014-2017 Yamaha Bolt 950 & SCR950 - PCV F/I - 5
