TM
M 2 M - 7 1 0 D
User's Manual
Version 1.00
| | | | 24

Advertisement

Table of Contents
loading

Related Manuals for ICP DAS USA M2M-710D

Summary of Contents for ICP DAS USA M2M-710D

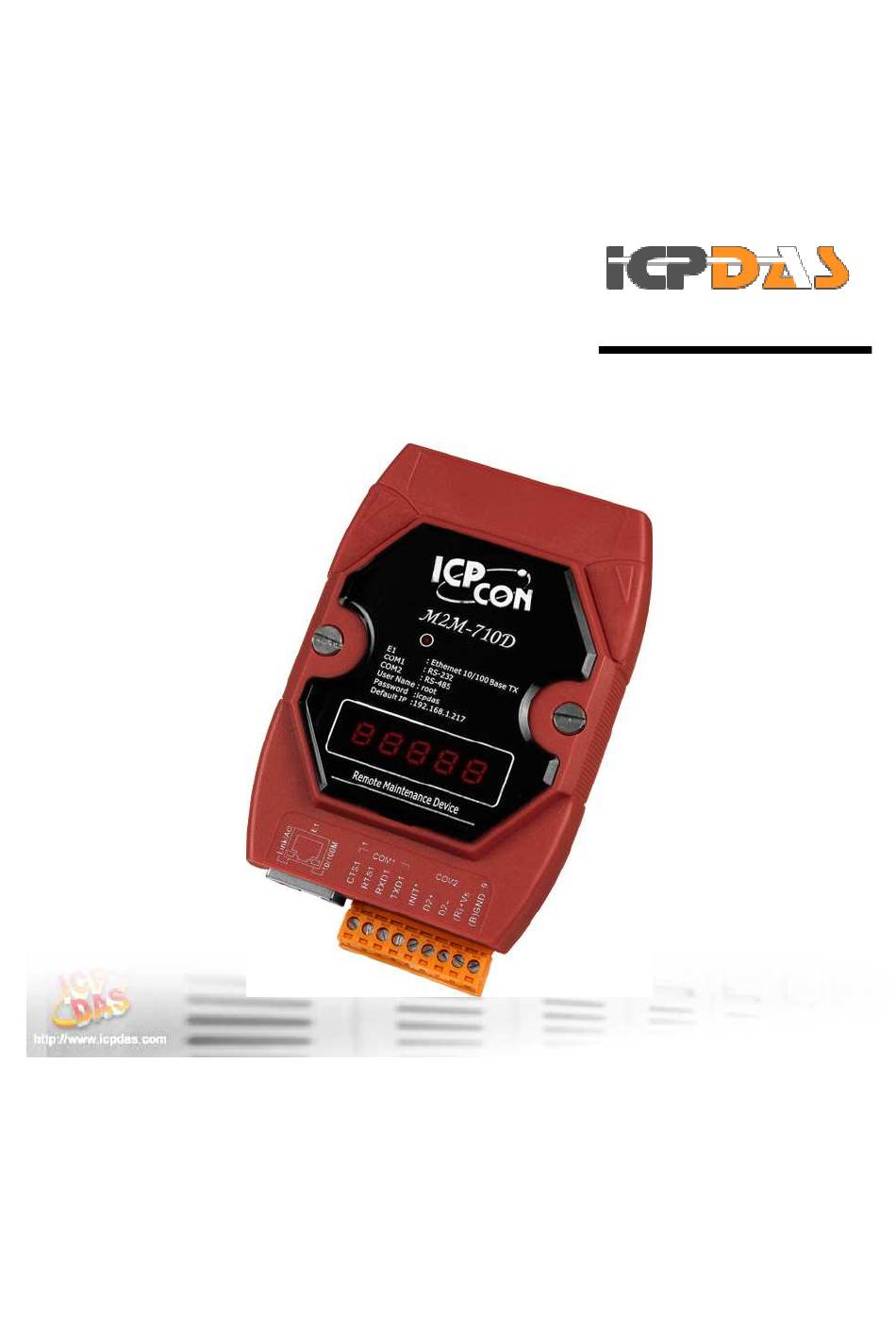

  • Page 1 M 2 M - 7 1 0 D User’s Manual Version 1.00 | | | | 24...
  • Page 2 Copy right 2009 by ICP DAS. All rights are reserved. Trademark The names used for identification only may be registered trademarks of their respective companies. List of Revision Date Author Version Revision 2009/03/13 Jiunan 1.00 Release M2M-710D User Manual (Version 1.00, Mar/2009) PAGE：I...

  • Page 3: Table Of Contents

    3.3.4 DDNS Config ..........................25 3.3.6 Operation Mode ..........................29 3.3.7 Information ............................. 30 4. Application ..........................31 5. Troubleshooting .......................... 33 6. FAQ ............................. 34 7. Dimensions..........................37 8. Frame Ground ..........................39 M2M-710D User Manual (Version 1.00, Mar/2009) PAGE： II...

  • Page 4: Introduction

    1. Introduction The M2M-710D module is specially designed for the remote maintenance solution. It can be used to maintain the remote machines with other module(ex：M2M-710D、M2M-711D、M- 4132…etc) through Ethernet. Servicemen can maintain remote machines as real as he has been on the spot. That can not only reduce the business travel cost, but also save the time of waiting for maintaining equipments.
  • Page 5 It is more flexible to management the remote machines with M-4132. The application frame is as following: Figure 2 apply with M-4132 Besides the above function, the M2M-710D may help the serial system to upgrade to internet frame without changing any software. Figure 3 example of serial communication The remote system includes a server, and more than one for clients.

  • Page 6: Features

    Built-in MiniOS7 OS to keep off the computer virus Ethernet Protocol: TCP, UDP, IP, ICMP, ARP, RARP Provide dynamic DNS function Supply static IP/DHCP Supply DDNS(Dynamic DNS) Quick start 5-Digit 7 Segment LED Display EMI, RoHS compliance M2M-710D User Manual (Version 1.00, Mar/2009) PAGE：3...

  • Page 7: Hardware Specifications

    Operating Environment Operating Temperature -25 ~ +75 °C Storage Temperature -40 ~ +80 °C Power Protection Power Reverse Polarity Protection Required Supply Voltage 10 ~ 30 V (non-regulated) Power Consumption 2.7 W for M2M-710D M2M-710D User Manual (Version 1.00, Mar/2009) PAGE：4...

  • Page 8: Statement Of Connection Mode

    M2M-710D has two kind of communication mode. They are RM client and RM server the mode respectively. RM Client mode: In this mode, M2M-710D is set as the client mode, which may connect with remote M-4132, M2M-710D or other supporting RM server products. If host name of client is the same one as the setting name in server mode, the communication will build up quickly.

  • Page 9: Hardware

    INIT Init Pin DATA+ Data+ of RS-485 DATA- Data- of RS-485 Vs of Power Supply GND of Power Supply 8-PIN of RJ-45 definition Name Description TX+ output TX- output RX+ input RX- input M2M-710D User Manual (Version 1.00, Mar/2009) PAGE：6...

  • Page 10: Wiring Instructions

    The M2M-710D module is a DTE and the user can uses “3-wire” RS-232 or “5-wire” RS- 232 to connect. When connecting the M2M-710D to a DCE device, the user just needs to match the signal names.
  • Page 11 Figure 7 connection of RS-485 2.2.3 Ethernet connection When the M2M-710D works as a client, it should adjust the firewall before the M2M- 710D module appropriately is used or else the client will not connect to the server. Figure 8 Ethernet connection M2M-710D User Manual (Version 1.00, Mar/2009)

  • Page 12: Init Switch And Init Pin

    2.3 Init Switch and Init Pin There are an Init switch and Init Pin inside M2M-710D to make it into initial mode. If Init Pin connects to GND or Init Switch is selected for init mode, system will clear all EEPROM information.

  • Page 13: 5-Digit 7 Segment Led Display

    Baud Rate: 300 ~ 115200 data: 7 or 8 Parity: 0(None) or 1(Even) or 2(Odd) Stop bit: 1 Listen: When M2M-710D starts successfully in server mode, it would be in listen mode to wait the connecting from the client. Listen Information Listening Serial communication: When the client connects to the M2M-710D, it will display the information of comport.
  • Page 14 Baud rate 9600 Date Parity none Stop bit Local IP Listen port Comport port setting M2M-710D User Manual (Version 1.00, Mar/2009) PAGE：11...
  • Page 15 50 seconds. Login Information Connecting: The word “Conn.” twinkled Login: Display the word “Conn.” Serial communication: When the M2M-710D connects to the server, it will display the information of comport. For example. Serial communication Information Port:1 Date:8...
  • Page 16 Server IP 192.168.1.210 Listen port Baud rate 9600 Date Parity none Stop bit Local IP Server IP Connected port Comport setting M2M-710D User Manual (Version 1.00, Mar/2009) PAGE：13...
  • Page 17 M2M-710D User Manual (Version 1.00, Mar/2009) PAGE：14...

  • Page 18: Configuration And Operation With Web Browser

    710D by web browser (ex: IE). 3.1 Connection Setting Before you open the web browser to configure the module, it needs to connect the M2M-710D and your PC in the same sub network or same Ethernet Switch (as shown in figure 7) and set network settings (such as IP/Mask/Gateway) of the PC.
  • Page 19 2. Double click “Local Area Connection” icon 3. Click “Properties” button Figure 12 click “Properties” button 4. Select “Internet Protocol (TCP/IP)” and click “Properties” button Figure 13 click “Properties” button M2M-710D User Manual (Version 1.00, Mar/2009) PAGE：16...
  • Page 20 Step 2: Set “Internet Protocol Properties” and then click “OK” button. The settings must have the same domain and different IP with the M2M-710D. (Ex: M2M- 710D’s default IP = 192.168.1.217, PC’s IP = 192.168.1.210). Figure 14 set “Internet Protocol Properties Step 3: test connection 1.
  • Page 21 (figure 14), it means the network settings between PC and the module are not correct. Please check the network is available and the settings are all correct. Figure 17 Ping IP Error If the network settings are correct, it will show “Packets: Sent=4, Received=4, Lost=0“. M2M-710D User Manual (Version 1.00, Mar/2009) PAGE：18...
  • Page 22 Figure 18 Ping IP OK M2M-710D User Manual (Version 1.00, Mar/2009) PAGE：19...

  • Page 23: Web Configuration-Function Menu

    Figure 19 Web Configuration page When the browser connects with the M2M-710D, Figure 16 is the first page. The left side is the function menu and the other is the setup page in the first page. Server and Client is different in the function menu, as shown in the below.
  • Page 24 Operation Mode Information Information Reboot The “Reboot” button can provide the user to restart the M2M-710D. M2M-710D User Manual (Version 1.00, Mar/2009) PAGE：21...

  • Page 25: Web Configuration-Setup Page

    Figure 21 User Account page 3.3.3 Standard Config When the user changes the setting in this page, the user must restart the M2M-710D for an active setting. The system has two kind of mode. Server mode: There are 2 operation modes in M2M-710D. They are “Server”...
  • Page 26 There are 2 operation modes in M2M-710D. They are “Server” and “Client”. The user can set the M2M-710D to be a server or client in this page. When the M2M-710D System plays the role of client, it will try to connect with the server.
  • Page 27 Figure 22 Standard Config page M2M-710D User Manual (Version 1.00, Mar/2009) PAGE：24...

  • Page 28: Ddns Config

    3.3.4 DDNS Config When the M2M-710D plays the role of server and Boot Protocol isn’t “Static IP”, the client may not connect with the server, because the IP address of the server is floating, not static. We provide a solution for this situation. That is DDNS service. When IP address of the server is changed, the server will register current IP to website that provides DDNS service.
  • Page 29 Click “Services” Hyperlink to enter Services page Figure 24 click ”Services” Hyperlink d. Click “Dynamic DNS” Hyperlink to enter Dynamic DNS page Figure 25 click ” Dynamic DNS” Hyperlink M2M-710D User Manual (Version 1.00, Mar/2009) PAGE：26...
  • Page 30 Key in and select your hostname (ex: icpdas.home linux.com), and key in IP address of the server. Don’t care the other settings and click “Create Host” button. Figure 27 Add New Hostname Figure 28 Create New hostname success M2M-710D User Manual (Version 1.00, Mar/2009) PAGE：27...
  • Page 31 Figure 29 DDNS Config page 3.3.5 Com Port Config The user can set com port setting of M2M-710D in this page. If com port setting of the server and client is different, Com port setting of the client will be covered by the server.

  • Page 32: Operation Mode

    1 / 2 stop bits Stop Bits Select stop bits of com port. None / Hardware / XonXoff Flow Control Select flow control of com port. User can set current communication parameters from this Get Status button. M2M-710D User Manual (Version 1.00, Mar/2009) PAGE：29...

  • Page 33: Information

    “Listen” System wait for listen. Server “Communication” Server communicate with client “Initok" System initial “try to connect” Client try to connect server Client “Login” Client Login successful “Communication” Server communicate with client Figure 32 Information page M2M-710D User Manual (Version 1.00, Mar/2009) PAGE：30...

  • Page 34: Application

    4. Application Application with M-4132 M2M-710D can be applied with M-4132. In this application, the M2M-710D is set as Client several mode, and then M-4132 have RM Manager server function that can manage RM client, and each of RM Client have different host name. This frame may apply in various applications more flexibly.
  • Page 35 Figure 34 Pair connection (one server to one client) M2M-710D User Manual (Version 1.00, Mar/2009) PAGE：32...

  • Page 36: Troubleshooting

    5. Troubleshooting The troubleshooting list can help users to resolve the problems when using the M2M-710D. If the problem still can't be solved, please contact with the technical staff of ICP DAS. Table Errors and solutions Item Trouble state Solution...

  • Page 37: Faq

    6. FAQ Q1: If I forget the M2M-710D’s IP, how can I set and operate the M2M-710D by web browser? A1： (1) ：Please reset system, and IP address will show again. Figure 35 Display IP address (2)：Init M2M-710D reference 2.3. Default value of IP address is 192.168.1.217 Q2: Client can not connect to Server.
  • Page 38 A3: Please follow the steps to check below. Step 1: Confirm client’s name is the same as server permission name list. Step 2: Confirm comport setting of server and client. Server comport setting must the same setting as client. M2M-710D User Manual (Version 1.00, Mar/2009) PAGE：35...
  • Page 39 Figure 39 Comport setting of server Figure 40 Comport setting of client Step 3: Does the inspection wiring have the question? M2M-710D User Manual (Version 1.00, Mar/2009) PAGE：36...

  • Page 40: Dimensions

    7. Dimensions (Unit: mm) M2M-710D User Manual (Version 1.00, Mar/2009) PAGE：37...
  • Page 41 Installation M2M-710D User Manual (Version 1.00, Mar/2009) PAGE：38...

  • Page 42: Frame Ground

    It is recommended that the Frame Ground of the M2M-710D module is corrected to the earth ground, such as the ground of an AC power supply, to provide better ESD protection for the module.
