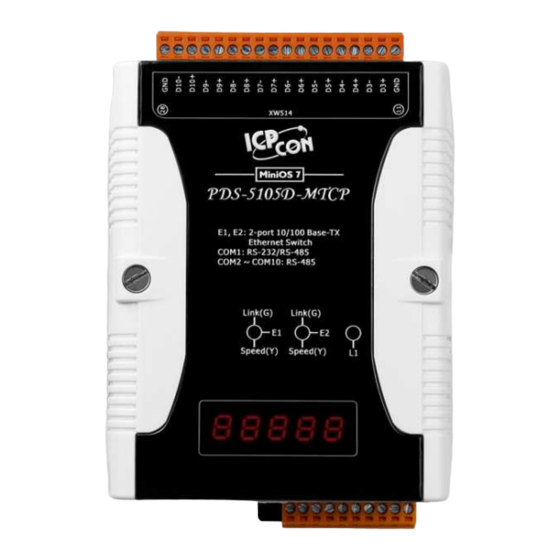

ICP DAS USA PDS-5105D-MTCP Quick Start Manual

Pds series programmable device servers
Hide thumbs Also See for PDS-5105D-MTCP:
1
2
3
4
5
6
7

Advertisement

Table of Contents

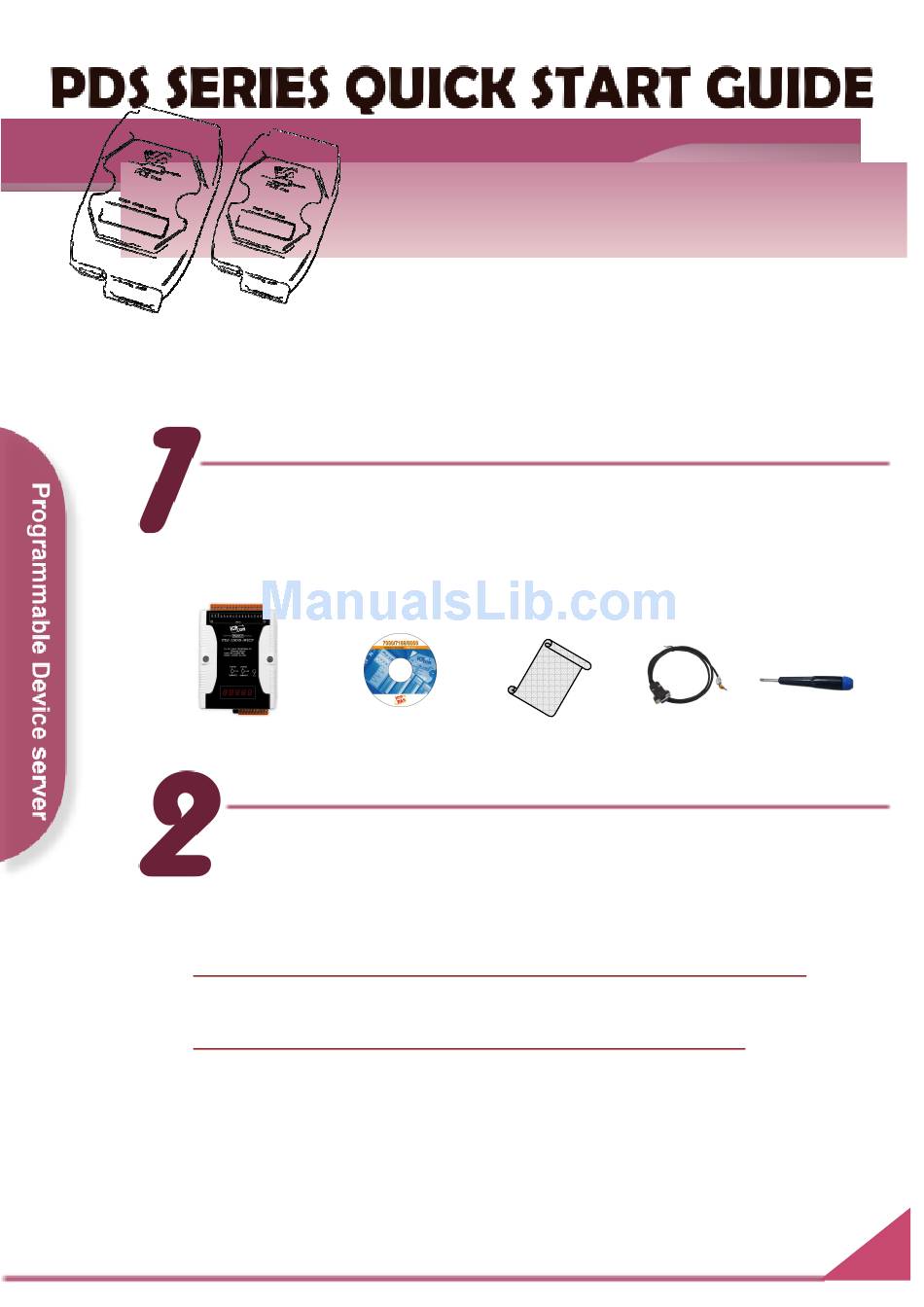

What's in the shipping package?
The package includes the following items:
PDS-5105D-MTCP

Preparations for Device

1. Power Supply: +10 ~ +30 V
http://www.icpdas.com/products/Accessories/power_supply/power_list.htm
2. Ethernet Hub (Ex: NS-205)
http://www.icpdas.com/products/Switch/industrial/industrial_list.htm
3. Make sure your PC has workable network settings.
4. Disable or well configure your Windows firewall and Anti-Virus
firewall first, else the "Search Servers" on page 3 may not
work. (Please contact with your system Administrator)
For PDS-5105D-MTCP
Software CD
Quick Start Guide
(This Document)
DC
PDS-5105D-MTCP Quick Start Guide
English/November 2011/Version 1.0
CA-0910
Cable
(Ex: DP-665)
Screwdriver
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDS-5105D-MTCP and is the answer not in the manual?

Questions and answers

Related Manuals for ICP DAS USA PDS-5105D-MTCP

Summary of Contents for ICP DAS USA PDS-5105D-MTCP

  • Page 1 3. Make sure your PC has workable network settings. 4. Disable or well configure your Windows firewall and Anti-Virus firewall first, else the “Search Servers” on page 3 may not work. (Please contact with your system Administrator) PDS-5105D-MTCP Quick Start Guide...
  • Page 2 Connecting the Power and Host PC 1. Connect both the PDS-5105D-MTCP and your computer to the same sub network or the same Ethernet Switch. 2. Short the RxD and TxD pins (Pin4 and Pin5) of COM1 for self- test. 3. Supply +10~+30 V power to the PDS-5105D-MTCP module.

  • Page 3: Configuring Ethernet Settings

    1. Double click the VxComm Utility shortcut on the desktop. 2. Click the “Search Servers” button to search your PDS- 5105D-MTCP. 3. Double click the name of PDS-5105D-MTCP to open the configure server dialog box. 1. Double-Click 3. Double Click 2.
  • Page 4 5. Wait 2 seconds and then click the “Search Servers” button again to ensure the PDS-5105D-MTCP is working well with new configuration. 2. Click your PDS-5105D-MTCP in the list 1. Click 6. Click the “Add Server[s]” button. Assign a COM Port number and click “OK”...
  • Page 5 7. Click on PDS-5105D-MTCP name and check the virtual COM port mappings on the PC. 6. Check the COM Port 8. Click “Tools” >> “Restart Driver”, and then click the “Restart Driver” button. 7. Click 8. Click PDS-5105D-MTCP Quick Start Guide...
  • Page 6 1. Right click Port 1 and then choose the “Open COM Port” item. 1. Right Click 2. Click 2. Check that the configuration of the COM Port is correct and then click the “Open COM” button. 3. Click PDS-5105D-MTCP Quick Start Guide...

  • Page 7: Related Information

    4. Click 5. Response Message 4. If the test is successful, your COM port program is able to work with this Virtual COM Port now. Related Information PDS-5105D-MTCP product page http://www.icpdas.com/products/Industrial/pds/PDS_Series_Main_Page.htm DP-665 and NS-205 (optional) product page http://www.icpdas.com/products/Accessories/power_supply/power_list.htm http://www.icpdas.com/products/Switch/industrial/industrial_list.htm ICP DAS Web Site: http://www.icpdas.com Contact Us (E-Mail): service@icpdas.com ,service.icpdas@gmail.com...
