>> assembly instructions
Advertisement
Related Manuals for Target Narrow bookcase canarrbkes
Summary of Contents for Target Narrow bookcase canarrbkes

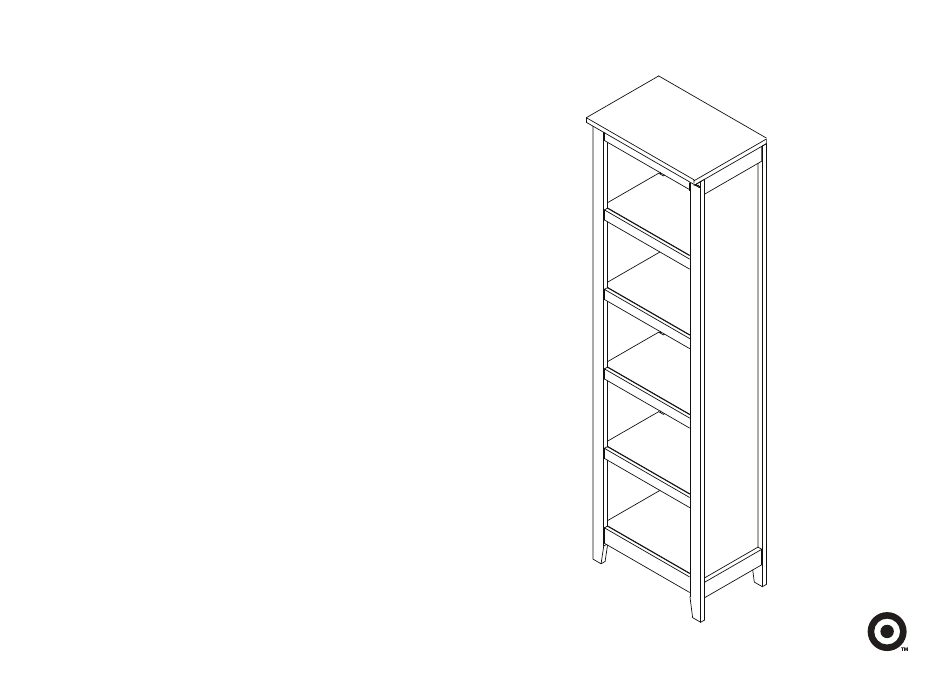

- Page 1 narrow bookcase espresso style # canarrbkes dpci # 249-14-0039 ebony style # canarrbkeb dpci # 249-14-0041 cherry style # canarrbkmt dpci # 249-14-0366 chestnut style # canarrbkch dpci # 249-14-0359 white style # canarrbkwh dpci # 249-14-0363 midtone cherry style # canarrbkmt dpci # 249-14-0366 >>...
-
Page 2: Before You Begin
Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time. - Page 3 Table of Contents Introduction Hardware Parts list How to use the cam lock system Assembly 7-13 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for service. For faster service, have the style number and DPCI number ready when calling.
- Page 4 hardware (H1) x 27 (H2) x 12 (H3) x 1 (H4) x 27 (H5) x 20 shelf support wall anchor cam bolt wooden dowel (H6) x 27 (H8) x 1 (H7) x 4 (H9) x 1 (H10) x 1 short pan-head screw small flat-head screw 38mm wa;;...
- Page 5 ITEM DESCRIPTION QUANTITY Top panel Left side panel Right side panel Back panel Bottom panel Middle fixed shelf Adjustable shelves Bottom front stretcher Adjustable shelf stretchers Middle front fixed stretcher Decorative molding Top front stretcher Middle back fixed stretcher...
-
Page 6: How To Use The Cam Lock System
how to use the cam lock system 180º... - Page 7 step 1. (H4) x 11 (H1) x 11 (H5) x 9 cam bolt wooden dowel 1. Carefully tap wooden dowels into place. Leave 1/2” of the dowels sticking out. 2. Screw-In cam bolts must be screwed down flush with wood panel. 3.
- Page 8 step 2. (H4) x 5 (H1) x 5 (H5) x 6 cam bolt wooden dowel 1. Carefully tap wooden dowels into place. Leave 1/2” of the dowels sticking out. 2. Screw-In cam bolts must be screwed down flush with wood panel. 3.
- Page 9 step 3. (H7) x 4 small flat-head screw 1. Do not over tighten screws.
- Page 10 step 4. (H1) x 5 (H5) x 2 (H4) x 5 wooden dowel cam bolt 1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 2. Screw-In cam bolts must be screwed down flush with wood panel. 3.
- Page 11 step 5. Place the back panel evenly screw hole for tip kit Make sure the screws go through the pre-drilled holes properly Tighten the remaining screws. (H6) x 27 short pan-head screw 1. Do not over tighten screws.
- Page 12 step 6. (H1) x 6 (H5) x 3 (H4) x 6 (H2) x 12 cam bolt wooden dowel shelf support 1. Attach parts L to parts O. Refer to page 6 for instructions on how to use the cam lock system. 2.
- Page 13 step 7. (H11) (H9) (H3) Seri from - Insta furn fata iture l crus Position against wall - Place ll tip-ov tip-o hing - Place heav back y items restra ver. inju ries - Unle heav poss ible. provi lowe help prev this...
- Page 14 WARNING 65 lbs. per shelf Serious or fatal crushing injuries can occur from furniture tip-over. To help prevent tip- over: - Install tip-over restraint provided. - Place heavy items on lower shelves and as far back as possible. - Place heaviest items in the lowest drawers. - Unless specifically designed to accommodate, do not set TVs or other heavy objects on top of this product.
- Page 15 © 2014 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
