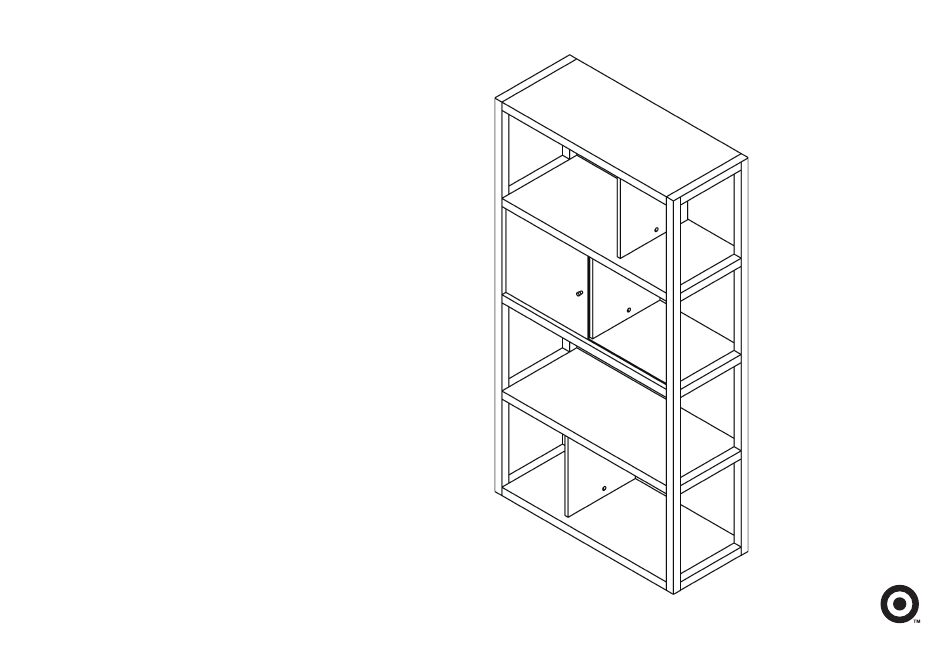

siebert
4 shelf bookcase
style # TGBNT4BKBK (black & walnut)
dpci # 249-14-5153
tcin # 53536358
style # TGBNT4BKWH (whitewashed oak & gray)
dpci # 249-14-5154
tcin # 53536359
>>
assembly instructions
© 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
Advertisement
Related Manuals for Target Siebert 4 shelf bookcase
Summary of Contents for Target Siebert 4 shelf bookcase
- Page 1 # TGBNT4BKBK (black & walnut) dpci # 249-14-5153 tcin # 53536358 style # TGBNT4BKWH (whitewashed oak & gray) dpci # 249-14-5154 tcin # 53536359 >> assembly instructions © 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
- Page 2 Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
- Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-17 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
- Page 4 hardware (H1) x 32 (H2) x 26 (H3) x 26 (H4) x 32 (H5) x 1 wooden dowel cam bolt short pan head screw knob (H6) x 1 (H7) x 1 (H8) x 2 (H9) x 1 (H10) x 1 knob bolt wall strap washer...
- Page 5 exploded diagram ITEM DESCRIPTION QUANTITY left side panel right side panel partition shelf A shelf B shelf C shelf D shelf E door back panel...
- Page 6 how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cam(s) Push cam into panel - arrow feature and insert all the way into on cam top points to panel edge cross-bored hole(s) Rotate cam(s) clockwise 180° to Panels should be tight against each lock panels together other and connection should be rigid...
- Page 7 step 1: attach shelf A and B to partition (H1) x 4 (H2) x 2 (H3) x 2 wooden dowel cam bolt 1.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 1.2. Screw-In cam bolts must be screwed down flush. 1.3.
- Page 8 step 2: attach shelf B and C to partition (H1) x 4 (H2) x 2 (H3) x 2 wooden dowel cam bolt 2.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 2.2. Screw-In cam bolts must be screwed down flush. 2.3.
- Page 9 step 3: attach left side panel (H1) x 6 (H1) x 6 (H2) x 10 (H2) x 10 (H3) x 6 (H3) x 6 wooden dowel wooden dowel cam bolt cam bolt 3.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 3.2.
- Page 10 step 4: attach shelf D and E to partition (H1) x 4 (H2) x 2 (H3) x 2 wooden dowel cam bolt 4.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 4.2. Screw-In cam bolts must be screwed down flush. 4.3.
- Page 11 step 5: attach shelf D/shelf E/partition to left side panel (H1) x 4 (H3) x 4 wooden dowel 5.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 5.2. Screw-In cam bolts must be screwed down flush. 5.3.
- Page 12 step 6: slide in door...
- Page 13 step 7: attach right side panel (H1) x 10 (H1) x 10 (H2) x 10 (H2) x 10 (H3) x 10 (H3) x 10 wooden dowel wooden dowel cam bolt cam bolt 7.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 7.2.
- Page 14 step 8: attach back panel **FAILURE TO FOLLOW ALL DIRECTIONS ON THIS PAGE MAY RESULT IN UNEVEN DOOR ALIGNMENT** hole for anti-tip Begin by installing all of the screws along one pre-drilled holes edge of the back panel. Next, using a square or tape measure, make sure that the cabinet is square.
- Page 15 step 9: attach door knob (H5) x 1 (H6) x 1 knob knob bolt 9.1. Do not over tighten bolts.
- Page 16 step 10: attach cam covers (H12) x 6 cam cover 10.1. Place cam covers over any visible holes on the bookcase. Place cam covers over any visible holes on the bookcase.
- Page 17 step 11: install anti-tip kit (H7) (H11) (H9) (H9) Position against wall Position against wall Mark position of strap hole on wall Mark position of strap hole on wall (H8) Drill 1/4” hole Drill 1/4” hole Tap in wall anchor Tap in wall anchor (H8) (H8)
- Page 18 l b s . p e r s h e l f 1. This unit has been designed for the weight shown. Exceeding this recommended weight could result in excessive “sagging” of the top. Extreme overloading can cause failure of the top and possible injury. 2.
- Page 19 © 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
