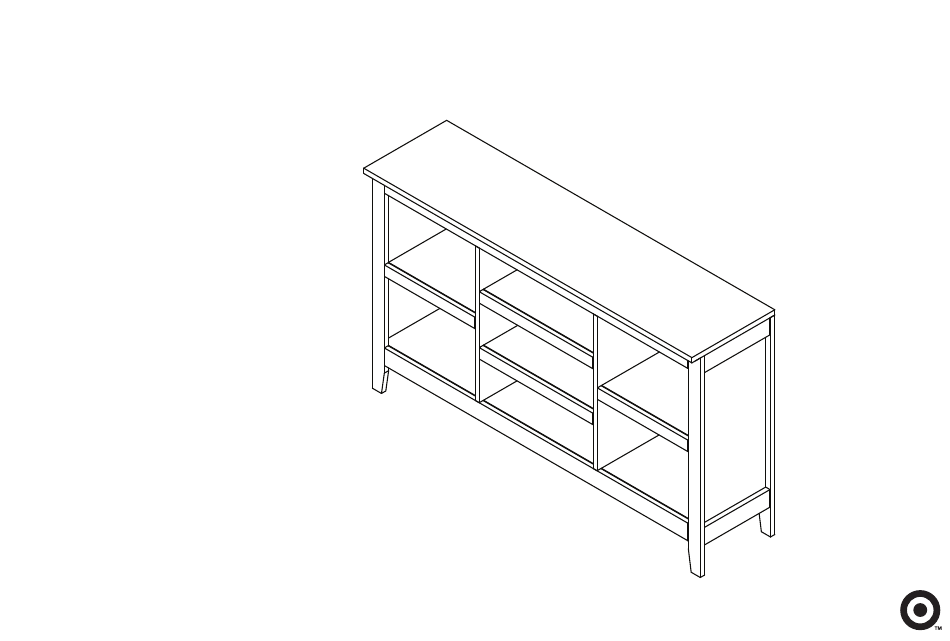

horizontal bookcase
espresso
style # CAHRZLBKES
dpci # 249-14-0040
ebony
style # CAHRZLBKEB
dpci # 249-14-0358
midtone/cherry
style # CAHRZLBKMT
dpci # 249-14-0364
chestnut
style # CAHRZLBKCH
dpci # 249-14-0365
white
style # CAHRZLBKWH
dpci # 249-14-0239
rustic
style # CAHRZLBKBR
dpci # 249-14-1424
>> assembly instructions
Advertisement
Table of Contents
Related Manuals for Target CAHRZLBKES
Summary of Contents for Target CAHRZLBKES
- Page 1 # CAHRZLBKES dpci # 249-14-0040 ebony style # CAHRZLBKEB dpci # 249-14-0358 midtone/cherry style # CAHRZLBKMT dpci # 249-14-0364 chestnut style # CAHRZLBKCH dpci # 249-14-0365 white style # CAHRZLBKWH dpci # 249-14-0239 rustic style # CAHRZLBKBR dpci # 249-14-1424 >>...
- Page 2 Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
- Page 3 Table of Contents introduction hardware parts list how to use the cam lock system assembly 7-14 QUESTIONS? Just call 1-855-MYTGTHOME (1-855-698-4846) for parts and service. For faster service, have the style number and DPCI number ready when calling.
- Page 4 hardware (H1) x 48 (H4) x 48 (H2) x 8 (H3) x 1 (H5) x 50 shelf support wall anchor cam bolt wooden dowel (H6) x 12 (H8) x 1 (H10) x 1 (H7) x 30 (H9) x 2 cam cover wall strap pan-head screw 5/8”...
- Page 5 ITEM DESCRIPTION QUANTITY top panel left side panel right side panel rear rail front rail right adjustable shelf fixed shelf left divider right divider bottom panel left adjustable shelf back panel adjustable shelf trim fixed shelf trim bottom front trim bottom rear trim...
- Page 6 how to use the cam lock system 180º...
- Page 7 step 1. finished edge (H1) x 12 (H5) x 12 (H4) x 12 wooden dowel cam bolt 1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 2. Screw-In cam bolts must be screwed down flush. 3.
- Page 8 step 2. finished edge (H1) x 10 (H5) x 8 (H4) x 10 wooden dowel cam bolt 1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 2. Screw-In cam bolts must be screwed down flush. 3.
- Page 9 step 3. finished edge (H1) x 4 (H5) x 8 (H4) x 4 wooden dowel cam bolt 1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 2. Screw-In cam bolts must be screwed down flush. 3.
- Page 10 step 4. (H1) x 4 (H5) x 8 (H4) x 4 wooden dowel cam bolt 1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 2. Screw-In cam bolts must be screwed down flush. 3. Refer to page 6 for instructions on how to use the cam lock system.
- Page 11 step 5. (H1) x 14 (H5) x 10 (H4) x 14 (H6) x 12 wooden dowel cam bolt cam cover 1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 2. Screw-In cam bolts must be screwed down flush. 3.
- Page 12 step 6. Begin by installing all of the screws along one edge of the back panel. Next, using a square or tape measure, make sure that the cabinet is s or - Inst nitu fata l cru N IN - Plac tip-o tip- e hea...
- Page 13 step 7. (H1) x 4 (H5) x 4 (H4) x 4 (H2) x 8 wooden dowel cam bolt shelf support 1. Refer to page 6 for instructions on how to use the cam lock system. 2. Insert shelf supports into desired hole. Different holes accommodate different shelf heights. 3.
- Page 14 step 8. (H3) (H9) (H8) Position against wall Mark position of strap hole on wall s or - Inst nitu fata l cru N IN - Plac tip-o tip- e hea inju - Plac k as item rest rain ries (H11) - Unle e hea...
- Page 15 WARNING Serious or fatal crushing injuries can occur from furniture tip-over. To help prevent tip- over: - Install tip-over restraint provided. 65 lbs. - Place heavy items on lower shelves and as per shelf far back as possible. - Place heaviest items in the lowest drawers. - Unless specifically designed to accommodate, do not set TVs or other heavy objects on top of this product.
- Page 16 © 2014 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
