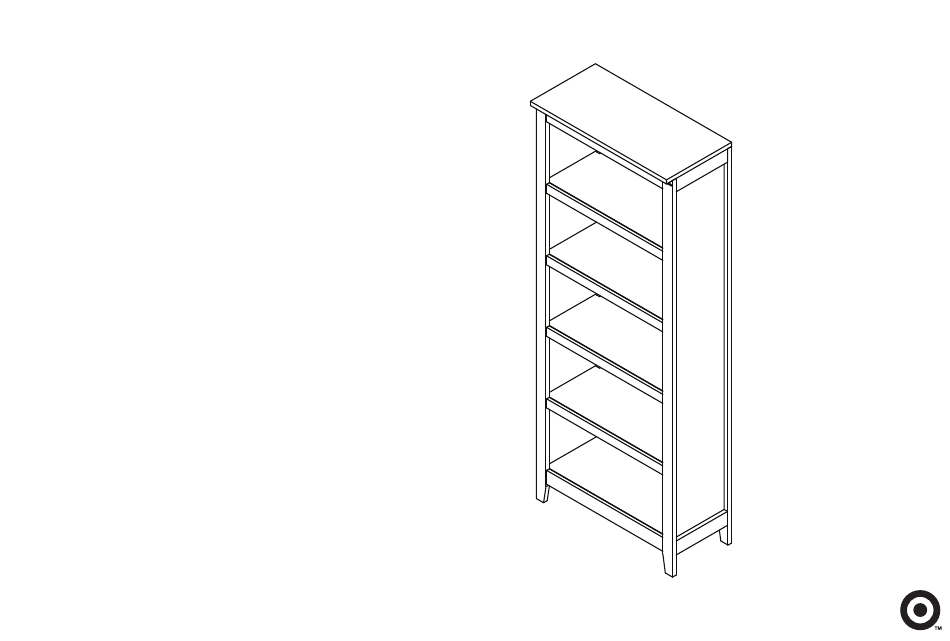

5 shelf bookcase
ebony
style # BK5SHLFXEB
dpci # 249-14-0021
espresso
style # BK5SHLFXES
dpci # 249-14-0022
midtone/cherry
style # BK5SHLFXMT
dpci # 249-14-0023
chestnut
style # BK5SHLFXCH
dpci # 249-14-0367
white
style # BK5SHLFXWH
dpci # 249-14-0048
rustic
style # BK5SHLFXBR
dpci # 249-14-1412
>> assembly instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Target BK5SHLFXEB
Summary of Contents for Target BK5SHLFXEB
- Page 1 5 shelf bookcase ebony style # BK5SHLFXEB dpci # 249-14-0021 espresso style # BK5SHLFXES dpci # 249-14-0022 midtone/cherry style # BK5SHLFXMT dpci # 249-14-0023 chestnut style # BK5SHLFXCH dpci # 249-14-0367 white style # BK5SHLFXWH dpci # 249-14-0048 rustic style # BK5SHLFXBR dpci # 249-14-1412 >>...
- Page 2 Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
- Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-16 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and DPCI number ready when calling.
- Page 4 hardware (H1) x 34 (H2) x 27 (H3) x 27 (H4) x 4 (H5) x 45 5/8’’ pan-head wooden dowel cam bolt 1’’ flat-head screw screw (H6) x 12 (H8) x 1 (H7) x 1 (H9) x 2 (H10) x 1 shelf support wall strap 19mm pan-head screw...
- Page 5 ITEM DESCRIPTION QUANTITY top panel left side panel right side panel adjustable shelf bottom panel fixed shelf center fixed center rear rail fixed center front rail lower back panel back panel decorative molding top front rail bottom front rail adjustable shelf rail...
- Page 6 how to use the cam lock system 180º...
- Page 7 step 1. (H1) x 9 (H2) x 6 (H3) x 6 wooden dowel cam bolt 1. Carefully tap small wooden dowels into place. Leave 1/2’’ of the dowels sticking out. 2. Screw-In cam bolts must be screwed down flush with wood panel. 3.
- Page 8 step 2. finished edge (H1) x 6 (H2) x 4 (H3) x 4 wooden dowel cam bolt 1. Carefully tap small wooden dowels into place. Leave 1/2’’ of the dowels sticking out. 2. Screw-In cam bolts must be screwed down flush with wood panel. 3.
- Page 9 step 3. (H1) x 3 (H2) x 2 (H3) x 2 wooden dowel cam bolt 1. Carefully tap small wooden dowels into place. Leave 1/2’’ of the dowels sticking out. 2. Screw-In cam bolts must be screwed down flush with wood panel. 3.
- Page 10 step 4. finished edge (H1) x 6 (H2) x 5 (H3) x 5 wooden dowel cam bolt front 1. Carefully tap small wooden dowels into place. Leave 1/2’’ of the dowels sticking out. 2. Screw-In cam bolts must be screwed down flush with wood panel. 3.
- Page 11 step 5. (H1) x 6 (H2) x 5 (H3) x 5 wooden dowel cam bolt 1. Carefully tap small wooden dowels into place. Leave 1/2’’ of the dowels sticking out. 2. Screw-In cam bolts must be screwed down flush with wood panel. 3.
- Page 12 step 6. (H4) x 4 1’’ flat-head screw 1. Do not over tighten screws.
- Page 13 step 7. (H1) x 4 (H2) x 5 (H3) x 5 wooden dowel cam bolt 1. Carefully tap small wooden dowels into place. Leave 1/2’’ of the dowels sticking out. 2. Screw-In cam bolts must be screwed down flush with wood panel. 3.
- Page 14 step 8. pre-drilled holes hole for anti-tip strap pre-drilled holes Begin by installing all of the screws along one edge of the back panel. Next, using a square or tape measure, make sure that the cabinet is square. (If using a tape measure, the distance from one corner, diagonally to the other corner should be the same in both directions.) Install the remaining screws, starting with the corners.
- Page 15 step 9. (H6) x 12 shelf support 1. Insert shelf support into desired hole. Different holes accommodate different shelf heights 2. Angle shelf to fit between the rails and set on top of shelf supports.
- Page 16 step 10. (H9) (H8) (H7) (H10) Seri from furn fata iture - Insta - Place ll tip-ov l crus tip-o hing - Place back heav restra ver. inju - Unle heav y items poss provi ries help this spec iest ible.
- Page 17 WARNING Serious or fatal crushing injuries can occur from furniture tip-over. To help prevent tip- over: - Install tip-over restraint provided. 65 lbs - Place heavy items on lower shelves and as far back as possible. per shelf - Place heaviest items in the lowest drawers. - Unless specifically designed to accommodate, do not set TVs or other heavy objects on top of this product.
- Page 18 © 2014 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
