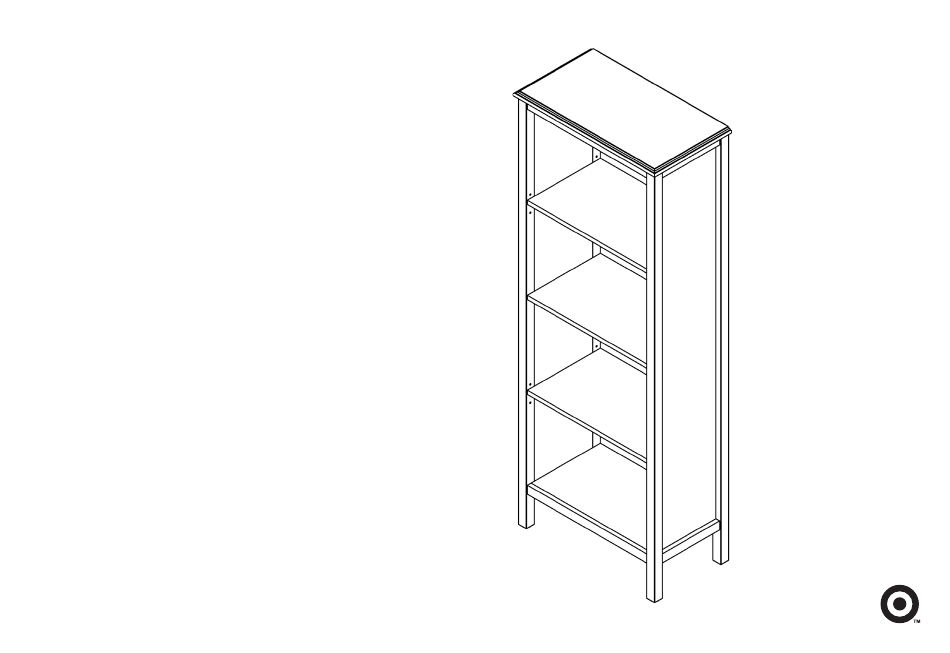

windham
4 shelf bookcase
style # WNBKCASEWH (shell)
dpci # 249-14-0347
tcin # 14372253
style # WNBKCASEBL (teal)
dpci # 249-14-0345
tcin # 14372257
style # WNBKCASEGY (gray)
dpci # 249-14-0348
tcin # 14372247
style # WNBKCASEOV (overcast)
dpci # 249-14-2761
tcin # 50541163
>>
assembly instructions
© 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
Advertisement
Related Manuals for Target Windham WNBKCASEWH
Summary of Contents for Target Windham WNBKCASEWH
- Page 1 # 14372257 style # WNBKCASEGY (gray) dpci # 249-14-0348 tcin # 14372247 style # WNBKCASEOV (overcast) dpci # 249-14-2761 tcin # 50541163 >> assembly instructions © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
- Page 2 Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
- Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-12 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
- Page 4 hardware (H1) x 12 (H2) x 8 (H3) x 8 (H4) x 8 (H5) x 29 wooden dowel cam bolt shelf support 5/8’’ pan-head screw (H6) x 1 (H7) x 1 (H8) x 1 (H9) x 4 (H10) x 4 wall anchor 38mm wall screw wall strap...
- Page 5 exploded diagram ITEM DESCRIPTION QUANTITY top panel left end panel right end panel bottom panel adjustable shelf fixed shelf back panel...
- Page 6 how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cam(s) Push cam into panel - arrow feature and insert all the way into on cam top points to panel edge cross-bored hole(s) Rotate cam(s) clockwise 180° to Panels should be tight against each lock panels together other and connection should be rigid...
- Page 7 step 1: attach fixed shelf, bottom panel and right end panel (H1) x 4 (H2) x 4 (H3) x 4 wooden dowel cam bolt 1.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 1.2. Screw-In cam bolts must be screwed down flush. 1.3.
- Page 8 step 2: attach left end panel (H1) x 4 (H2) x 4 (H3) x 4 wooden dowel cam bolt 2.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 2.2. Screw-In cam bolts must be screwed down flush. 2.3.
- Page 9 step 3: attach top panel (H1) x 4 (H9) x 4 (H10) x 4 (H11) x 4 (H12) x 1 (H12) x 1 wooden dowel allen head bolt lock washer washer allen wrench allen wrench 3.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 3.2.
- Page 10 step 4. step 4: attach back panel pre-drilled holes hole for anti-tip strap Begin by installing all of the screws along one edge of the back panel. Next, using a square or tape measure, make sure that the cabinet is square.
- Page 11 step 5: install adjustable shelves (H4) x 8 shelf support 5.1. Insert shelf supports into desired hole. Different holes accomodate different shelf heights. Insert shelf supports into desired hole. Different holes accomodate different shelf heights. 5.2. Angle shelves to fit between the rails and set on top of shelf supports. Angle shelves to fit between the rails and set on top of shelf supports.
- Page 12 step 6: install anti-tip kit (H8) (H11) (H6) (H13) Position against wall Position against wall Mark position of strap hole on Mark position of strap hole on wall wall Drill 1/4’’ hole Drill 1/4’’ hole Tap in wall anchor Tap in wall anchor Fasten anti-tip strap Fasten anti-tip strap with flat-head screw provided...
- Page 13 1. This unit has been designed for the weight shown. Exceeding this recommended weight could result in excessive “sagging” of the top. Extreme overloading can cause failure of the top and possible injury. 2. Furniture Care Instructions: Dust with a clean, lint-free cloth. Use a spray furniture polish as needed. QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service.
- Page 14 © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
