Kimball Office Innsbruck Assembly Instructions

Innsbruck/Osterley Park
Wood Shelf Removal and
Adjustment and Door Hinge
Adjustment

Tools Required

Phillips Screwdriver

Package Contents

None

Installation

Note: Shelves are secured in unit with shipping screws.

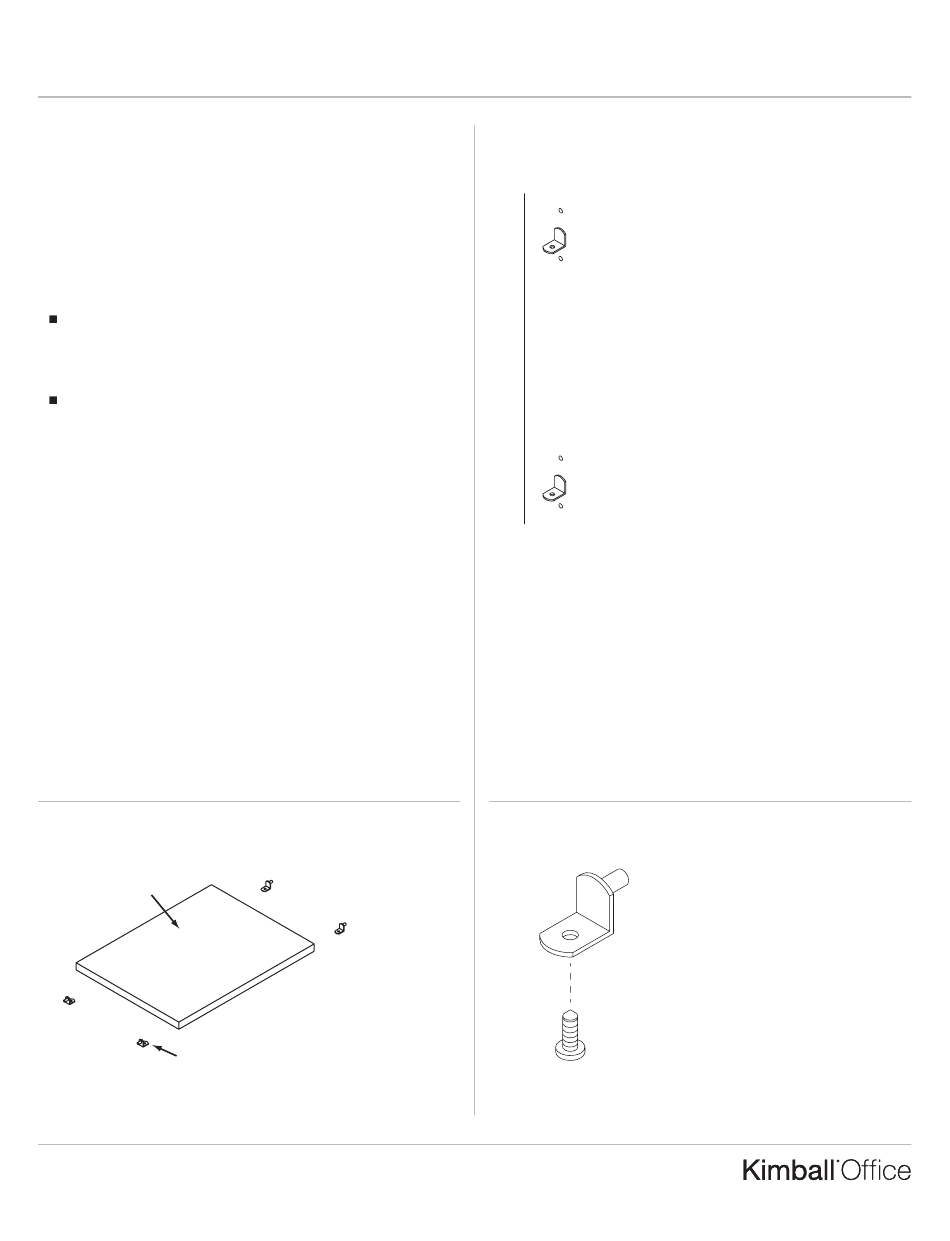

1. An adjustable shelf consists of a shelf and four (4) shelf
support brackets. (Figure A).
2. All cabinets feature pre-bored holes 1
Recommended spacing is #2 position as shipped, for proper
ring binder clearance. (Figure B).
3. For repositioning of shelves, the shipping screws must be
removed. (Figure C). Remove shelf and move shelf support
brackets to desired hole locations, making sure all brackets
are at the same level.
4. For additional security, adjustable shelves can be fastened
into position by reusing the #6 x
screws.
Figure A
Shelf
Shelf Support
Bracket
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Service.
Part No. 1741545 Revision A-05
1 ⁄ " apart.
4
5 ⁄ " panhead shipping
8
Casegoods Assembly Instructions
Figure B
1
2
3
1
2
3
Figure C
Shelf Support
Bracket
#6 x 5 ⁄ " Panhead
8
Shipping Screw
Page 1 of 2
