Kimball Office Interworks EQ Assembly Instructions

Interworks ®
Panel Set Up and Panel to Panel Connection
Tools Required
1
Level, ⁄ " Wrench or Channel Locks, Screwdriver
2
Installation
Important: Level panels throughout installation. If stackable panels are to be installed as well, please, review the Stackable Panel Assembly
Instruction sheets first for preparation tips.
Note: Installation must be in accordance with the National Electrical Code and local codes. Electrically interconnected panels need to be
mechanically connected.
These instructions apply to tackable acoustical, glass, and tackable sectional panel. Two people are recommended, start installation at panel inter-
section at high spot on the floor within layout. If panel configuration includes Traxx®-mounted or wall mounted panel, start installation with that panel.

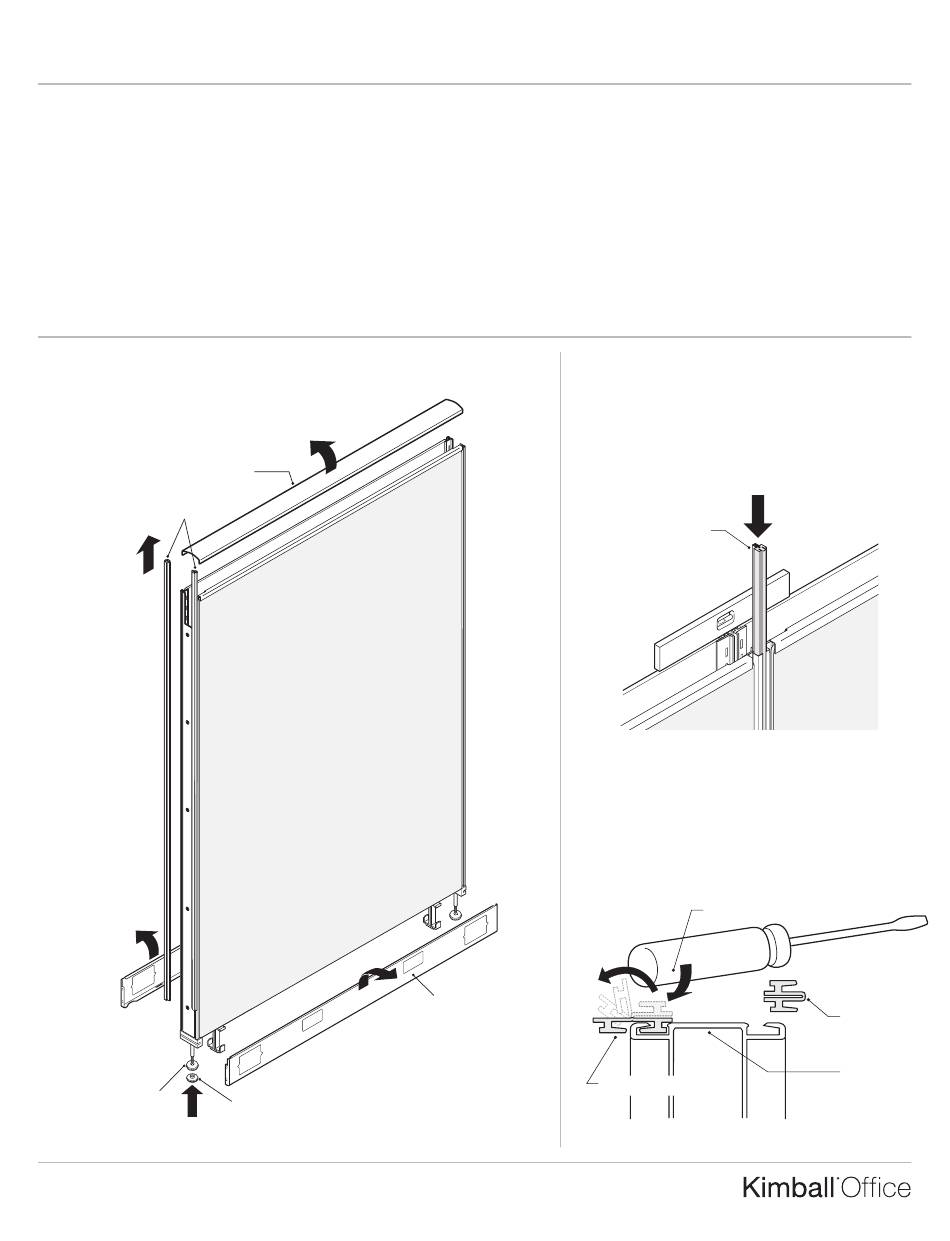

Step 1
Unpack Panels
• Remove top cap (locate carpet gripper and cable tie)
• Remove panel hinges and wireway covers
Top Cap
Panel
Hinges
A A li lig g nm nme e nt nt
C C lip lip
Leveling
Glide
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Service.
Part No. 2041381 Revision E-09
EQ
Carpet Gripper
(shipped under Top Cap)
There are two ways to create a 90° panel connection:
Step 2
Hinge
• With panels in a straight line
• Adjust glides; panels must be level and aligned to each other
• Connect panels by inserting one hinge
Step 2 Alternate
Open Hinge
• With one hinge in panel side rail, open hinge 180°
by running a non-marring object down the entire
hinge/panel edge
• Remove hinge from panel side rail
Wireway
Cover
Hinge Opened to 180º
Assembly Instructions
Page 1 of 3
Hinge
Open Entire Length of Hinge
Closed Hinge
(removed)
Panel Side Rail
(top view)
