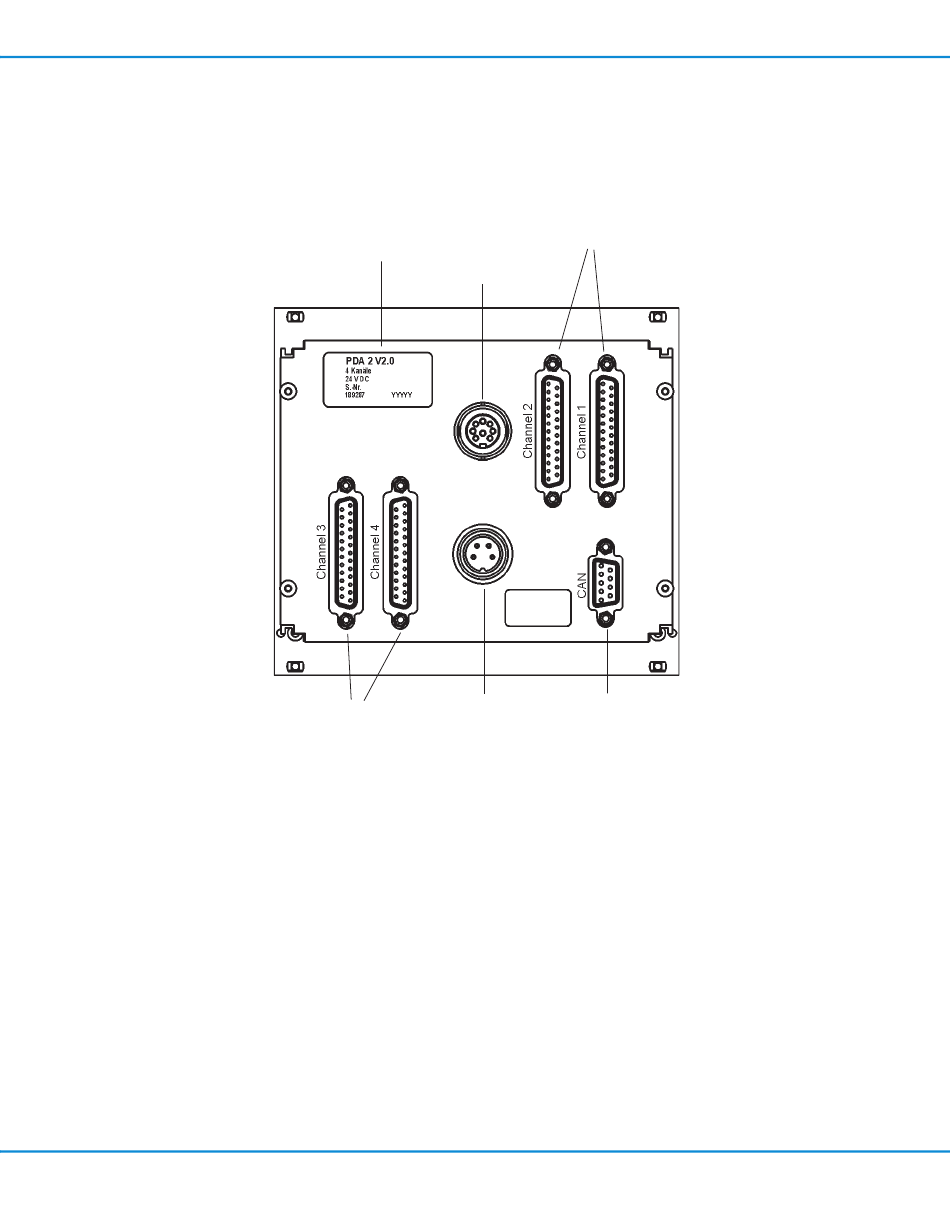

Back Panel Components

[Dimensions W x H = approx. 138 x 106 mm (5.4 x 4.2 in.)]
Connection Comment
Power supply 4-pin socket (Binder, series 680) for power supply cable
Channels 1 to 4 One 25-pin D-subconnector per channel to connect the signals needed to control dispensing.
Channels 1 and 2 are standard; Channels 3 and 4 can be added if desired; the ducts for Channels 3
and 4 are ready and are covered with a label.
CAN bus 9-pin D-subconnector for optional connection of a higher-ranking control unit with CAN bus
communication
Update interface 8-pin socket (Binder, series 581) for Nordson EFD use only
www.nordsonefd.com info@nordsonefd.com
Rating
plate
Socket for power
D-subconnectors for
supply cable
Channels 3 and 4 (if
present)
Refer to "Connector Pin
Assignments and Signal
Levels" on page 11 for
detailed information.
+1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
D-subconnectors for
Channels 1 and 2
Refer to "Connector Pin
Assignments and Signal
Levels" on page 11 for
Connector
detailed information.
(Nordson EFD
use only)
D-subconnector for
CAN bus cable
Refer to "Connector Pin
Assignments and Signal
Levels" on page 11 for
detailed information.
PICO Controller 2+2-XCH-V2
