PICO Controller Operating Controls

The PICO controller is very easy to operate:
• The Enter key and Menu dial are one assembly.
• The ESC (Escape) key is separate.
• All of the operating steps are started from the Main Menu.
• All selectable or changeable parameters are highlighted in the display, and the activated parameter also flashes.
The other parameters are shown for informational purposes only.

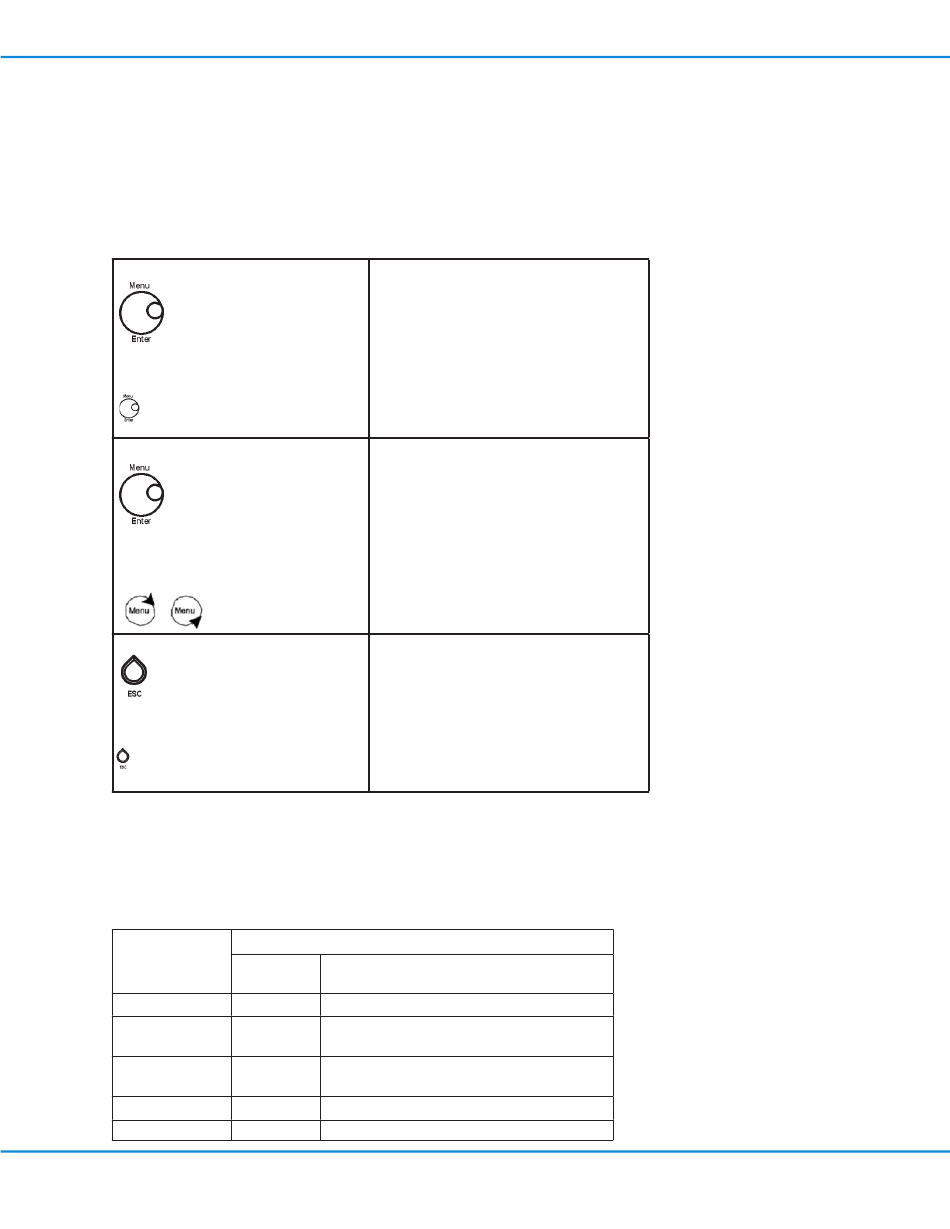

Enter key on Menu dial:
Shown in the "PICO Controller Menu
Schematic" as follows:
Menu dial
Shown in the "PICO Controller Menu
Schematic" as follows (the direction of
rotation is indicated):
ESCAPE key
Shown in the "PICO Controller Menu
Schematic" as follows:
How the Menu Dial Increments Parameter Settings
The Menu dial permits different setting increments:
• Make fine adjustments by only turning the dial.
• Make greater adjustments by simultaneously pressing and turning the dial.
Refer to the following table for the increment adjustment amount.Sat publicut in hos bonsulici terem ia vemente
Parameter /
Variable
Row
Pulse time
Cycle
Cycle count
Temperature
