ValveMate
8000
™
Quick Start Guide
USA & Canada: 800.556.3484 or +1.401.431.7000
Europe: 0800 585733 or +44 (0) 1582 666334
Asia: +86 (21) 5854 2345
technical@nordsonefd.com
www.nordsonefd.com
Electronic pdf files of Nordson EFD manuals are also available at
www.nordsonefd.com
Advertisement
Table of Contents
Related Manuals for Nordson EFD ValveMate 8000
Summary of Contents for Nordson EFD ValveMate 8000
- Page 1 ValveMate 8000 ™ Quick Start Guide USA & Canada: 800.556.3484 or +1.401.431.7000 Europe: 0800 585733 or +44 (0) 1582 666334 Asia: +86 (21) 5854 2345 technical@nordsonefd.com www.nordsonefd.com Electronic pdf files of Nordson EFD manuals are also available at www.nordsonefd.com...

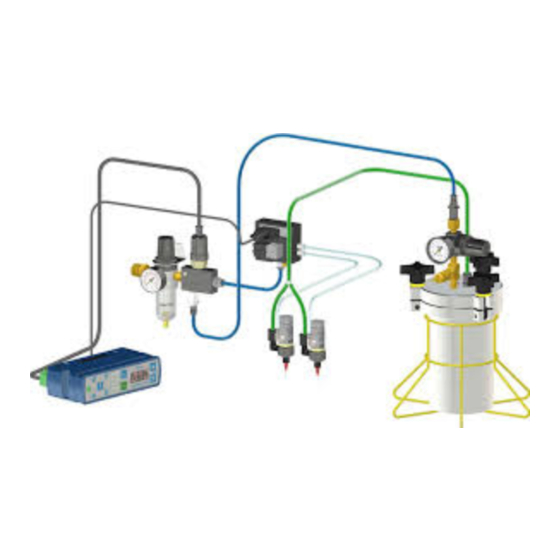

- Page 2 Unpack the ValveMate 8000. This is also a good time to activate the one-year warranty. Register online at www.nordsonefd.com/warranty/valves/one. Spring clamps Panel mount bezel Mount the VM8000 and input power supply. The ValveMate can be mounted either over or under a cabinet or panel mounted using the bezel mount (included).
- Page 3 Final check list Set the tank pressure to 5 psi (0.35 bar) for low viscosity fluids and 30 psi (2.05 bar) for higher Air pressure to solenoid pack is set to 80 psi (5.5 bar). viscosity fluids. This is only a starting point. Solenoids and I/O are wired correctly.
