ValveMate
Quick Start Guide
USA & Canada: 800.556.3484 or +1.401.431.7000
Europe: 0800 585733 or +44 (0) 1582 666334
Asia: +86 (21) 5854 2345
technical@nordsonefd.com
Electronic pdf files of Nordson EFD manuals are also
available at www.nordsonefd.com
™
8040
www.nordsonefd.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Nordson EFD ValveMate 8040
Summary of Contents for Nordson EFD ValveMate 8040
- Page 1 ValveMate ™ 8040 Quick Start Guide USA & Canada: 800.556.3484 or +1.401.431.7000 Europe: 0800 585733 or +44 (0) 1582 666334 Asia: +86 (21) 5854 2345 technical@nordsonefd.com www.nordsonefd.com Electronic pdf files of Nordson EFD manuals are also available at www.nordsonefd.com...

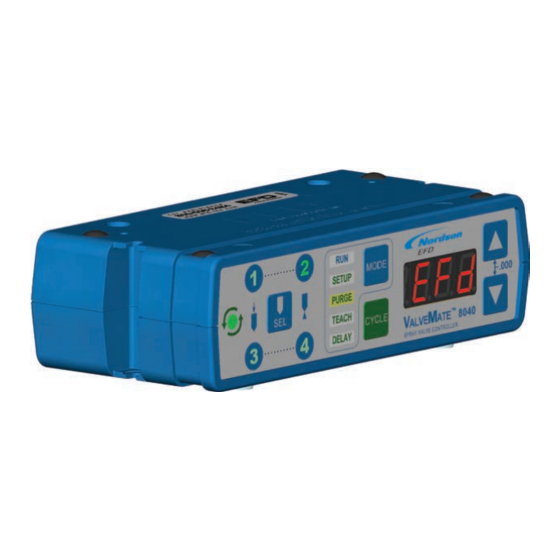

- Page 2 Unpack the ValveMate 8040. This is also a good time to activate the one-year warranty. Register online at www.nordsonefd.com/warranty/valves/one. Spring clamps Panel mount bezel Mount the VM8040 and input power supply. The ValveMate can be mounted either over or under a cabinet or panel mounted using the bezel mount (included).
- Page 3 Final check list Air pressure to solenoid pack is set to 80 psi (5.5 bar). For spray valves, nozzle air regulator is set to 0 psi (0 bar). Solenoids and I/O are wired correctly. Valves and fluid reservoir are properly connected Power to the ValveMate is on, and indicator lamps and LED are lit.
