Rack Mount Installation

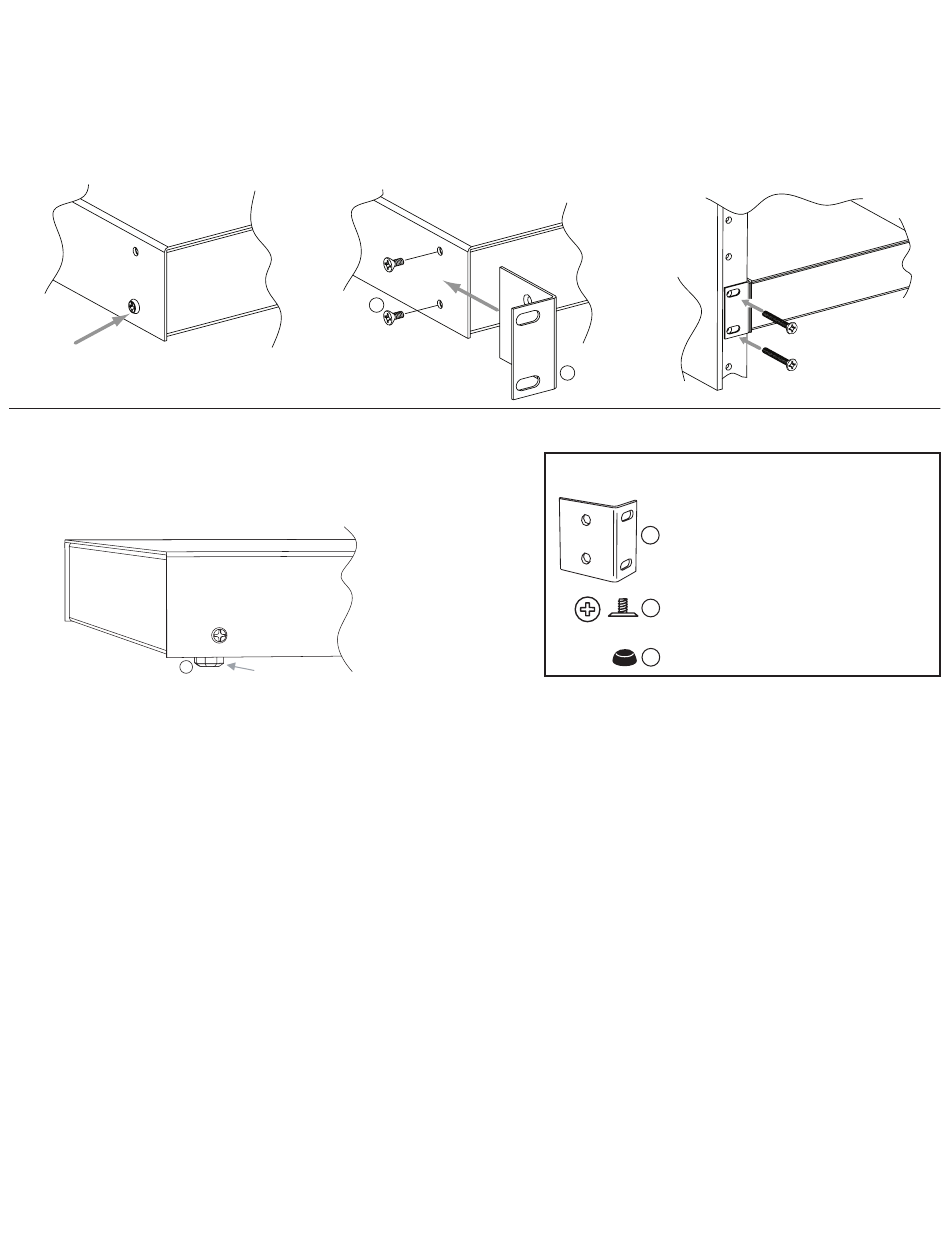

1- Remove and discard factory installed screws from both sides of rack chassis (Fig. 4a).
2- Install mounting brackets (A) on the left and right side of rack chassis using the
four (4) flat head screws (B) (included) (Fig. 4b).
3- Place unit into desired EIA 19" rack position and secure with mounting screws (not included) (Fig. 4c).
Fig. 4
Fig. 4a
Top
Front
Left
Remove
Shelf Installation
1- Position and affix rubber pads (C) (included) at each
corner on the bottom of the unit (Fig. 5).
2- Place unit in desired location.
Fig. 5
C
eBridge8PCRM/16PCRM
Fig. 4b
B
Left Side
Rubber Pad
Mounting Options:
Top
Front
Left
Fig. 4c
A
Mounting Hardware
Two (2) mounting brackets
A
Six (6) flat head screws
B
for mounting brackets.
Four (4) rubber pads.
C
Top
Front Left
(Included):
