DLm8500 with Data Domain Physical Planning

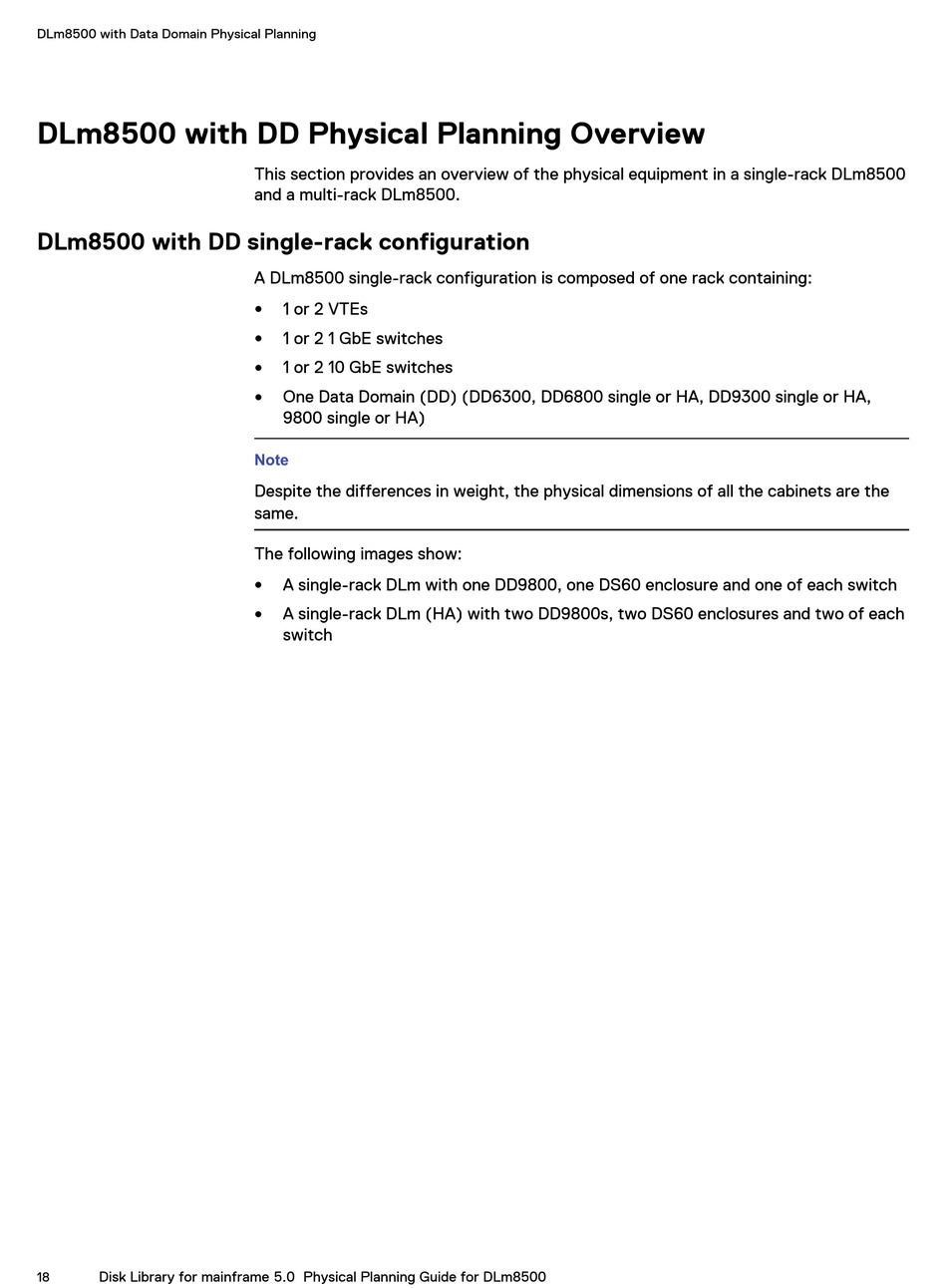

DLm8500 with DD Physical Planning Overview

DLm8500 with DD single-rack configuration

Disk Library for mainframe 5.0 Physical Planning Guide for DLm8500
18
This section provides an overview of the physical equipment in a single-rack DLm8500
and a multi-rack DLm8500.
A DLm8500 single-rack configuration is composed of one rack containing:
1 or 2 VTEs
l
1 or 2 1 GbE switches
l
1 or 2 10 GbE switches
l
One Data Domain (DD) (DD6300, DD6800 single or HA, DD9300 single or HA,
l
9800 single or HA)
Note
Despite the differences in weight, the physical dimensions of all the cabinets are the
same.
The following images show:
A single-rack DLm with one DD9800, one DS60 enclosure and one of each switch
l
A single-rack DLm (HA) with two DD9800s, two DS60 enclosures and two of each
l
switch
