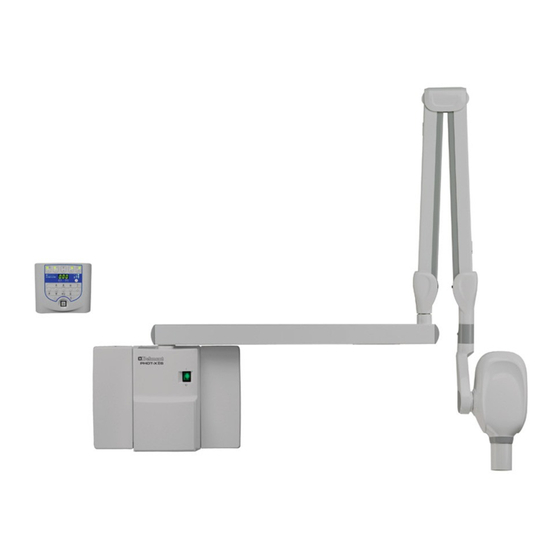

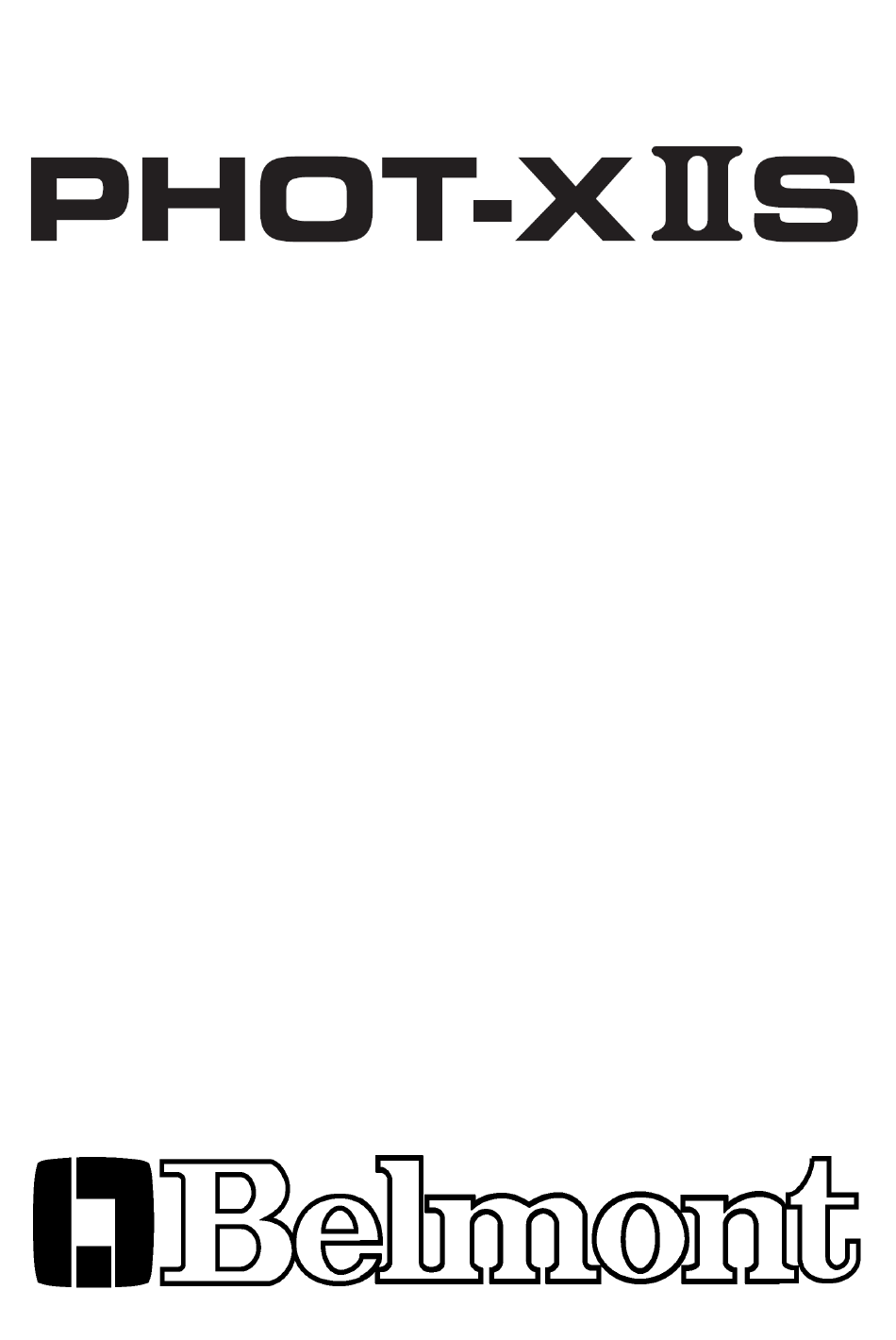

MODEL 505
DENTAL X-RAY
Service Manual
○
R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PHOT-X II S 505 and is the answer not in the manual?

Questions and answers

Related Manuals for Belmont PHOT-X II S 505

Summary of Contents for Belmont PHOT-X II S 505

  • Page 1 MODEL 505 DENTAL X-RAY Service Manual ○...

  • Page 2: Table Of Contents

    Index １．Adjustment required when parts are replaced ......... 3 ２．Method to measure mA and kV..............3 ３．Error Code ......................... 3 3.1 Error Code: E.00 ............3 3.2 Error Code: E.01 ............4 3.3 Error Code: E.02 ............4 3.4 Error Code: E.03 ............4 3.5 Error Code: E.05 ............
  • Page 3 ５．Exposure time ....................... 19 5.1 Assignable exposure time ............ 19 5.2 Exposure time in the automatic setting mode ........19 5.2.1 Exposure Time Settings (60kV, 3mA, Short Cone) ........ 20 5.2.2 Exposure Time Settings (60kV, 6mA, Short Cone) ........ 20 5.2.3 Exposure Time Settings (70kV, 3mA, Short Cone) ........

  • Page 4: １．Adjustment Required When Parts Are Replaced

    １．Adjustment required when parts are replaced Following two kinds of adjustment are necessary if the x-ray head or PC board is replaced. Replaced part Head Timer PC board Power PC board Adjustment Change the CP value as indicated on the head yoke. Necessary Necessary Not Necessary...

  • Page 5: Error Code: E.01

    3.2 Error Code: E.01 Meaning The exposure switch was pressed within three seconds after power-on. The exposure switch was pressed within ten seconds after previous exposure. To release Release the exposure switch to restore the original state. Solution Explain that the operator must wait to press the exposure switch for three seconds after power-on (until the ready light is on) and that exposure is allowed only after an interval 30 times the length of the last exposure time.

  • Page 6: Error Code: E.05

    Solution Decrease the voltage using a step-down transformer if the supply voltage is more than 110% of the rated voltage. If not resolved (or if the line voltage is within the range of ±10% of rated voltage.) Possible cause The memory is out of order. Verification Check C.XX setting at overview mode.

  • Page 7: Error Code: E.07

    more than 7.5 mA (when 6 mA is selected). To release Turn off the main power switch and confirm all displays go off. Then turn on again. Verification Make an exposure for 0.05 seconds and check the tube current. ①After exposure, do not release the exposure switch. Press the mA button twice while holding down the exposure switch.

  • Page 8: Error Code: E.08

    Disconnect the arm cable from the head (10P connector) and the power PC board (8P connector) and check continuity of the cable. 1. between #4 (head side) and #4 (power PC board side) 2. between #8 (head side) and #7 (power PC board side) 3.

  • Page 9: Error Code: E.09

    3.9 Error Code: E.09 Meaning The set value for the preheating power is abnormal when the power is turned on. To release Turn off the main power switch and confirm all displays go off. Then turn on again. Solution Set the h.XX value to “h.10” at all conditions (60 kV/3 mA, 70 kV/3 mA, 60 kV/6 mA, 70 kV/6 mA). If the same symptom (E.09) does not appear when the power is turned on again, set the CP value (see 3.3) and perform automatic adjustment of preheating power (see 3.6).

  • Page 10: Error Code: E.14

    There is a failure in the power PC board. Replace the PC board. 3.13 Error Code: E.14 Meaning Tube voltage immediately before termination of exposure was less than 50 kV (when 60 kV is set) or less than 60 kV (when 70 kV is set). To release Turn off the main power switch and confirm all displays go off.

  • Page 11: Error Code: E.16

    Solution If the same symptom appears, the cause of the error is presumed to lie in the power PC board. In this case, replace the power PC board. If the exposure turns out to be normal, the cause is presumed to lie in the head.

  • Page 12: Error Code: E.19

    Solution Replace the head. 3.17 Error Code: E.19 Meaning An over current ran the primary circuit of the high voltage transformer. To release Turn off the main power switch and confirm all displays go off. Then turn on again. Solution If the same symptom appears, it is more likely that the power PC board is the cause.

  • Page 13: Error Code: E.22

    terminals in the head connector. Solution Replace the head if no continuity between #2 and #6 terminals is confirmed. 3.19 Error Code: E.22 Meaning Communication between the power PC board and the timer PC board was not normal. To release Turn off the main power switch and confirm all displays go off.
  • Page 14 Replace the fuse if it has been blown.. If not resolved Possible cause 1 The communication cable (power line) is broken. * If the fuse blows again when fuse is replaced, no break exists in the communication cable. Verification Check continuity of the #1 and #4 wires of the communication cable. Solution Replace the communication cable if any failure is found.

  • Page 15: ４．Setting Mode

    ４．Setting Mode 4.1 Film type, digital mode and priority light (1) To enter this mode Hold down both of the tube current button and the tube voltage button for approximately three seconds. (2) The status when entering this mode ①The tooth and exposure lights are off. For patient, cone, film/digital mode, tube voltage, and tube current, the lights for prioritized settings are on.

  • Page 16: Tube Voltage Adjustment Value

    ③The seven-segment LED displays “EP.X”. X represents the tube current adjustment value for 3 mA held at the time. The standard setting is “EP.8”. (3) Operation and display ①Press the △ or ▽ button to increase/decrease the tube current adjustment value displayed on the seven-segment LED.

  • Page 17: Manual Setting Of Preheating Power

    2: An electronic chime sounds when switches are depressed. (△▽, tooth, patient, cone, tube voltage, tube current, exposure, film, and digital buttons) The roundness of the chime is more than bu.1 setting. Warning: Exposure warning buzzer and alarm sound of error code can not be eliminated. ②Select the value you want and press the patient selection button for approximately one second.

  • Page 18: Setting The Automatic Lock

    off before “Fin” is displayed or move to another setting mode, the “h” values will not be updated. (For 60 kV, same “h” values are stored as 70 kV.) 4.7 Setting the automatic lock (1) To enter this mode Hold down the T3 and T4 buttons for approximately three seconds. (2) The status when entering this mode ①The ready light blinks.

  • Page 19: Error History

    ①The ready light blinks. The lights for tooth, patient, cone, tube voltage, tube current, exposure, film, and digital mode are off. ②The seven-segment LED displays “PX.X”. X.X represents the version number of the program. (3) Operation and display ①Each time you press the △ button, the display on the seven-segment LED will change in the order as below and allow you to check the settings.

  • Page 20: Number Of Exposures

    4.11 Number of Exposures (1)To enter the mode Hold down the C and D buttons for approximately three seconds. (2)The status when entering this mode ①The lights for ready, patient, cone, tube voltage, tube current, tooth, exposure, film, and digital mode are off.

  • Page 21: Exposure Time Settings (60Kv, 3Ma, Short Cone)

    5.2.1 Exposure Time Settings (60kV, 3mA, Short Cone) [unit : sec.] Patient Child Adult Large Adult Tooth F.00 0.03 0.03 0.04 0.04 0.06 0.04 0.05 0.06 0.07 0.11 0.06 0.07 0.08 0.09 0.13 F.01 0.03 0.04 0.05 0.06 0.08 0.06 0.07 0.08 0.09...

  • Page 22: Exposure Time Settings (70Kv, 3Ma, Short Cone)

    5.2.3 Exposure Time Settings (70kV, 3mA, Short Cone) [unit : sec.] Patient Child Adult Large Adult Tooth F.00 0.02 0.02 0.03 0.03 0.05 0.03 0.04 0.05 0.05 0.08 0.04 0.05 0.06 0.07 0.10 F.01 0.02 0.03 0.03 0.04 0.06 0.04 0.05 0.06 0.07...

  • Page 23: Exposure Time Settings (60Kv, 3Ma, Long Cone)

    5.2.5 Exposure Time Settings (60kV, 3mA, Long Cone) [unit : sec.] Patient Child Adult Large Adult Tooth F.00 0.06 0.07 0.08 0.09 0.13 0.09 0.11 0.13 0.16 0.22 0.11 0.14 0.16 0.20 0.28 F.01 0.07 0.08 0.10 0.11 0.18 0.11 0.14 0.18 0.20...

  • Page 24: Exposure Time Settings (70Kv, 3Ma, Long Cone)

    5.2.7 Exposure Time Settings (70kV, 3mA, Long Cone) [unit : sec.] Patient Child Adult Large Adult Tooth F.00 0.04 0.05 0.06 0.07 0.10 0.07 0.08 0.10 0.11 0.16 0.08 0.10 0.11 0.14 0.20 F.01 0.05 0.06 0.07 0.08 0.13 0.08 0.10 0.13 0.14...

  • Page 25: Exposure Time Settings (60Kv, 3Ma, Short Cone + Rectangular Collimator)

    5.2.9 Exposure Time Settings (60kV, 3mA, Short Cone + Rectangular Collimator) [unit : sec.] Patient Child Adult Large Adult Tooth F.00 0.04 0.04 0.05 0.06 0.09 0.06 0.07 0.09 0.10 0.14 0.08 0.09 0.11 0.13 0.18 F.01 0.05 0.06 0.07 0.08 0.11 0.08...

  • Page 26: Exposure Time Settings (70Kv, 3Ma, Short Cone + Rectangular Collimator)

    5.2.11 Exposure Time Settings (70kV, 3mA, Short Cone + Rectangular Collimator) [unit : sec.] Patient Child Adult Large Adult Tooth F.00 0.03 0.03 0.04 0.04 0.06 0.04 0.05 0.06 0.07 0.11 0.05 0.07 0.08 0.09 0.13 F.01 0.03 0.04 0.05 0.06 0.08 0.06...

  • Page 27: Exposure Time Settings (60Kv, 3Ma, Long Cone + Rectangular Collimator)

    5.2.13 Exposure Time Settings (60kV, 3mA, Long Cone + Rectangular Collimator) [unit : sec.] Patient Child Adult Large Adult Tooth F.00 0.07 0.08 0.10 0.11 0.16 0.11 0.14 0.16 0.20 0.28 0.14 0.18 0.22 0.25 0.36 F.01 0.09 0.11 0.13 0.14 0.22 0.14...

  • Page 28: Exposure Time Settings (70Kv, 3Ma, Long Cone + Rectangular Collimator)

    5.2.15 Exposure Time Settings (70kV, 3mA, Long Cone + Rectangular Collimator) [unit : sec.] Patient Child Adult Large Adult Tooth F.00 0.05 0.06 0.07 0.08 0.13 0.08 0.10 0.13 0.14 0.20 0.10 0.13 0.16 0.18 0.25 F.01 0.06 0.08 0.09 0.11 0.16 0.11...

  • Page 29: ６．Parts Replacement

    ６．Parts replacement 6.1 Head 1. Turn off the main power switch on the front panel of PHOT-X IIs 505. 2. Close the balance arm and secure it with a stout cord. The Stout Cord balance arm is spring loaded and it can pop out and cause injury when the x-ray head is removed.

  • Page 30: Power Pc Board

    3. Repeat step 2 until “Fin” is displayed in the exposure time display window (you will make approximately eight (8) to ten (10) x-ray exposures until “Fin” is displayed. 4. Turn off the main power switch on the front panel of PHOT-X II s 505. 6.2 Power PC board Turn off the main power at the circuit breaker panel.

  • Page 31: Adjustment After Exchanging The Power Pc Board (Ma Adjustment)

    Adjustment after exchanging the power PC board (mA adjustment) 1. Turn on the main switch at the circuit breaker panel and the main switch on the x-ray front panel. 2. Hold down the tooth selection switches together (T1, T4, and T5) until “h.xx” appears in the exposure time display window.
  • Page 32 ○ TAKARA BELMONT CORPORATION 2-1-1, Higashishinsaibashi, Chuo-ku, Osaka, 542-0083, Japan TEL.: +81 6 6213-5945 Fax.: +81 6 6212-3680 Book No. 1A0HPWB0 Printed in Japan 1509 -31-...
