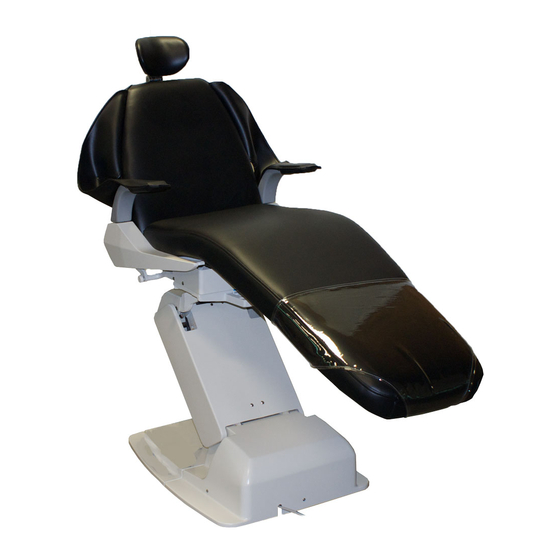

BEL-20N CHAIR
This manual provides operating instructions for the BEL-20N Chair.
The instructions contained in this booklet should be thoroughly read and understood
before operating the chair.
After the installation has been completed, keep this manual in a safe place and refer to
it for future maintenance.
Operating
Instructions
IMPORTANT
Series
R
Advertisement
Table of Contents
Related Manuals for Belmont X-Calibur Series
Summary of Contents for Belmont X-Calibur Series
- Page 1 Series BEL-20N CHAIR Operating Instructions IMPORTANT This manual provides operating instructions for the BEL-20N Chair. The instructions contained in this booklet should be thoroughly read and understood before operating the chair. After the installation has been completed, keep this manual in a safe place and refer to it for future maintenance.
- Page 3 CAUTION The followings are prohibited. • To modify this equipment. • To use the equipment under any failure condition. • To use the equipment without doing the daily and periodical check-up. • To wipe the plastic covers with any disinfectant or detergent that contains organic solvent. •...
- Page 4 2. DIMENSIONS AND SPECIFICATIONS 2-1 Dimensions (Inches) 23-3/8 18-1/2 10-1/4 7-5/8 73-5/8 23-1/4 24-3/8 34-5/8 14-5/8 2-5/8 34-5/8 21-1/4 73-5/8 Minimum 18” to any object Minimum 19” 34-5/8 14-5/8 to wall (Max 21-1/4) 2-2 Specifications Seat Initial Height --------------------- 13-3/4” Headrest bar Initial height ---------- 10-5/8”...
- Page 5 CAUTION To avoid the risk of electric shock, this equipment must only be connected to a supply mains with protective earth. Grounding reliability can only achieved when the equipment is connected to an equivalent receptacle marked HOSPITAL ONLY or HOSPITAL GRADE. 2)Turn on the main power switch located on the left side of the pump cover.
- Page 6 1) Seat Height Adjustments a. Raise the seat by pressing foot, backrest or touchpad control (optional) indicated “Seat Raise”. Seat Raise b. Lower the seat by pressing foot,backrest or touchpad control (optional) Seat Lower indicated “Seat Lower”. 2) Backrest Adjustments Backrest Raise a.
- Page 7 2) Chai r Rotation To rotate the chair, release lock lever on right side of the chair, by pushing downward. Pull lever to lock. 3) Cancellation a. Safety plate is provided below base link cover to stop motion of chair when object is accidentally caught underneath.
- Page 8 4. CARE AND MAINTENANCE 4-1 Cleaning and disinfection CAUTION Do not spray liquids directly on to chair surfaces. In order to prevent damage to electrical components and systems, do not apply excess cleaning solution on to chair surfaces. Routine Care Clean plastic and upholstery surfaces iegularly using a mild soap and water solution.
- Page 9 4-3 Daily Check-up of functions by the end user The end-user is responsible for daily check-up of the equipment. In the case end user does not do this, it is allowed that you outsource it to a technician authorized by us. In order to assure safety use of this equipment, please carry out the following check-up in a frequency as indicated below.
- Page 10 4-4 Guideline for Periodical Check-up • Some parts and components of the products are degraded or deteriorated depending on the frequency of use, so yearly check-up and maintenance, as well as replacement of comsumable parts, are required. For check-up and repair, call a technician of our authorized dealer. •...
- Page 12 Name : Address : BELMONT EQUIPMENT, Division of Takara Belmont USA, Inc. 101 Belmont Drive Somerset, New Jersey 08873 U.S.A. TEL.:(732) 469-5000 / (800) 223-1192 Fax.:(732)356-1035 TAKARA CO, CANADA LTD. 2076 S. Sheridan Way, Mississauga, Ont., L5J2M4, Can. TEL.:(905) 822-2755 Fax.:(905)822-6203...
