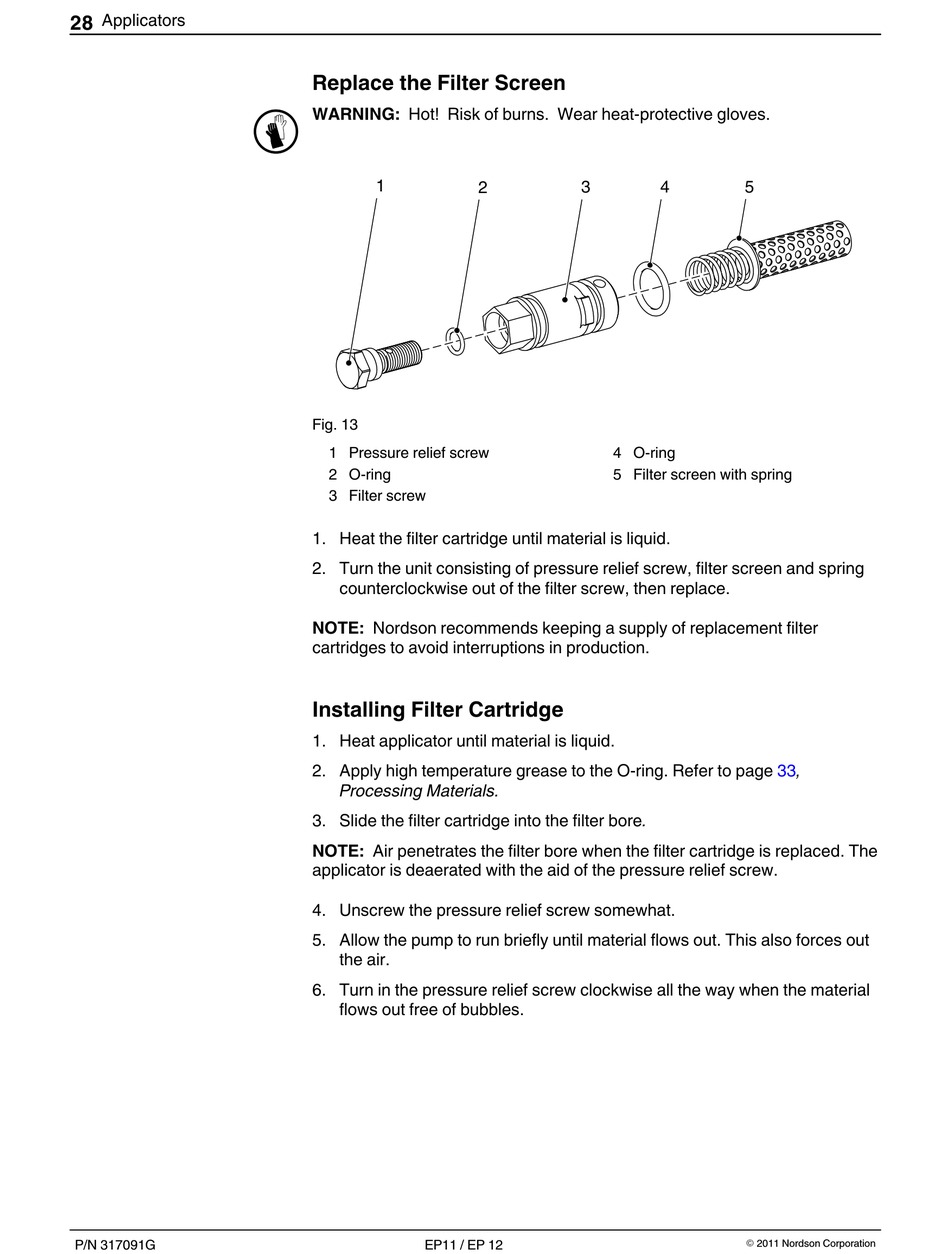

Replace the Filter Screen

WARNING: Hot! Risk of burns. Wear heat‐protective gloves.
1
2
Fig. 13
1 Pressure relief screw
2 O‐ring
3 Filter screw
1. Heat the filter cartridge until material is liquid.
2. Turn the unit consisting of pressure relief screw, filter screen and spring
counterclockwise out of the filter screw, then replace.
NOTE: Nordson recommends keeping a supply of replacement filter
cartridges to avoid interruptions in production.

Installing Filter Cartridge

1. Heat applicator until material is liquid.
2. Apply high temperature grease to the O‐ring. Refer to page 33,
Processing Materials.
3. Slide the filter cartridge into the filter bore.
NOTE: Air penetrates the filter bore when the filter cartridge is replaced. The
applicator is deaerated with the aid of the pressure relief screw.
4. Unscrew the pressure relief screw somewhat.
5. Allow the pump to run briefly until material flows out. This also forces out
the air.
6. Turn in the pressure relief screw clockwise all the way when the material
flows out free of bubbles.
EP11 / EP 12
3 4 5
4 O‐ring
5 Filter screen with spring
