Summary of Contents for PEERLESS DST360

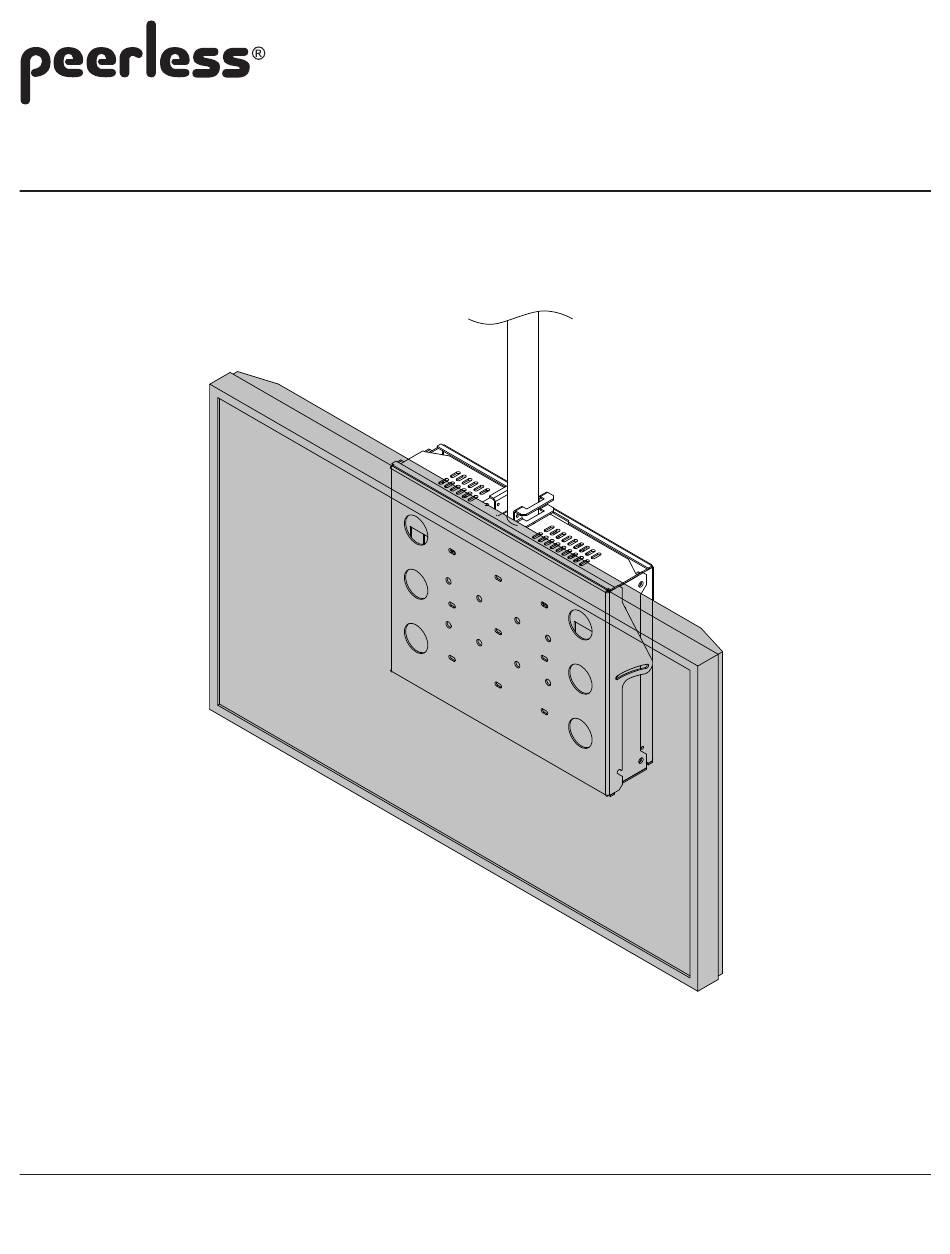

- Page 1 Installation and Assembly: Mount - Wall/Ceiling Mount Model: DST360 Max Load Capacity: 150 lb (68. kg) 3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com ISSUED: 06-15-09 SHEET #: 145-9008-2 11-17-09...
-
Page 2: Parts List
NOTE: Read instruction sheet before you start installation and assembly. PARTS LIST Description Qty. Part # A pc box 145-1050 B access plate 145-1049 C adapter plate 145-1038 D pinch bracket 130-1073 E yaw lock bracket 140-1019 F M6 x 12 mm socket pin serrated washer head screw 510-1050 G alligator anchor 590-0097... -
Page 3: Installation To Wood Stud Wall
For Intallation to Column skip to Step 10 on Page 9 Installation to Wood Stud Wall WARNING • Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. •... -
Page 4: Installation To Solid Concrete And Cinder Block Wall
WARNING • When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1"... - Page 5 FOR METAL STUD WALLS ONLY: Drill six 1/2" (13 mm) dia. holes through drywall and studs at locations corresponding to wall plate. Insert togglers (S) as shown below. WARNING • Product must be mounted through drywall that has a minimum thickness of 1/2" and into metal studs, 26 gauge or heavier.
- Page 6 Align wall plate with access plate hole in wall and fasten using 1/4-20 x 2.5" screw (R) and 1/4" washer (T). Select mounting hole pattern and secure adapter plate (C) to screen using screws (U,W, or X) and washers (V) if required. 200 mm x 200 mm PLP Adapter Plate Mounting Holes 200 mm x 100 mm...
- Page 7 Secure PC to pc box (A) using strap provided with pc box (A), and rubber pads (J) for support and ventilation. Secure 2" snap bushing (K) as desierd. STRAP Secure PC box (A) to access plate (B) with Thread two M6 x 12 mm socket pin screws (F) into four M8 x 15 mm socket pin screws (L).
-
Page 8: Support Brackets
Secure two M6 x 12 mm socket pin screws (F) into PC box (A) at desired tilt. Tighten using allen wrench (I). Accessing CPU Loosen top two M8 x 15 mm socket pin screws (L) 1/4 turn and temporaliy remove bottom two M8 x 15 mm socket pin screws (L) on pc box (A) as shown. - Page 9 Installing To Column Slide tube into top of pc box (A) and secure using Secure yaw lock bracket (E) to pc box (A) with two M6 x 12 mm socket pin screws (F). Tighten using washer (N), retaining collar (M) and one M5 x 10 mm type F screw (O).
- Page 10 Select mounting hole pattern and secure adapter plate (C) to screen using screws (U,W, or X) and washers (V) if required. 200 mm x 200 mm PLP Adapter Plate Mounting Holes 200 mm x 100 mm NOTE: First attach the vertical uprights to the screen detailed in the PLP Adapter Plate instructions PLP ADAPTER PLATE...
- Page 11 Secure two M6 x 12 mm socket pin screws (F) into PC box (A) at desired tilt. Tighten using allen wrench (I). Accessing CPU Loosen top two M8 x 15 mm socket pin screws (L) 1/4 turn and temporaliy remove bottom two M8 x 15 mm socket pin screws (L) on pc box (A) as shown in figure 17.1.
