Summary of Contents for PEERLESS DS-VW660

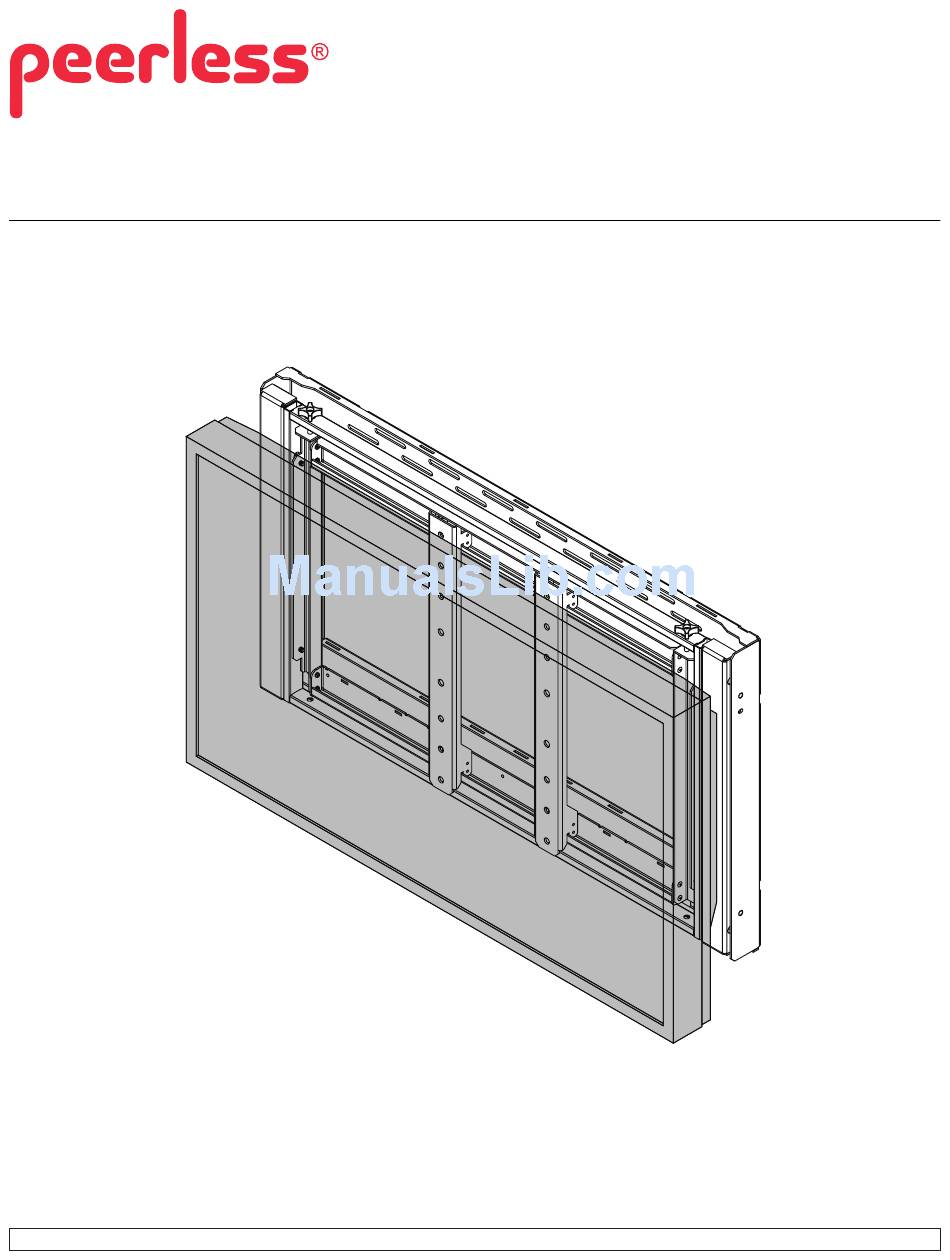

- Page 1 Installation and Assembly: Video Wall Mount Model: DS-VW660 Maximum Load Capacity: 200 Ib ( 90 kg) 1 of 10 ISSUED: 01-05-10 SHEET #: 125-9128-1 06-28-10...
-
Page 2: Table Of Contents
NOTE: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact your local distributor. -
Page 3: Horizontal And Vertical Video Wall Mount Assembly Formula
Vertical Spacing Location If DS-VWS0## Wall Plate Spacer Kit is not available use diagram below to determine vertical spacing. To determine lower mounting slot position of second mount, add display height to (Y1) or (Y2) DISPLAY HEIGHT 10.25 1.688 Vertical Location .938 X - 10.25 + (.938 OR 1.688) = (Y1 OR Y2) Horizontal Spacing Location If DS-VWS0## Wall Plate Spacer Kit is not available use diagram below to determine horizontal spacing. -
Page 4: Parts List
PARTS LIST Description Qty. Part # A carriage assembly 1 145-1160 B wall plate 1 145-1145 C adapter bracket 2 145-1158 D lock bracket 1 145-1154 E #14 x 2.5 hex head wood screw 4 5S1-015-C03 F concrete anchor 4 590-0320 G .38 OD x .06 LG nylon shoulder washer 4 590-2233 H M5 x 10 mm socket pin serrated washer head screw 2 510-1126 I M6 x 12 mm phillips screw 4 520-1128... -
Page 5: Installation To Wood Stud Wall
Installation to Wall Stud WARNING • Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. • Tighten wood screws so that wall plate is firmly attached, but do not overtighten. Overtightening can damage the screws, greatly reducing their holding power. • Never tighten in excess of 80 in. • lb (9 N.M.). • Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud finder is highly recommended. • Hardware provided is for attachment of mount through standard thickness drywall or plaster into wood studs. Installers are responsible to provide hardware for other types of mounting situations. Use a stud finder to locate the edges of the stud. Use of an edge-to-edge stud finder is highly recommended. -
Page 6: Installation To Solid Concrete Or Cinder Block
Installation to Solid Concrete or Cinder Block WARNING • When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" (35 mm) of actual concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1" (25 mm) minimum from the side of the block. Cinder block must meet ASTM C-90 specifications. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to avoid breaking out the back of the hole when entering a void or cavity. • Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor. -
Page 7: Installing Adapter Brackets
Attaching Adapter Brackets to Display Attach adapter brackets (C) to back of display using four M6 x 12 mm phillips screws (I) with nylon shoulder washer (G), or four M8 x 15 mm phillips screws (J) as shown below. NOTE: Hardware to attach dedicated plates to the mount are included with the dedicated plates. I or J Attach adapter brackets (C) and display onto channels on carriage assembly (A) as shown in figure 3.1. Secure adapter brackets (C) using lock bracket (D) with three M5 x 6 mm phillips screws (K) as shown in figure 3.2. 7 of 10 ISSUED: 01-05-10 SHEET #: 125-9128-1 06-28-10... -
Page 8: Installing Carriage Assembly To Wall Plate
Horizontal Display Position OPTIONAL GUIDE: When positioning adapter brackets (C) make sure outside edge of adapter bracket is in notch on display carriage as shown in detail 1. Installing Carriage Assembly to Wall Plate Hook Carriage Assembly (A) slot onto pins on wall plate (B). Make sure that pins fully engage slot of carriage assembly (A) as shown in detail 2. 8 of 10 ISSUED: 01-05-10 SHEET #: 125-9128-1 06-28-10... -
Page 9: Horizontal Adjustment
Secure Carriage Assembly (A) to wall plate (B) with two M5 x 10 mm socket pin serrated washer head screws (H) using 4 mm allen wrench (L) as shown below. Horizontal Display Adjustment Adapter Brackets (C) and display can be adjusted horizontally. 9 of 10 ISSUED: 01-05-10 SHEET #: 125-9128-1 06-28-10... -
Page 10: Carriage Assembly Adjustment
Turn knob COUNTER-CLOCKWISE to loosen DOWN ROLL RIGHT ROLL LEFT 10 of 10 ISSUED: 01-05-10 SHEET #: 125-9128-1 06-28-10 © 2010, Peerless Industries, Inc. All rights reserved. All other brand and product names are trademarks or registered trademarks of their respective owners.
