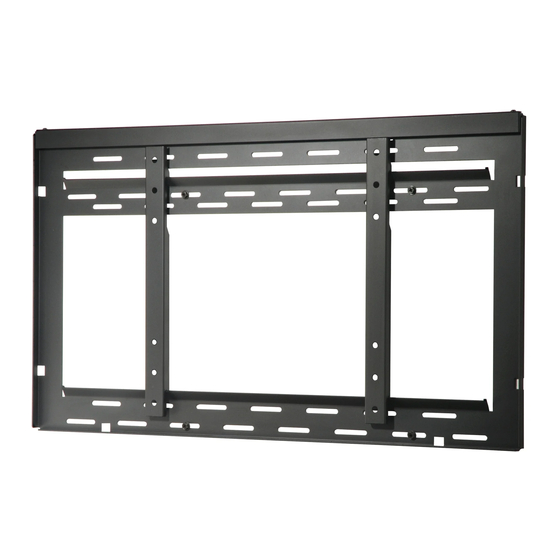

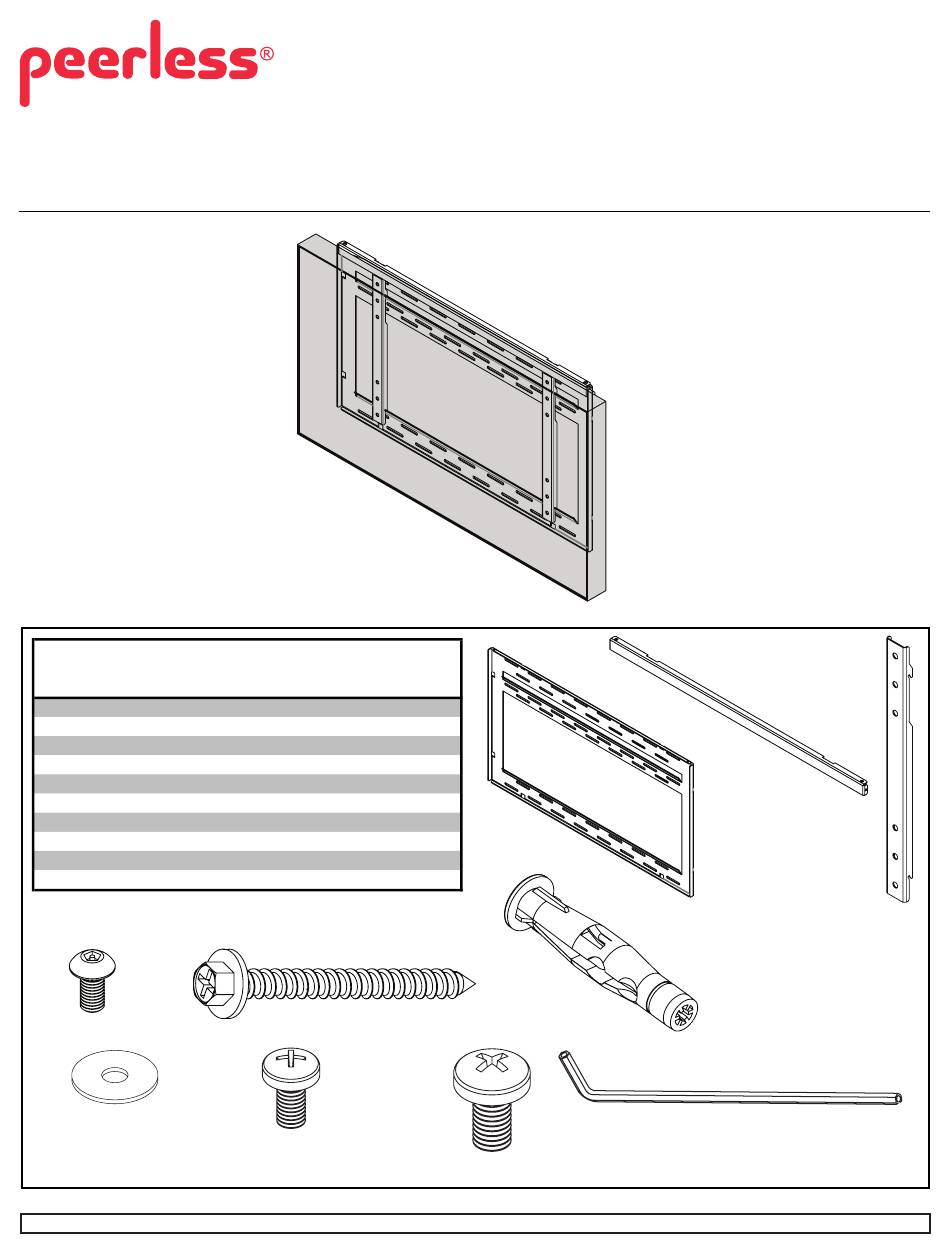

Installation and Assembly:
Wall Mount
Model: DS-VW650

Parts List

Description
A wall plate
B lock bracket
C vertical bracket
D M5 x 10 mm socket pin Type F screw
E #14 x 2.5" hex head wood screw
F concrete anchor
G 4 mm allen wrench
H nylon shoulder washer
I
M6 x 12 mm phillips screw
J M8 x 15 mm phillips screw
D
E
H
Visit the Peerless Web Site at www.peerlessmounts.com
Qty.
Part #
1
145-1199
1
145-1201
2
145-1200
2
520-1164
6
5S1-015-C03
6
590-0320
1
560-9646
4
590-2233
4
5201128
4
520-9257
I
J
A
F
1 of 5
ISSUED: 09-24-10 SHEET #: 125-9146-2 (6-25-13)
B
G
C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-VW650 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PEERLESS DS-VW650

Summary of Contents for PEERLESS DS-VW650

  • Page 1 G 4 mm allen wrench 560-9646 H nylon shoulder washer 590-2233 M6 x 12 mm phillips screw 5201128 J M8 x 15 mm phillips screw 520-9257 1 of 5 ISSUED: 09-24-10 SHEET #: 125-9146-2 (6-25-13) Visit the Peerless Web Site at www.peerlessmounts.com...
  • Page 2 Drill six 5/32" (4 mm) dia. holes 2-1/2" (65 mm) deep. Make sure that the wall plate (A) is level, secure it using six #14 x 2.5" wood screws (E) as shown below. 2 of 5 ISSUED: 09-24-10 SHEET #: 125-9146-2 (6-25-13) Visit the Peerless Web Site at www.peerlessmounts.com...

  • Page 3: Installation To Solid Concrete Or Cinder Block

    WARNING • When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" (35 mm) of actual concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1"...
  • Page 4 Figure. 3.1 4 of 5 ISSUED: 09-24-10 SHEET #: 125-9146-2 (6-25-13) © 2010 Peerless Industries, Inc. All rights reserved. Visit the Peerless Web Site at www.peerlessmounts.com All other brand and product names are trademarks or registered trademarks of their respective owners.
  • Page 5 HORIZONTAL ORIENTATION NOTE: ADDITIONAL WALL PLATES SOLD SEPARATELY ADDITIONAL DIAMOND CUT WALL PLATE MOUNTED WALL PLATE MOUNTED WALL PLATE ROUND CUT ADDITIONAL WALL PLATE 5 of 5 ISSUED: 09-24-10 SHEET #: 125-9146-2 (6-25-13) Visit the Peerless Web Site at www.peerlessmounts.com...
